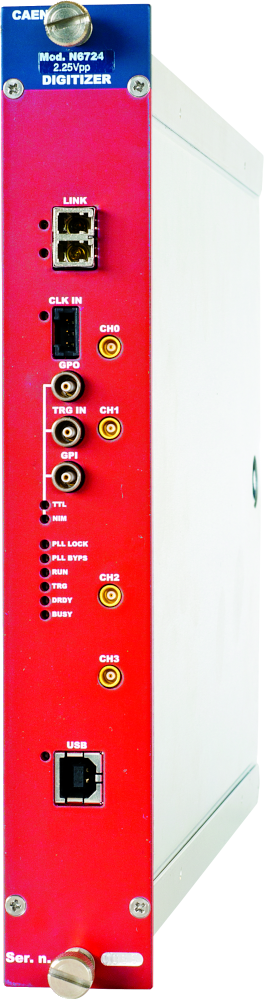

N6724
2/4 Channel 14 bit 100 MS/s Digitizer
Features
- 14 bit @ 100 MS/s
- Analog input on MCX coaxial connector (50 Ω, single-ended)
- 2/4 channels, NIM module
- 2.25 Vpp single-ended input range (500 mVpp & 10 Vpp on request) with programmable DC offset
- Sampling rate decimation factor (Waveform Recording firmware only)
- Algorithms for Digital Pulse Processing:
- Pulse Height Analysis (DPP-PHA)
- Dynamic Acquisition Window (DPP-DAW)
- Zero Suppression (Waveform Recording Firmware)
- Time-stamped Waveform and List
- USB and Optical Link communication interfaces
- Multi-board synchronization features
- Daisy chain capability
- Compliant with CoMPASS, MC2Analyzer, DPP-DAW Demo Software, CAENScope, CAEN WaveDump, C and LabVIEW libraries
Overview
The N6724 is a digitizer able to record waveforms along with performing advanced algorithms for online digital pulse processing (DPP) of pulse height analysis and dynamic acquisition window.
Data is read by a Flash ADC, 14-bit resolution and 100 MS/s sampling rate, which is well suited for high-resolution detectors as Silicon, HPGe or inorganic scintillators like NaI or CsI coupled with Charge Sensitive Preamplifiers. In the waveform recording mode, algorithms of zero suppression are also implemented to reduce the data throughput. The acquisition can be channel independent and it is possible to make coincidence/anti-coincidence logic among different channels and external veto/gating. Multiple boards can be synchronized to build up complex systems.
In the case of DPP mode, data can be saved in time-stamped list mode to support higher input rates and improve the throughput performances. Piled-up events can be rejected or saved for offline analysis. The acquisition in DPP-PHA mode is fully controlled by the CoMPASS and MC2Analyzer software, which manage the algorithm parameters, build the plots and saves the relevant energy and time spectra. In the case of waveform recording mode, the user can take advantage of the CAENScope and WaveDump software to access and save the waveforms. For DPP-DAW mode, a c demo fully controls the acquisition, data plotting and saving.
Libraries and demo software in C and LabView are available for integration and customization of specific acquisition systems.
The N6724 comes in a NIM form factor with 2 or 4 input channels. The communication to and from the board is provided through USB and Optical Link interfaces.
Technical Specifications
- GENERAL
Form Factor: 1-unit wide NIM
Weight: 870 g
- ANALOG INPUT
Channels: 2/4 channels single-ended
Bandwidth: 40 MHz
Impedance: 50 Ω
Connector: MCX
Full-Scale Range: 2.25 Vpp (default) 0.5 Vpp and 10 Vpp (on request)
Offset: Programmable DAC for DC, offset adjustment in the full range
Abs Max Rating: @2.25 Vpp: 6 Vpp (with Vrail max +6 V or –6 V for any DAC offset value)
- DIGITAL CONVERSION
Resolution: 14 bits
Sampling Rate:
100 MS/s simultaneously on each channel
16.1 MS/s minimum by hardware down-sampling (see AN6308)
781 kS/s minimum by firmware decimation (Waveform recording firmware only)
- SYSTEM PERFORMANCES
ENOB: 11.89 (64 kS Buffer)
SINAD: 73.85 dB
THD: 87.8 dB
SFDR: 93.5 dB
SIGMA: 1.09 LSB rms (64 kS buffer, open input)
- ADC CLOCK GENERATION
- Clock source: internal/external
- Onboard programmable PLL provides generation of the main board clocks from an internal (50 MHz local Oscillator) or external (front panel CLK-IN connector) reference
- DIGITAL I/O
- CLK-IN (AMP Modu II)
AC coupled differential input clock LVDS, ECL, PECL, LVPECL, CML (single ended NIM/TTL available by CAEN adapter)
Jitter <100 ppm requestedGPO (LEMO)
General purpose digital output
NIM/TTL, Rt = 50 Ω
GPI (LEMO)
General purpose digital input
NIM/TTL, Zin = 50 ΩTRG-IN (LEMO)
External trigger digital input
NIM/TTL, Zin = 50 Ω
- ACQUISITION MEMORY
- 512 kS/ch (5 ms @ 100 MS/s) or 4 MS/ch (40 ms @ 100 MS/s) Multi Event Buffer divisible into 1 ÷ 1024 buffers
- Independent read and write access
- Programmable event size and pre/post-trigger
- TRIGGER
- Trigger Source
– Self-trigger: channel over/under threshold for either Common or Individual (DPP only) trigger generation
– External-trigger: Common by TRG-IN connector
– Software-trigger: Common by software command
Trigger Propagation
GPO digital outputTrigger Time Stamp
– Waveform Recording: 31-bit counter, 20 ns resolution, 21 s range; 48-bit extension by firmware
– DPP-PHA: 30-bit counter, 10 ns resolution, 64-bit extension by software
– DPP-DAW: 31-bit counter, 10 ns resolution, 21 s range; 64-bit extension by software
- SYNCHRONIZATION
- Clock Propagation
One-to-many: clock distribution from DT4700 to CLK-IN connectorAcquisition Synchronization
Sync Start/Stop through digital I/O (TRG-IN input, GPO output)Trigger Time Stamp Alignment
By GPI input connector
- ADC & MEMORY CONTROLLER FPGA
One Altera Cyclone EP1C20 per channel
- COMMUNICATION INTERFACE
USB: USB 2.0 compliant Transfer rate up to 30 MB/s
Optical Link: CAEN CONET proprietary protocol, up to 80 MB/s transfer rate
Daisy chainable: it is possible to connect up to 8 ADC modules to a single Optical Link Controller (Mod.A2818/A3818/A4818)
- FIRMWARE
Waveform Recording Firmware: Free firmware for waveform recording
Upgrades: Firmware can be upgraded via Optical Link or USB
DPP Firmware: Paid firmware for Digital Pulse Processing: DPP-PHA, and DPP-DAW
- SOFTWARE
Libraries: General-purpose C and LabVIEW Libraries
Readout Software: CAEN WaveDump, CAENScope, CoMPASS, MC2Analyzer, DPP-DAW Demo software
Configuration Tools: CAEN Upgrader for Firmware upgrade, Direct Register R/W, Example codes
- POWER CONSUMPTIONS
3.9 A @ +6 V
90 mA @ -6 V
