EASY – Radiation & Magnetic Field Tolerant is CAEN’s high- and low-voltage power supply solution for places where radiation or stray magnetic fields rule out conventional power supplies.
Why EASY?
The LHC experiments needed power supplies that could sit close to the detector, where the electronics are exposed to high radiation doses and strong stray magnetic fields. To meet that need, CAEN developed a dedicated product line built from radiation-tolerant and magnetic-field-tolerant components. It operates safely and reliably in these hostile areas and performs just as well in normal conditions. This patented technology is the basis of every EASY module.
EASY is widely used across the LHC experiments. More than 7,500 units, with about 200,000 sub-boards, have been deployed so far.
System architecture
The EASY power supplies go directly in the hostile area. Control stays remote, in the safe area, through the R6060 EASY Branch Controller. The R6060 is a standalone unit that takes one 19″ rack unit, so no CAEN HV mainframe is needed.
The R6060 is the interface between the Detector Control System and the EASY boards. Each R6060 controls up to 6 crates, either EASY5/6000 or the previous-generation EASY3000, over a CAN-bus-based protocol. A built-in web tool handles crate configuration and lets you set and control every EASY channel directly from the Branch Controller.

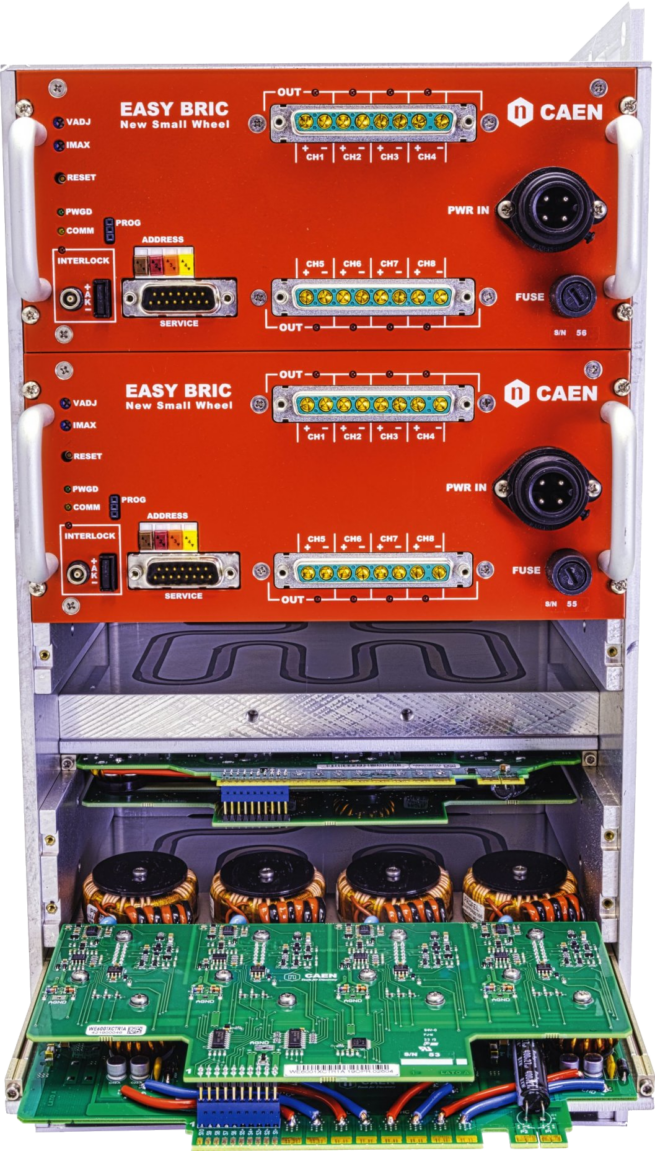

EASY BRIC
For EASY BRIC systems, the A1660 Branch Controller is a single-slot board for the SY4527 and SY5527 mainframes. It connects to the EASY BRIC modules over RS-485 and maps their channels onto the mainframe slot it occupies. Because it sits next to standard HV/LV boards, one mainframe can serve several applications at once.
Wide output range
The EASY family can power the entire front end in the hostile area from a single system. HV boards cover 100 V to 12 kV for detector bias. LV boards deliver low voltages, typically up to 8 V, at up to 100 A per channel, mostly with floating outputs and remote sensing to compensate for cable drops. Higher-bus 8–14 V boards and dedicated intermediate converters feed the on-detector DC/DC stages. The EASY6000 line adds custom solutions developed for specific LHC experiments. All channels share the same protections and are managed with the same control software, which keeps the setup simple and cost-effective.
Magnetic field: up to 0.6 T
Radiation:
up to 1·1012 p/cm2
up to 1·1013 n/cm2
up to 200 Gy Total Integrated Dose
Radiation and magnetic-field tolerant crates hosting EASY boards directly in the experimental area, close to detectors and front-end electronics.
Standalone (R6060C) or single-width SYx527 boards (A1676A, A1660) for remote control of air-cooled EASY3000/6000 and water-cooled EASY BRIC systems from a safe area.

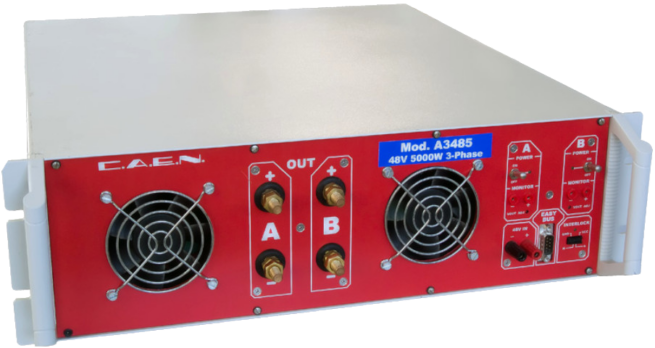

Three-phase AC/DC converters providing primary DC power for EASY systems, from 48 V crate supplies to high-power NGPS units up to 10 kW.
Radiation and magnetic-field tolerant low-voltage boards powering front-end electronics up to 16 V, from 32-channel high-density to 100 A high-current models.
Radiation and magnetic-field tolerant high-voltage boards, designed to bias a wide range of detectors from 100 V to 12 kV.
Custom radiation and magnetic-field tolerant power supply systems for HL-LHC detector upgrades, including the CMS Inner and Outer Tracker.
Radiation and magnetic-field tolerant 128-channel DAC boards, designed for threshold setting and slow control of front-end electronics in hostile environments.
Radiation and magnetic-field tolerant 128-channel ADC boards with differential inputs on flat cable connectors, designed for detector monitoring in hostile environments.
