2 Slot Switching 750 W Mini Crate
- Cost effective, compact solution
- 12 A @ ±6 V, 12A @ ±12 V and 6 A @ ±24 V output
- 2 air cooled NIM slots
- Ideal for small experiments, laboratories and universities
- Portable: 170 x 310 x 125 mm3 (WxHxD); 5 kg weight
- Equipped with long-life NIM connectors
- Wide AC input voltage range: 100 Vac to 240 Vac
- Active PFC
- Extra low noise switching power supply
- ON/OFF switch
- Power good and stand-by leds
- Short circuit protection

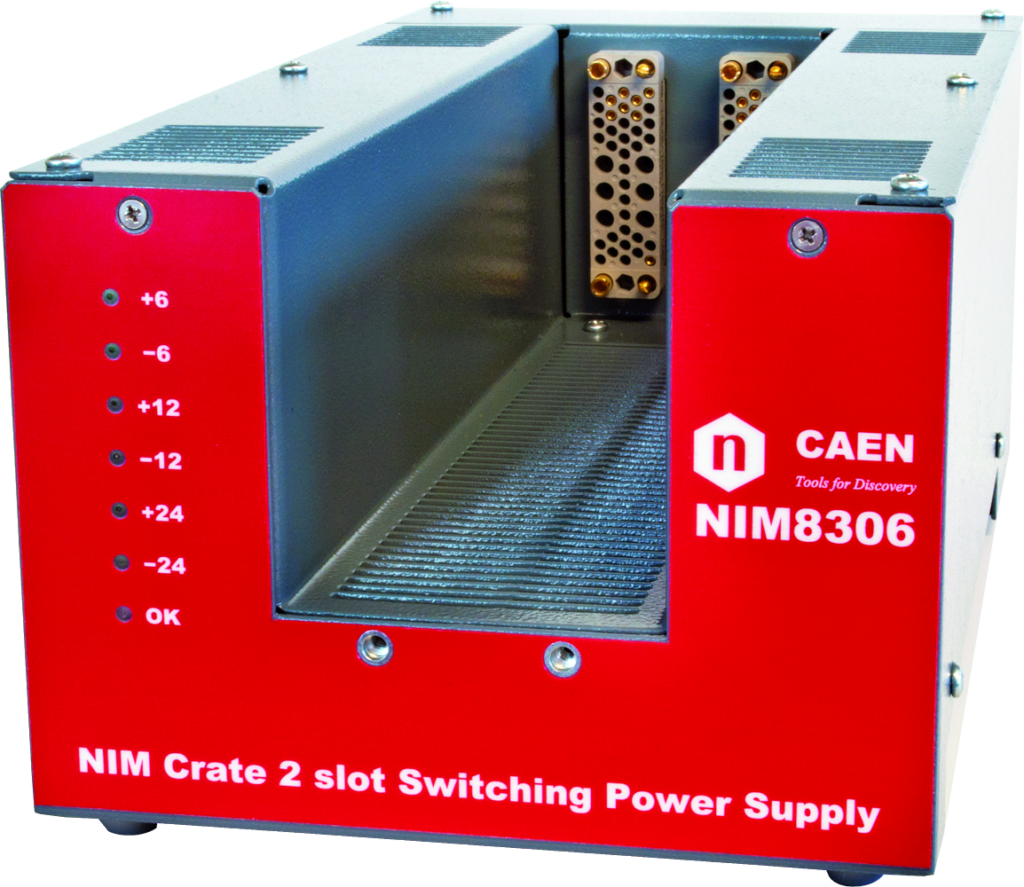

The CAEN Mod. NIM8306 is a 2 slot NIM crate with switching power supplies; the unit is provided with three ventilation fans.
The NIM8306 delivers 12A @ ±6V, 12A @ ±12V and 6A @ ±24V.
Safety features include: short circuit protection, Over / Under voltage protection, Over temperature protection.
The Unit is powered by 100 ÷240 Vac, 50 ÷ 60 Hz, power factor 0.98% (230VAC).
2 Slot Switching 750 W Mini CrateProduct page
|Name||File extension||File size||Revision||Last update|
|NIM8305-NIM8306 2 Slot Switching NIM Mini Crates||366.36 kB||4||December 2nd, 2019|
|Safety Information and Product Support Service (ENG/ITA)||1.84 MB||-||October 24th, 2022|
Compare with Powered Crates.
|WNIM8306XAAA||NIM8306 - NIM crate, 2 slot, Switching PS (±6V 12A, ±12V 12A, ±24V 6A) RoHS|
