2 Slot Switching 450 W Mini Crate
- Cost effective, compact solution
- 12A @ ±6 V and 12A @ ±12 V output
- 2 air cooled NIM slots
- Ideal for small experiments, laboratories and universities
- Portable: 170 x 310 x 125 mm3 (WxHxD); 5 kg weight
- Equipped with long-life NIM connectors
- Wide AC input voltage range: 100 Vac to 240 Vac
- Active PFC
- Extra low noise switching power supply
- ON/OFF switch
- Power good and stand-by leds
- Short circuit protection

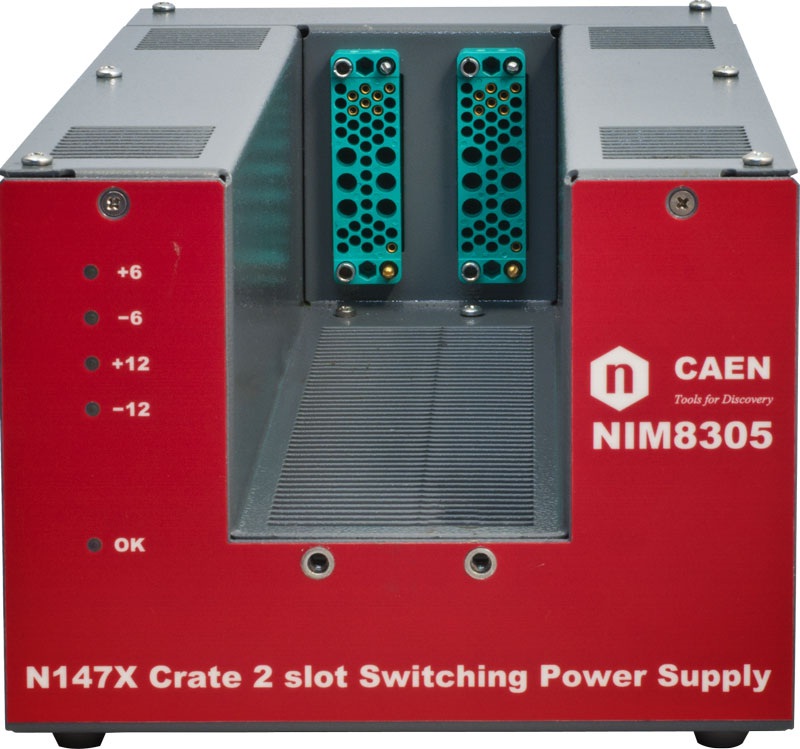

The CAEN Mod. NIM8305 is a 2 slot NIM crate with switching power supplies; the unit is provided with three ventilation fans.
The NIM8305 delivers 12A @ ±6V and 12A @ ±12V.
Safety features include: short circuit protection, Over / Under voltage protection, Over temperature protection.
The Unit is powered by 100 ÷240 Vac, 50 ÷ 60 Hz, power factor 0.98% (230 VAC).
2 Slot Switching 450 W Mini CrateProduct page
|Name||File extension||File size||Revision||Last update|
|NIM8305-NIM8306 2 Slot Switching NIM Mini Crates||366.36 kB||4||December 2nd, 2019|
|Precautions for Handling Storage Installation (ENG/ITA)||179.29 kB||-||April 10th, 2019|
Compare with Powered Crates.
|WNIM8305XAAA||NIM8305 - NIM crate, 2 slot, Switching PS (±6V 12A, ±12V 12A) RoHS|
