7U CRATE VME/NIM 8 slot VME64 365W, 5 slot NIM 150W
- 19″ x 7U (6+1) enclosure mixed VME/NIM crate
- VME section
- 8 slot for 6U x 160mm VME modules
- 365W Power Supply
- Low noise Power Supply (365 W)
- VME64 J1/J2 monolithic backplane
- NIM section
- 7 slot NIM (5 free slots)
- 2 Slot linear power supply (150 W)
- 1U space for Fan Unit
- Short circuit protection
- Over / Under voltage protection
- Over temperature protection

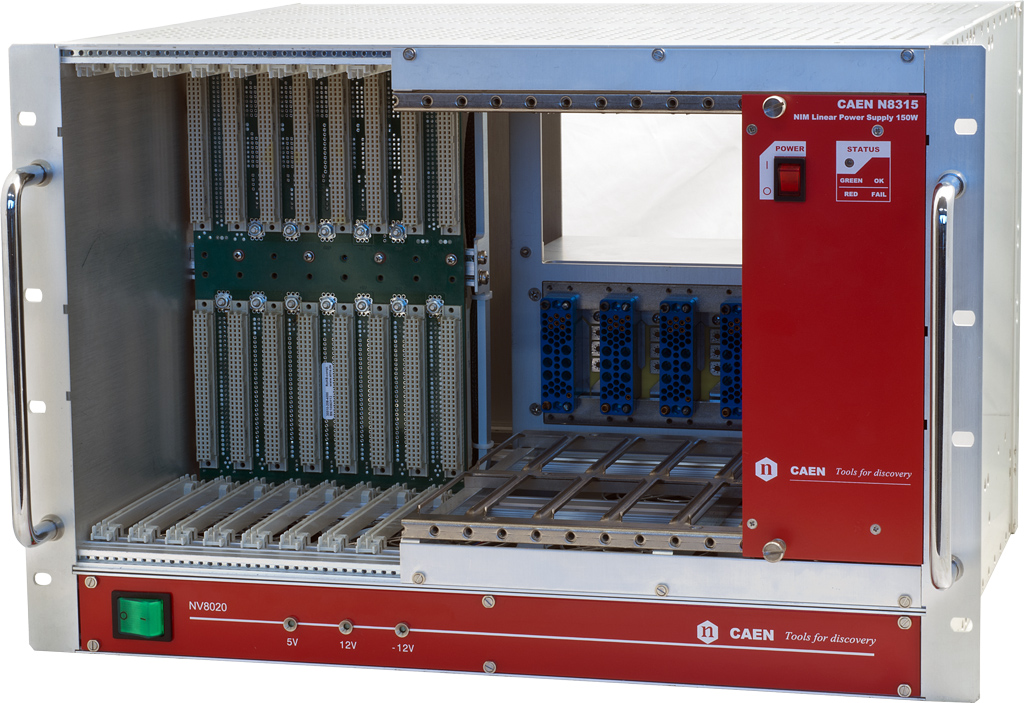

The CAEN Mod. NV8020A is a 19″ x 7U 84TE mixed VME / NIM crate equipped with a 1U common fan unit.
The VME section features 8 slots suitable for 6Ux160mm boards, with VME64 compliant backplane. The section is powered by universal AC input Power Supply. The Power distribution is 25 A @+5V, 10 A @-12V, 10 A @+12V.
The NIM section consists of 7 NIM slots (5 free) provided with pluggable 150W power supply. The Unit is powered by 110 or 220 Vac, 50 ÷ 60 Hz. On the front panel the status of power supply is indicated by green/red LED. The Unit is powered by 220 Vac or 115 Vac, 50 ÷ 60 Hz.
7U CRATE VME/NIM 8 slot VME64 365W, 5 slot NIM 150WProduct page
|Name||File extension||File size||Revision||Last update|
|NV8020A - 7U CRATE VME/NIM 8 slot VME64 365W, 5 slot NIM 150W||464.31 kB||4||October 27th, 2015|
|Precautions for Handling Storage Installation (ENG/ITA)||179.29 kB||-||April 10th, 2019|
Compare with Powered Crates.
|WN8020AXAAAA||NV8020A - VME/NIM 7U crate, 8 slot VME64 365W, 5 slot NIM 150W RoHS|
