NIM8304

7U 12 slot smart fan unit Switching 2000 W Crate

Features

  • 19″ x 7U (5+2) enclosure
  • 12 NIM slot
  • Pluggable Switching Power Supply up to 2000W
  • 92 ÷264 Vac, 50 ÷ 60 Hz input
  • Equipped with long-life NIM connectors
  • Pluggable 2U Fan Unit
  • Short circuit protection
  • Over / Undervoltage protection
  • Over temperature protection
  • CAN bus, Ethernet, USB and RS232 interface for remote monitoring and control
  • SBC controlled with graphic OLED colour display
  • Ergonomic pointer
  • Easy firmware upgrading
  • Libraries, Demos (C and LabView) and Software tools for Windows and Linux

Overview

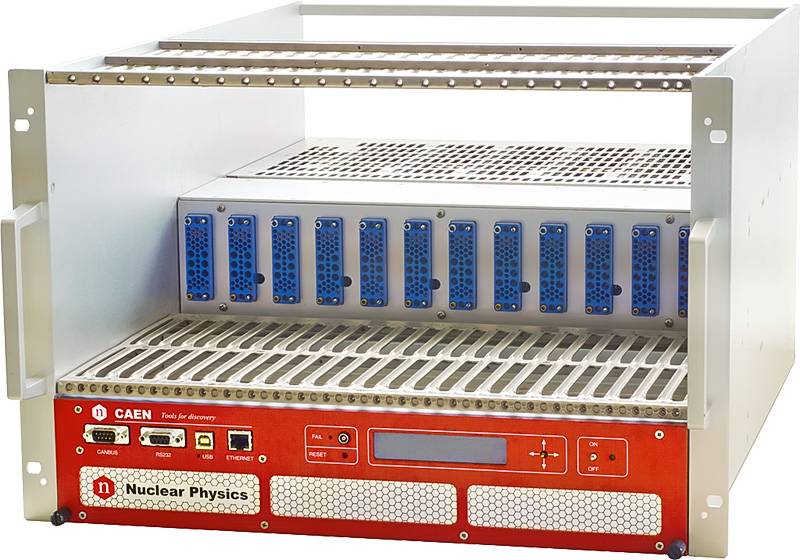

The CAEN Mod. NIM8304 is a 7U (5+2) full size NIM crate (19″-12 slot) with pluggable low noise switching power supply. The output power is up to 2000W (2000 W @ 220 Vac, 1000 W @ 100 Vac). The units are ventilated with pluggable 2U fan unit. Safety features include: Short circuit protection, Over / Under voltage protection, Over temperature protection.
Remote monitoring and control take place through CAN bus, Ethernet, USB and RS232 interfaces. The crate is SBC controlled via graphic OLED display. User friendly control software completes the NIM 83XX features.
The Unit is powered by 92 ÷264 Vac, 50 ÷ 60 Hz, power factor 0.98% (230VAC).

Technical Specifications

Mechanics

19″ x 7U (5+2) bin, 12 slot, 2U space for fan tray

Mains input

92 ÷ 264 Vac, 50 ÷ 60 Hz,
power. fact. > 0.98 % (230 VAC)

Maximum Total Output Power

1100 W @ 100 Vac
2200 W @ 211 Vac

Interface

RS 232, USB (2.0), CAN bus, Ethernet

Fuse

External 16 A, type B/C

Output power

EU

  • 90 A @ ±6 V
  • 23 A @ ±12 V
  • 11 A @ ±24 V

US

  • 45 A @ ±6 V
  • 11.5 A @ ±12 V
  • 5.5 A @ ±24 V
Isolation

CE acc. to EN 61010

Power requirements

1450 W @ 100 Vac ; 2850 W @ 211 Vac

Noise and ripple

±6 V < 10 mVpp, < 2 mVrms Typ: 6.0 mVpp, 1.5 mVrms
±12 V < 15 mVpp, < 2 mVrms Typ: 10 mVpp, 1.0 mVrms
±24 V < 15 mVpp, < 2 mVrms Typ: 10 mVpp, 1.0 mVrms

Output Impedance

0.3 mohm static

Output Current Characteristic

Foldback (Isc < 3 A Imax = I nominal + 15%) and Trip Off

Status control

Alarm signalled by FAIL LED, FAIL signal and buzzer
Alarm reason displayed on FAN unit OLED display and managed by remote control

Temperature sensors

Power Supply: nr. 4 (3 thermal switches, 1 thermal sensor)
FAN Unit: nr. 2
Backplane: nr. 6 (optional)

Output Voltage Characteristic

dual tracking for all ±DC outputs
Soft start
DC output calibration (manually)

Over Voltage Protection

Trip Off when the output voltage > 103% ÷ 120% (programmable) of set voltage

Under Voltage Protection

Trip Off when the output voltage < 80% ÷ 97% (programmable) of set voltage

Over Current Protection

Trip Off when the current > programmable Iset value

Over Temperature Protection

Trip Off when temperature of a single Power Supply block > 90° C Signaled:

  • temperature FAN Unit > 50°C
  • temperature Power Supply Control > 65° C
Cooling Airflow

540 m³/h (at maximum fan speed)

Operation

0 ÷ 40°C without derating

Firmware

NIM8304 firmware can be upgraded via Ethernet

NIM8304
