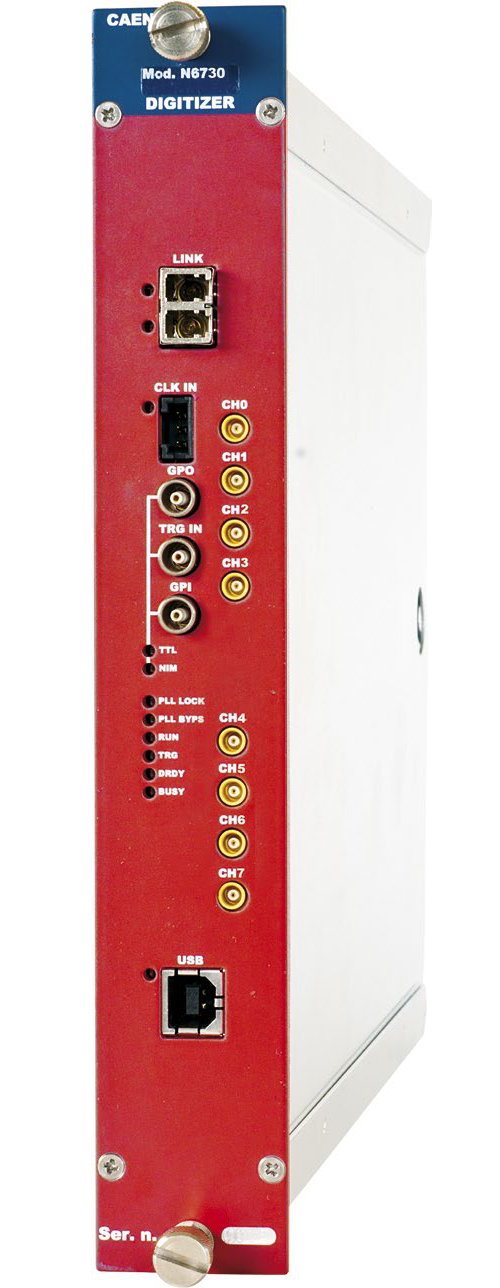

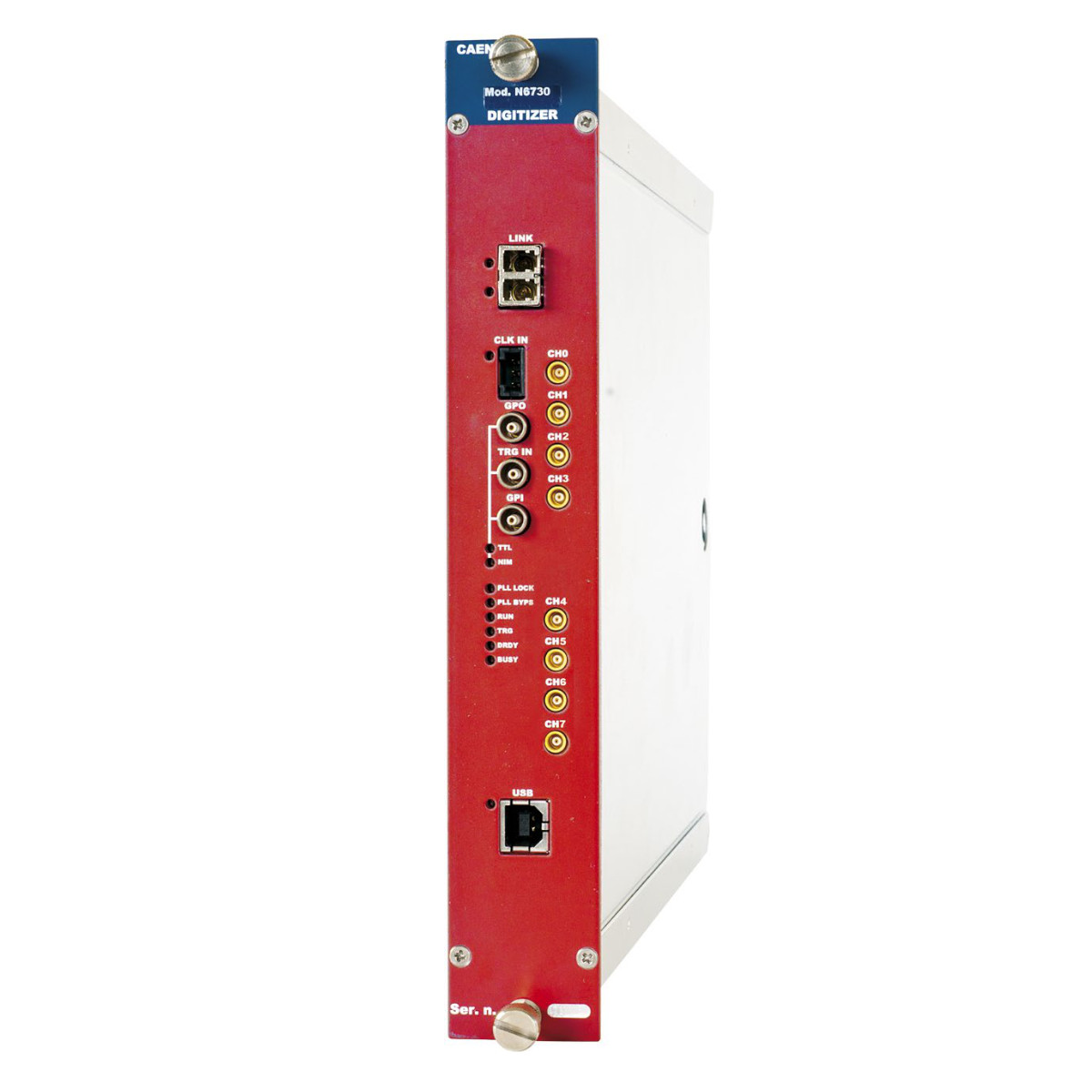

N6730 / N6730S

8 Channel 14-bit 500 MS/s Digitizer

Features

Overview

The N6730S is a digitizer capable of recording waveforms along with performing advanced algorithms for online digital pulse processing (DPP) (Free Trial). Utilizing DPP Firmware, users can acquire quantitative physical parameters (Integrated Charge, Pulse Shape Discrimination with very fine time resolution, Pulse Height Analysis) as well as read out waveforms with automatic pulse identification and baseline suppression on channel basis (Zero-Length Encoding and Dynamic Acquisition Window). The wide range of DPP algorithms supported by the N6730S make it a “must-have” for any type of nuclear physics application.

The N6730S (previously N6730) has also been upgraded, introducing a larger FPGA to accommodate more complex DPP algorithms and a new A/D converter for better stability which does not require temperature-related calibration.

Input signals are read by a Flash ADC, 14-bit resolution and 500 MS/s sampling rate, which is well suited for mid fast signals as the ones coming from liquid or inorganic scintillators coupled to PMTs or Silicon Photomultipliers, but also for high precision detectors as Silicon or HPGe coupled with charged sensitive preamplifier. The acquisition can be channel independent and it is possible to make coincidence/anti-coincidence logic among different channels and external veto/gating. Multiple boards can be synchronized to build up complex systems. In the case of DPP mode, data can be saved in time-stamped list mode to support higher input rates and improving the throughput performances. Piled-up events can be rejected or saved for offline analysis. The acquisition in DPP mode is fully controlled by the CoMPASS and MC2Analyzer software, which manage the algorithm parameters, build the plots and saves the relevant energy, time, and PSD spectra. In the case of waveform recording mode, the user can take advantage of the CAENScopeand WaveDump software to access and save the waveforms. Libraries and demo software in C and LabView are available for integration and customization of specific acquisition systems.

The N6730S comes in a NIM form factor, with 8 input channels. The communication to and from the board is provided through the USB and Optical Link interfaces.

Technical Specifications

GENERAL

Form Factor: 1-unit wide NIM

ANALOG INPUT

Channels: 8 channels single ended
Impedance: 50 Ω
Connector: MCX
Full Scale Range: 0.5 or 2 Vpp (SW selectable)
Bandwidth: 250 MHz
Offset: Programmable DAC for DC offset adjustment in the full scale range

DIGITAL CONVERSION

Resolution: 14 bits
Sampling Rate: 500 MS/s Simultaneously on each channel

SYSTEM PERFORMANCES

N6730Sx Baseline RMS Noise (open inputs)
@ 2 Vpp: 2.6 LSB = 312 uV
@ 0.5 Vpp: 3.4 LSB = 102 uV

ADC Clock Generation
  • Clock source: internal/external
  • Onboard programmable PLL provides generation of the main board clocks from an internal (50 MHz local Oscillator) or external (front panel CLK-IN connector) reference
DIGITAL I/O
CLK-IN (AMP Modu II)
AC coupled differential input clock LVDS, ECL, PECL, LVPECL, CML (single ended NIM/TTL available by CAEN adapter)
Jitter <100 ppm requested
GPO (LEMO)
General purpose digital output
NIM/TTL, Rt = 50 Ω

GPI (LEMO)

General purpose digital input
NIM/TTL, Zin = 50 Ω
TRG-IN (LEMO)
External trigger digital input
NIM/TTL, Zin = 50 Ω
ACQUISITION MEMORY
  • 640 kS/ch (1.25 ms @ 500 MS/s) or 5.12 MS/ch (10 ms @ 500 MS/s) Multi-event Buffer divisible into 1 ÷ 1024 buffers
  • Independent read and write access
  • Programmable event size and pre/post-trigger
TRIGGER
Trigger Source
Self-trigger: channel over/under threshold for either Common or Individual (DPP only) trigger generation
External-trigger: Common by TRG-IN connector
Software-trigger: Common by software command

Trigger Propagation

GPO digital output
Trigger Time Stamp
Waveform Recording: 31-bit counter, 16 ns resolution, 17 s range; 48-bit extension by firmware
DPP-PSD: 47-bit counter, 2 ns resolution, 78 h range; 10-bit and 2 ps fine time stamp with digital CFD
DPP-PHA: 47-bit counter, 2 ns resolution, 78 h range
DPP-DAW: 48-bit counter, 2 ns resolution, 156 h range
DPP-ZLEplus: 48-bit counter, 16 ns resolution, 625 h range
SYNCHRONIZATION
Clock Propagation
One-to-many: clock distribution from DT4700 to CLK-IN connector
Acquisition Synchronization
Sync Start/Stop through digital I/O (TRG-IN input, GPO output)
Trigger Time Stamp Alignment
By GPI input connector
ADC & Memory Controller FPGA
N6730
Altera Cyclone EP4CE30
(one FPGA serves 4 channels)
N6730S
Intel/Altera Arria V GX
(one FPGA serves 4 channels)
COMMUNICATION INTERFACES
USB
USB 2.0 compliant
Transfer rate up to 30 MB/s
Optical Link
CAEN CONET proprietary protocol, up to 80 MB/s transfer rate
Daisy chainable: it is possible to connect up to 8/32 ADC modules to a single Optical Link Controller (Mod.A2818/A3818)
FIRMWARE
Waveform Recording Firmware
Free firmware for waveform recording

Upgrades

Firmware can be upgraded via Optical Link or USB
DPP Firmware
Paid firmware for Digital Pulse Processing: DPP-PSD, DPP-PHA, DPP-ZLEplus, and DPP-DAW
POWER CONSUMPTIONS
4.9 A @ +6V
250 mA @ -6V

Compare

Compare with Digitizers.

Loading...

Accessories

A654
Cable assembly LEMO 00 male to MCX male – 1 m
A659
Cable assembly BNC male to MCX male – 1 m
AI2700
Optical Fiber Series
A318
Adapter for Clock signal FISCHER S101A004 male to 3-pin AMPMODU IV female – 10 cm
A317
Cable assembly for Clock distribution 3-pin AMPMODU IV female terminations – 18 cm / 25cm
A4818
USB 3.0 to CONET2 Adapter
A5818
PCI Express Gen 3 CONET2 Controller

Ordering Options

Code Description
WN6730BXAAAA N6730B - 8 Ch. 14 bit 500 MS/s Digitizer: 5.12MS/ch, CE30, SE  (Obsolete) RoHS
WN6730XAAAAA N6730 - 8 Ch. 14 bit 500 MS/s Digitizer: 640kS/ch, CE30, SE  (Obsolete) RoHS
WN6730SBXAAA N6730SB - 8 Ch. 14 bit 500 MS/s Digitizer: 5.12MS/ch, Arria V GX, SE   RoHS
WN6730SXAAAA N6730S - 8 Ch. 14 bit 500 MS/s Digitizer: 640kS/ch, Arria V GX, SE   RoHS
