CAEN FELib Library

High level library for CAEN Digitizers 2.0

Datasheet
Photo of CAEN FELib Library

  • Set of functions for the control and use of CAEN Digitizers 2.0 and CAEN Digitizer 1.0.

  • Available in C/C++ and Python for Windows and Linux OS.

  • Python Open Source project and examples available here.

  • Open-Source software (GNU Lesser General Public License 3).

  • New approach to access firmware with parameters, much easier to understand and use.

  • Multithread support.

CAEN Waveform digitizers x27xx introduce a new approach in the access to the firmware parameters, providing an abstraction of the register in the form of library parameters much easier to understand and use.

This new approach is meant to simplify the life of those users that are required to build their own DAQ system and software and so need to access the digitizer firmware parameters.

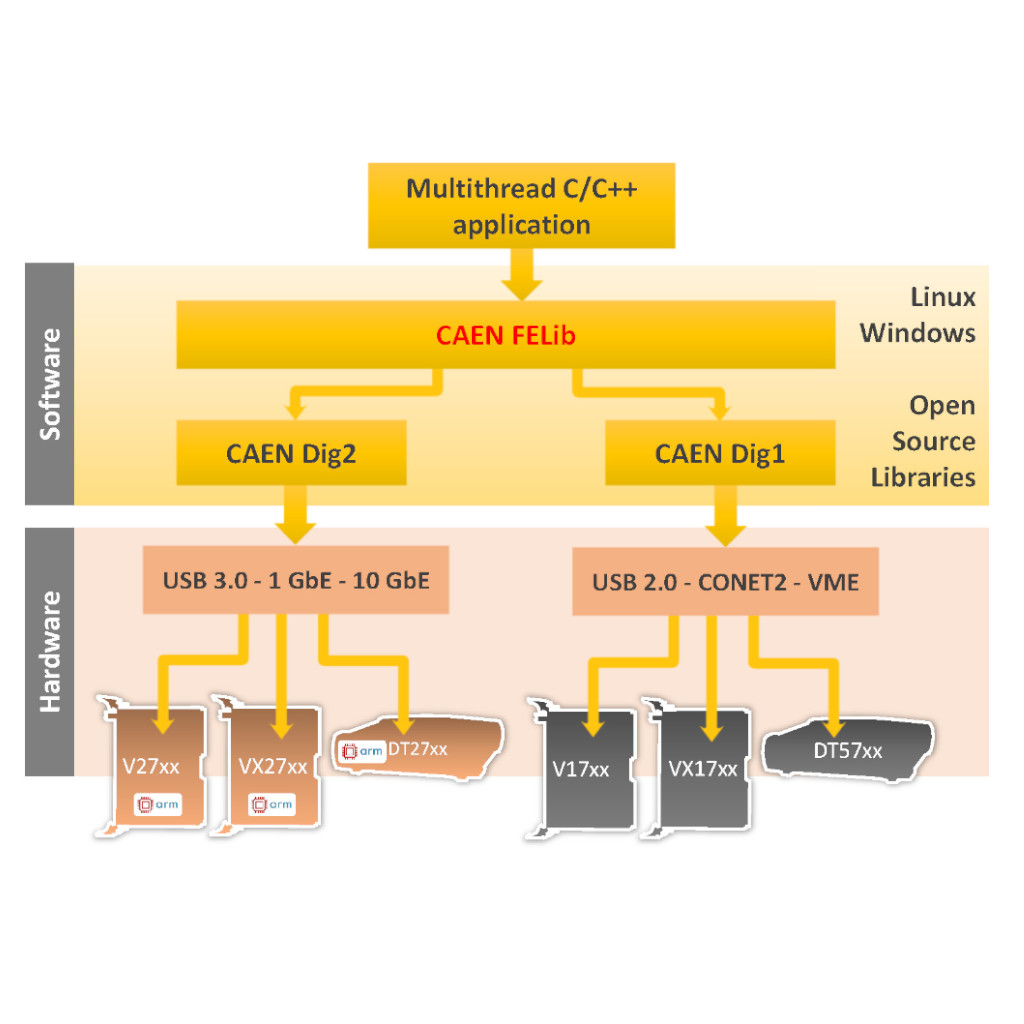

CAEN FELib can be used to control and acquire data from the new generation of CAEN digitizers. This library is just an interface and does not include support for any digitizer family. To use a digitizer, the user must also install the respective underlying CAEN Digitizers 2.0 library.

Supported Operating Systems

Windows, Linux (source code provided), Arm

Language

C, Python

Supported Products

Digitizers 2.0 (2740 family and 2745 family, 2730 family)
Digitizers 1.0

Additional Software Required

CAEN Digitizers 2.0
CAEN Digitizers 1.0

License

GNU Lesser General Public License 3
