DT2740

New

64 Channel 16 bit 125 MS/s Digitizer

Features

  • 16-bit @ 125 MS/s ADC
  • 64 analog inputs, differential or single-ended, on four 2mm 40-pin header connectors
  • 2Vpp input range, fixed Analog Gain x1
  • Wide range of applications (from Neutrino Physics & Dark Matter to Nuclear and Particle Physics to Spectroscopic Imaging)
  • Suited for signals from Semiconductor Detectors coupled with CSPs (Si, HPGe) or scintillators coupled with PMTs (NaI, CsI)
  • On-board firmware selection for different acquisition modes:
    • Scope mode (simultaneous raw waveform acquisition on common trigger)
    • DPP-PHA mode (pulse height and time acquisition on independent channel self-triggers)
    • Predisposition for other planned algorithms: QDC, PSD, CFD, DAW, ZLE, etc.
  • Multi-board synchronization and system building capabilities

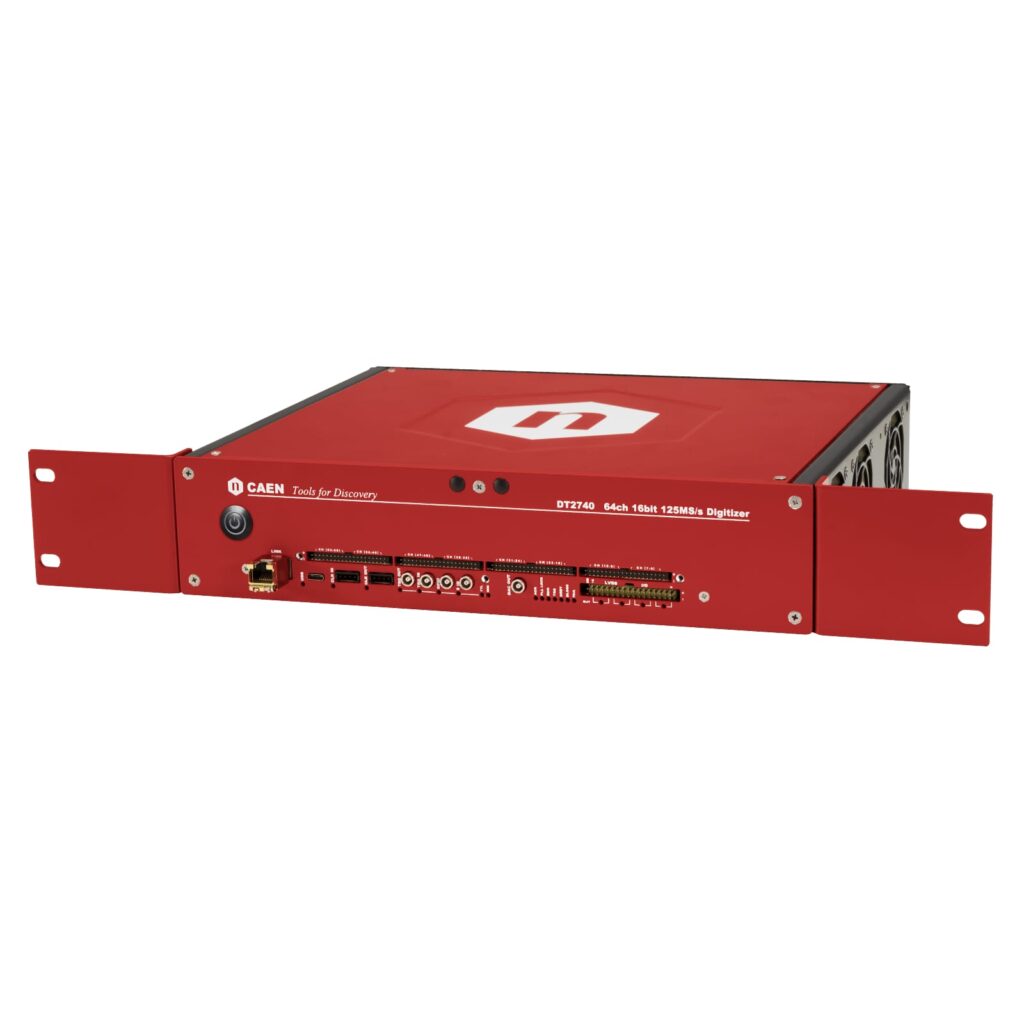

  • Rack mount brackets included

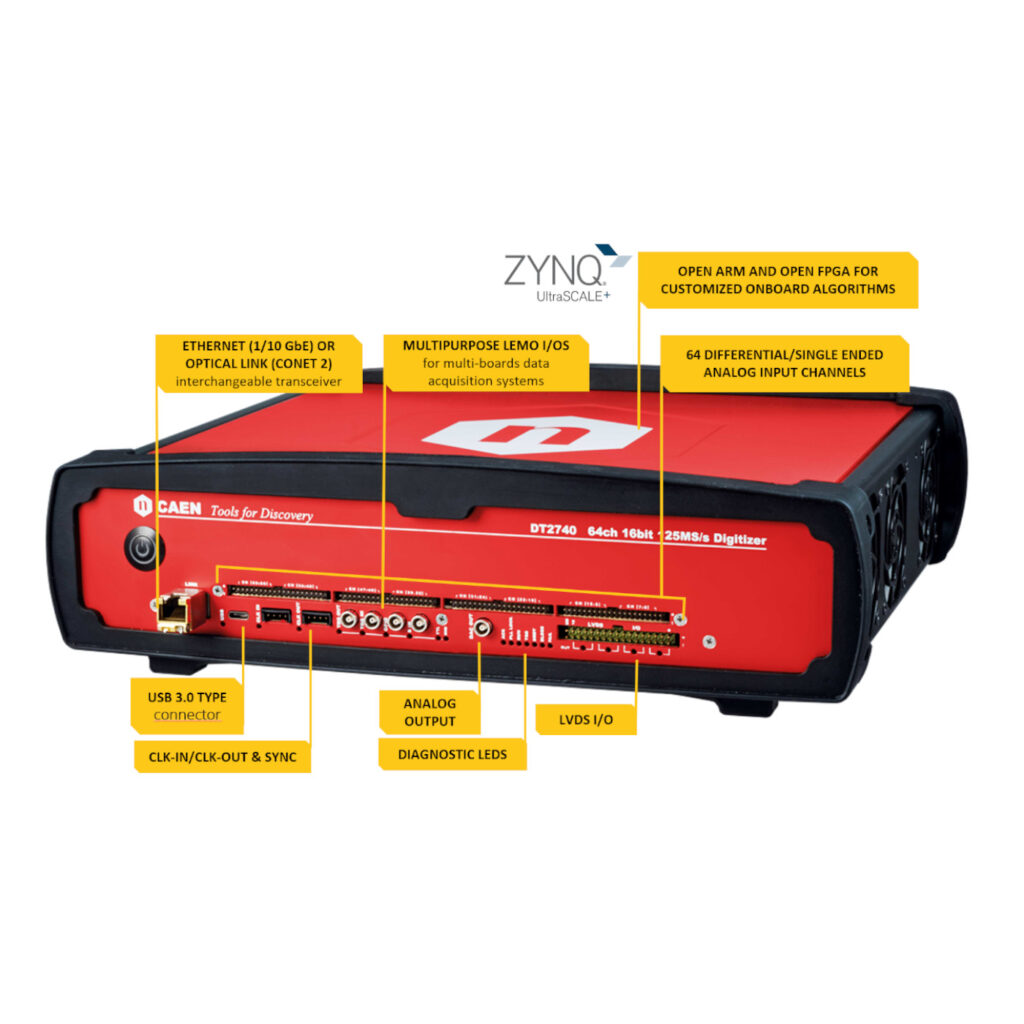

  • Front panel fully programmable I/Os (4 LEMO TTL/NIM and 16 LVDS)
  • Special 125MS/s 14bit DAC output (LEMO) for signal inspection, pulse generation, majority level
  • 2.5GB of Total Acquisition memory (DDR4)
  • On-board Zynq® UltraScale +™ MPSoC integrating an Arm®-based CPU running Linux®
  • Multi Interface: USB-3.0 and 1/10 GbE or CONET optical link (switchable on the same socket)
  • Fully supported by CoMPASS and WaveDump2 readout software (CoMPASS support is Coming Soon)
  • SDK for embedded Arm and host PC
  • Open FPGA architecture for pulse analysis algorithm customization

Overview

The DT2740 Digitizer is a 64-channel digital signal processor for radiation detectors in a Desktop form factor. It offers not only waveform digitization and recording but also Multi-Channel Analysis for nuclear spectroscopy using Silicon strip, segmented HPGe, Scintillation detector with PMTs, Wire Chambers, and others.

Independently for each of the 64 channels, the DT2740 can perform pulse height measurements (PHA), and other algorithms that will be gradually developed, such as constant fraction timing (CFD), charge integration (QDC) and pulse shape discrimination (PSD).
Each channel of the module digitizes the analog input, that can be the signal coming from a physics detector, with a 16 bit, 125 MS/s ADC. The sampled data are used to initiate the digital pulse processing sequence, managed in the FPGA at the firmware level. Different firmware types can be selected via software, according to the specific setup and acquisition mode.

  • Common trigger: all channels acquire simultaneously with a common trigger. The trigger can be fed externally or generated by a combination of individual channel discriminators. This mode is mainly intended for the acquisition of waveforms, like a digital oscilloscope. Options for zero suppression are available to remove not significant data.
  • Independent trigger: suited for trigger-less applications, where no global trigger is needed but each channel acquires waveforms upon its self-trigger which fires through a digital discriminator, independently of the others.
  • DPP: real-time processing in the FPGA allows for the extraction of physical parameters from the waveform (e.g. pulse height, charge, timestamp, PSD), well suited for high counting rate applications. It is yet possible to save both raw waves and parameters.

A template of the firmware is available for customers who want to personalize the acquisition to implement custom algorithms for pulse processing in the open FPGA. The user can have control of the data output information and customize the trigger logic to get several combinations of self-triggers and I/O signals to validate or discard the events.
Custom software can run on the onboard CPU for data reduction and analysis. Multi-board synchronization can be implemented via backplane or front panel easy-cabling options.
Fast readout options are available, like Ethernet 1Gb or 10Gb, USB3.0 (tested up to 280 MB/s), and optical link (CAEN Daisy Chainable Optical Link Protocol Coming Soon).

Technical Specifications

GENERAL
Form Factor

▪ 338 W x 98 H x 290 L mm³ (including connectors)

▪ 338 W x 98 H x 280 L mm³ (without connectors)

Weight

3120 g


ANALOG INPUT
Channels

64 channels
Differential on 2740 versions
Single-ended on 2740B versions

Impedance
50 Ω single-ended
100 Ω differential

Connector

Four 2mm 40-pin header male
Input adapters available

Full Scale Range
2 Vpp

Bandwidth (-3 dB)

50 MHz

Offset
Individual offset adjustable in the ±1.25V range

DIGITAL CONVERSION
Resolution

16 bits

Sampling Rate

125 MS/s (simultaneously on each input)


PERFORMANCE
ENOB

11.7 (Typ.)

RMS

3.9 LSB (≃ 120 µV) typical RMS


DIGITAL I/O
 CLK-IN

Two differential pairs:
▪ CLK: reference clock signal
▪ SYNC: synchronization signal (start/stop, T0, etc.)
AC-coupled LVDS, ECL, PECL, LVPECL, CML
Zdiff = 100 Ω
2.54mm 4-pin AMPMODU Mod II male connector

AC-coupled LVDS, ECL, PECL, LVPECL, CML
Zdiff = 100 Ω
2.54mm 4-pin AMPMODU Mod II male connector

CLK-OUT

Same functionalities as CLK-IN
Daisy chainable in multi-board synchronization
LVDS
2.54mm 4-pin AMPMODU Mod II male connector

LVDS I/O

16 differential pairs
Software programmable I/O (individual self-trigger outputs, trigger validations, Veto, Busy, Start, Stop, Pattern Input, etc.)
LVDS
Zdiff = 100 Ω (when set as inputs)
2.54mm 34-pin AMPMODU Mod II male connector

TRG-IN/TRG-OUT/GPIO/S-IN

General purpose I/Os
Software programmable (trigger, gate, veto, busy, etc.)
Sigle-ended TTL/NIM

  • TRG-IN/S-IN internally terminated with 50 Ω (Zin = 50 Ω)
  • TRG-OUT requires Rt = 50 Ω
  • GPIO as Input must be terminated with 50 Ω
  • GPIO as TTL Output requires Rt = 50 Ω
  • GPIO as NIM Output requires Rt = 50 Ω or 25 Ω

LEMO 00 male connector





DAC OUT

DAC output for signal inspection, pulse generation, majority level
14-bit Digital-to-Analog Converter (DAC)
125MS/s Update Rate
±1 V @ 50Ω load; ±2 V @ hi-Z load Output Range
LEMO 00 male connector

ACQUISITION MEMORY

2.5 GB total DDR4 memory size (20.971 MS/ch) divisible in multiple buffers
Maximum record length: ≃ 168 ms @ 125 MS/s (total memory size divided by 2)1

1 Value referred to the Scope firmware (minimum of two buffers admitted)



TRIGGER MODES
  • Common: all channels acquire simultaneously with the trigger (software, external or logic combination of self-triggers)
  • Individual: each channel acquires independently with its self-trigger
  • Correlated: the individual self-trigger of each channel is validated by the coincidence/anticoincidence logic between other self-triggers and/or external I/Os
SYNCHRONIZATION
Clock Propagation

Typical 62.5MHz frequency distributed by daisy chain
through CLK-IN/CLK-OUT or by fan-out to CLK-IN
Custom frequencies can be supported

Acquisition Start/Stop
Daisy chain or fan-out propagation through
CLK-IN/CLK-OUT or NIM/TTL, LVDS I/Os



Data Sync

Busy/Veto logic on LVDS I/Os or NIM/TTL I/Os for event building synchronization

Trigger Time Stamp

Zero from START or S-IN input
Resolution: 8 ns
Counter range: 48 bits
Full-scale range: ~625 h

Trigger Distribution

TRG-IN/TRG-OUT NIM/TTL LEMO I/Os (common trigger) or LVDS I/Os (common or individual trigger)

FIRMWARE

Firmware stored in the on-board Flash Memory and live rebootable by Web Interface

DPP Firmware

Implements the digital pulse processing algorithm:

  • DPP-PHA: Pulse Height Analysis
  • DPP-QDC: Charge Integration
  • DPP-PSD: Pulse Shape Discrimination
  • DPP-ZLE: Zero Length Encoding
  • DPP-DAW: Dynamic Acquisition Window
Scope Firmware

Firmware for the waveform recording

Upgrades

Any supported firmware can be uploaded via Web Interface (both different firmware types and upgraded versions of the same firmware)





FPGA

Xilinx Zynq UltraScale+ Multiprocessor System-on-Chip mod. XCZU19EG
Processing System based on Quad-core Arm with 2GB DDR4 memory @2400 MT/s (Linux OS onboard)
Programmable logic with more than 1100K system logic cells and 80Mbit memory



OPEN FPGA
User-Scope Template

Common trigger, simultaneous waveform recording on 64 channels management. Trigger logic and wave processing customization

User-DPP Template

Individual trigger and channel acquisition management. Customization of DPP algorithm, trigger logic, and event data information

COMMUNICATION INTERFACE
Optical Link (optional)

CONET, CAEN proprietary protocol

USB
Type-C connector
USB 3.0 version
Transfer rate up to 280 MB/s
1/10 Gigabit Ethernet

SFP+ receptacle for 1/10 GbE Copper (RJ-45) or Optical links (50/125µm OM2 or OM3 fiber)
TCP-IP stack implemented in the on-board Arm
Transfer rate up to 110 MB/s @1G

POWER REQUIREMENTS

Mains-powered (130 Watt @110V/220V).
