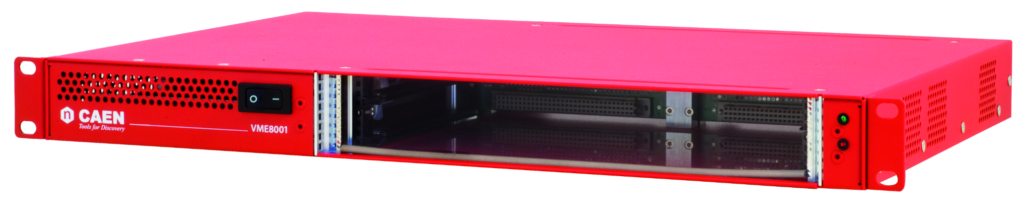

VME8001

1U 2 Slot VME64 Mini Crate

Features

  • 19″ x 1U enclosure
  • 2 slot for 6U x 160mm VME modules
  • 200W Power Supply
  • Short circuit protection
  • VME64 J1/J2 monolithic backplane
  • Horizontal Ventilation (side to side)
  • Powered by 100÷230 VAC, 50÷60 Hz

Overview

The Mod. VME8001 is a 2 slot VME crate, suitable for 6U x 160mm boards, with VME64 compliant backplane. The Unit is powered by 110 ÷240 Vac, 50 ÷ 60 Hz,. The power distribution is 16A@+5V, 7A@+12V, 0.7A@-12V.

Note: VME8001 cooling airflow is not sufficient for CAEN Mod. V1740/VX1740, V1751/VX1751, V1730/VX1730, V1743/VX1743.

Technical Specifications

Mechanics

19″ VME case, 2 slots 6U, 160mm VME boards

Dimensions

19″ width , 1U height

Backplane

VME 2 slot monolithic backplane

Mains Input

100 Vac or 230 Vac, 50÷60 Hz

Output power

16A@+5V, 7A@+12V, 0.7A@-12V

Noise and ripple

+5V: <20mVpp; ±12V: <100mVpp; Maximum values, measured with external 100nF // 10µF capacitors and 20MHz bandwidth

Isolation

CE acc. to EN 61010

Operation

0÷50°C without derating

VME8001

1U 2 Slot VME64 Mini Crate
Product page
