6 Channel 6 kV/1 mA VME HV Power Supply Module

Request a quote
Downloads

Features

  • 6 independent channels in 1 unit wide VME 6U module
  • 6 kV / 1 mA output range (9W max)
  • Available with positive, negative or mixed polarity
  • SHV coaxial output connectors
  • Common floating return
  • Low Ripple
  • Under/Overvoltage alert, overcurrent and max. voltage protection
  • 20 nA Current monitor resolution (with x10 Imon-Zoom: 2 nA)
  • Interlock logic for board enable
  • Individual channel enable
  • Optional DC Input Power Equalizer
  • Module control via software Tools
More info
3 Years Warranty
placeholder
placeholder

Overview

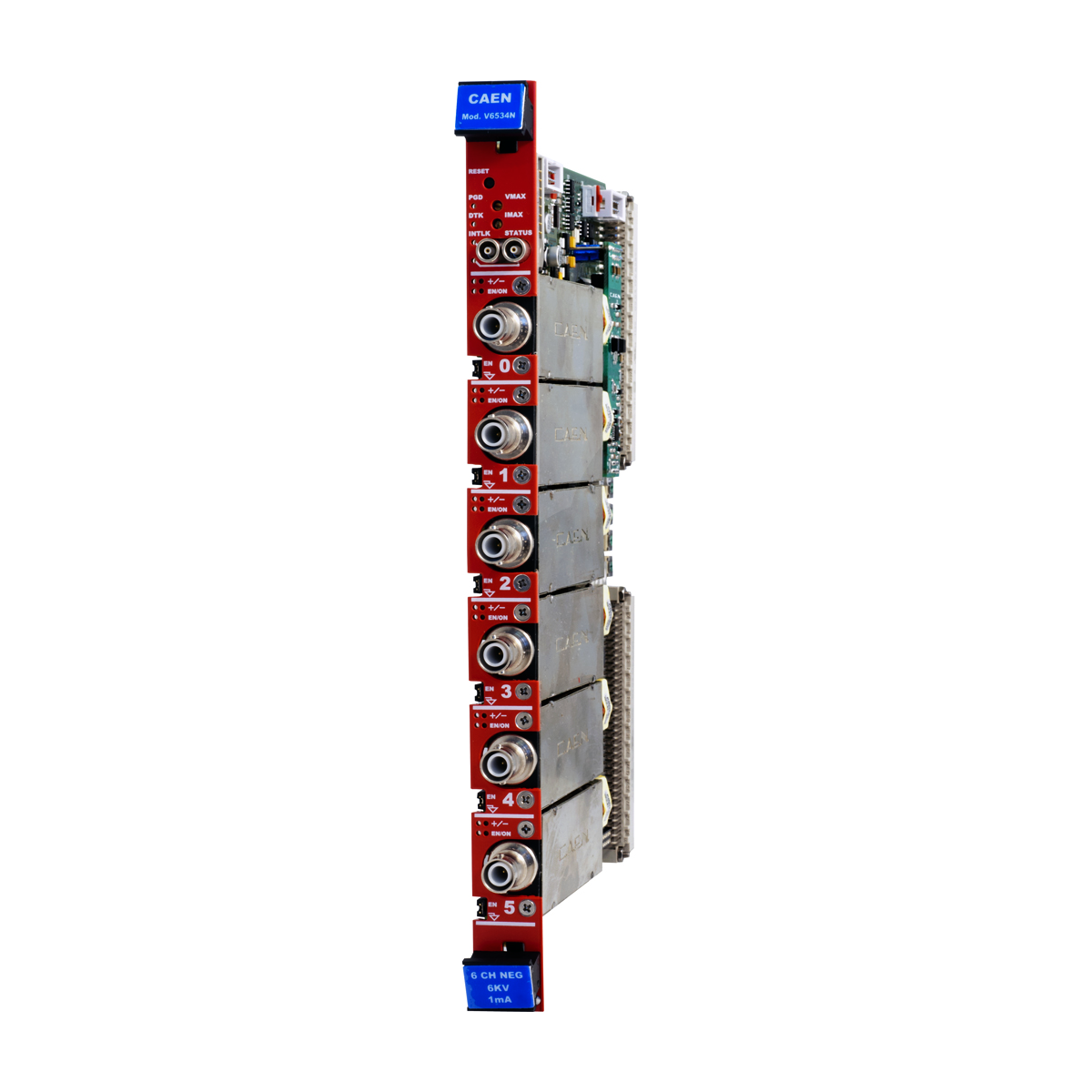

The CAEN Mod.V6534 is a 1-unit wide VME 6U module housing 6 High Voltage Power Supply Channels 6 kV, 1 mA. The board is available with either positive or negative output polarity; mixed version with 3 positive and 3 negative channels is also available.

Shv SHV connector

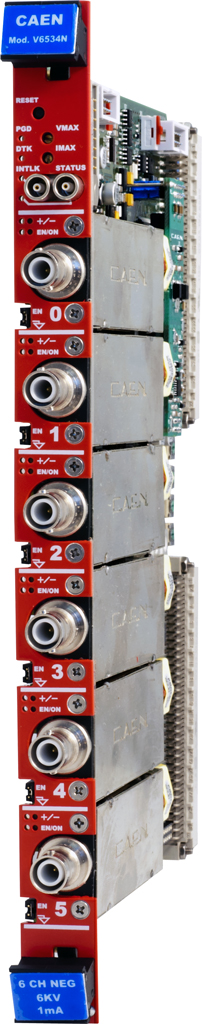

Single width (1-unit wide VME 6U), 6 channels for Mod. V6534

Consult our connectors reference page for technical information.

The channels share a common floating return, which allows on-detector grounding reducing the noise level. HV outputs are delivered through SHV connectors.

The HV output RAMP-UP and RAMP-DOWN rates may be selected independently for each channel in the 1÷ 500 V/s range with 1 V/s steps.

The module features 20nA Iset/Imon resolution. Features include Imon Zoom, increasing resolution to 2nA. The modules fit into both VME/VME64 standard and V430 crates. Functional parameters can be programmed and monitored via VMEbus.

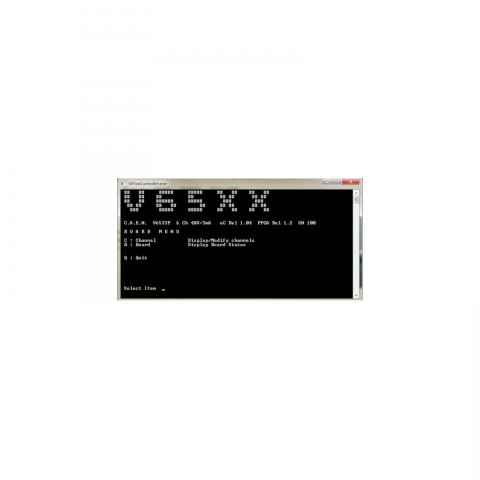

A complete set of free software Tools is available to control this unit: GECO2020 with user friendly GUI and CAEN HV Wrapper library for custom SW development. OPC Server also supported and is available to control these units, from low level libraries to graphical application software.

Safety features allows the module to perform as a current generator and includes:

Channels
 can be enabled or disabled through the Global Interlock logic. Channels individually enabled via front panel jumpers (passive or active mode available).
Overvoltage and Undervoltage
 warning when the output voltage differs from the programmed value.
Overcurrent detection if a channel tries to draw a current larger than its programmed limit, it enters TRIP status, keeping the maximum allowed value for a programmable time (TRIP), before being switched off. If TRIP is set to “constant current mode”, the channel behaves like a current generator.
Hardware VMAX and IMAX
 Maximum output voltage and maximum current value can be fixed, via front panel potentiometer, at the same common value for all the board channels. IMAX and VMAX values can be read out via software.

Available Options:

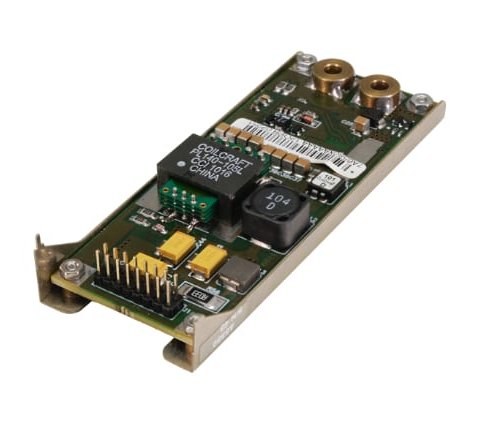

  • A6580 DC Input Power Equalizer

Technical Specifications

Package

1-unit wide VME 6U module

No. of Channels

6 (Common floating return)

Polarity

Positive or Negative; common floating return

Output Voltage

0÷6 kV (connector output)

Max. Output Current

1 mA, Max. 0.1 mA with Imon Zoom (optional)

Voltage Set Resolution

100 mV

Voltage Monitor Resolution

100 mV

Current Set Resolution

20 nA

Current Monitor Resolution

20 nA (2 nA with Imon Zoom)

VMAX hardware

0÷6 kV common to all channel

VMAX hardware accuracy

2% of FSR

IMAX hardware

0÷1 mA common to all board channels

VMAX hardware accuracy

2% of FSR

VMAX software

0÷6 kV selectable for each channel

VMAX software resolution

1 V

Interlock input

LOW: <1V; current~5mA; HIGH: 4÷6 V

Power Requirements
 Without A6580 With A6580
Output +5V, ±12V +5V, ±12V
1kV/1mA (1 ch. ON) 0.2A, 0.4A 1.7A, 0.25A
3kV/1mA (1 ch. ON) 0.2A, 0.45A 2A, 0.27A
6kV/1mA (1 ch. ON) 0.2A, 0.6A 2A, 0.3A
1kV/1mA (6 ch. ON) 0.2A, 1.45 4.5A, 0.8A
3kV/1mA (6 ch. ON) 0.2A, 0.1.65A 5A, 0.95
6kV/1mA (6 ch. ON)  -, – 7.5A, 1.3A



Ramp Up/Down

1÷500 V/s, 1 V/s step

Trip

Max. time an “overcurrent” is allowed to last (seconds). A channel in “overcurrent” works as a current generator; output voltage varies in order to keep the output current lower than the programmed value. “Overcurrent” lasting more than set value (1 to 9999) causes the channel to “trip”. Output voltage will drop to zero either at the Ramp-down rate or at the fastest available rate, depending on Power Down setting; in both cases the channel is put in the OFF state. If trip= INFINITE, “overcurrent” lasts indefinitely.

Voltage Ripple
  • 10 ÷ 1000 Hz: <10 mVpp typical; < 15 mVpp maximum
  • 1 ÷ 20000 kHz: <10 mVpp typical; < 15 mVpp maximum
Vmon vs. Vout accuracy
  • Typical: ± 0.05% ± 1 V
  • Max: ± 0.05% ± 2 V
Vset vs. Vmon accuracy
  • Typical: ± 0.05% ± 1 V
  • Max: ± 0.05% ± 2 V
Imon vs. Iout accuracy
  • Typical: ± 2% ± 40 nA
  • Max: ± 2% ± 100 nA
Iset vs. Imon accuracy
  • Typical: ± 2% ± 40 nA
  • Max: ± 2% ± 100 nA
Voltage Ripple

10 – 1000Hz: Typical: 10 mVpp; Max: 15 mVpp

1kHz – 20MHz: Typical: 10 mVpp; Max: 15 mVpp

Humidity range

0 ÷ 80%

Operating temperature

0 ÷ 45°C

Storage temperature

-10 ÷ 70°C

Vout / Temperature coefficient

Typ: 50 ppm / °C Max: 100 ppm / °C

Imon / Temperature coefficient

Max: 100 ppm/°C; Max: 500 ppm/°C with x10 Imon zoom

Long term stability Vout vs. Vset

± 0.02% (after one week @ constant temperature)
