Connectors

Power Supply

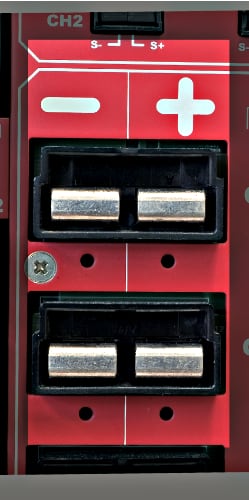

APP PC5933T

connectors
Factory Name: APP PC5933T
Description: Vertical contact MINI P/CLAW APP PC5933T type
Other features

APP30 1317G4

connectors
Factory Name: APP30 1317G4 / PP30 1327BK / PP30 1327G6BK
Description: APP30 1317G4 type
Other features: APP30 MOUNTING WINGS 1399G8BK type:

  • Black: PP30 1327G6BK APP
  • Red: PP30 1327BK APP
  • Vert. contact PP30 1317G4 APP
  • Mounting: PP30 MOUNTING WINGS 1399G8BK APP

AMP 75

connectors
Factory Name: AMP 201311-3
Description: HV multipin connector
Other features: Mates with AMP 201310 cable connector; suitable for operation in the -55 ÷ +150 °C range

Radiall 52

connectors
Factory Name: Radiall 691 803 004
Description: HV multipin connector
Other features: Mates with Radiall 691 802 002 and CAEN Mod. A996 cable connectors; up to 9 kV supported

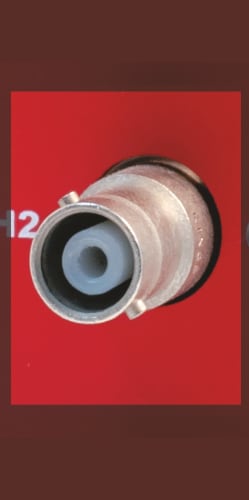

SHV

connectors
Factory Name: Radiall R317580
Description: HV coaxial connector
Other features: Supports up to 8 kV

CPE 3 Pole

connectors
Factory Name: CPE 28-019
Description: HV 3 Pin Panel Male Connector
Other features: supports up to 18 kV

CPE HV

connectors
Factory Name: CPE 23.100.151.046
Description: HV Coaxial Connector
Other features: supports up to 18 kV; mates with HV Cable Connector CPE 23.100.052.045

Brass hexagon head bolt

connectors
Factory Name: RS Stock no. 483-2390
Description: Brass hexagon head set screw, M6x30mm
Other features

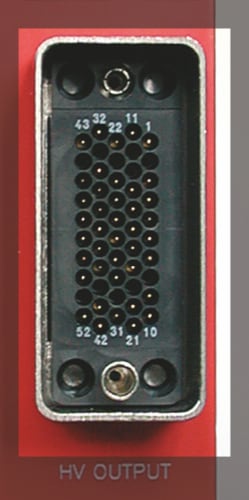

LEMO HV

connectors
Factory Name: LEMO HV ERA3S415CTL
Description: LEMO HV Female (panel)
Other features: mates with LEMO HV MALE FFB3S415CPAC-10W

Kings

connectors
Factory Name: KINGS 1064-1
Description: KINGS HV coaxial connector
Other features: Supports up to 15 kV

DB37

connectors
Factory Name: DB37
Description: FCI DCPV37S300GT
Other features

D-Sub 8W8 socket

connectors
Factory Name: DC8W8SA00LF
Description: Power Connector 8W8 Socket
Other features: mates with DC8W8PA00LF

D-Sub26

connectors
Factory Name: FCI ICD26S13E4GV00LF
Description: Connector High Density D-Sub SKT 26 POS 2.28mm Solder RA Thru-Hole 26 Terminal Port
Other features

LEMO

connectors
Factory Name: Fischer DP101A004-51
Description: LEMO type coaxial connector
Other features

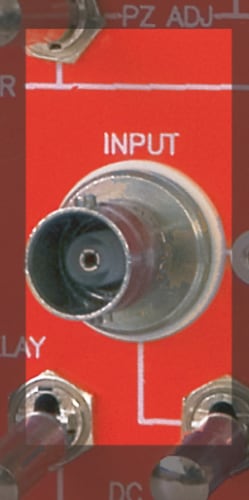

BNC

connectors
Factory Name: Radiall R141603
Description: BNC type coaxial connector
Other features

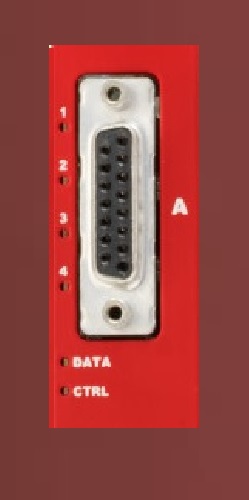

 D-Sub15

connectors
Factory Name:Amphenol FCI ICD26S13E4GV00LF
Description: Amphenol FCI 15 Pin D-Sub Female PCB Straight
Other features

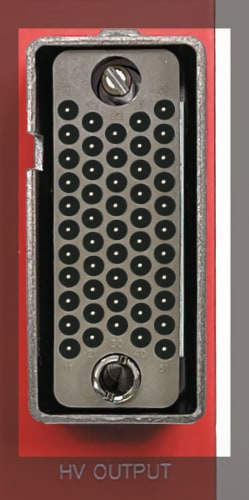

REDEL

connectors
Factory Name: SAG.H51.LLZBG
Description: HV Multipin Connector
Other features



Front-end

Strip Header

connectors
Factory Name: AMP 5/826634/0 (17+17 pin)
Description: Male strip header (17+17 pin)
Other features: the 17+17 connector mates with 3M 3414-6600 wiremount connector

BNC

connectors
Factory Name: Radiall R141603
Description: BNC type coaxial connector
Other features

Robinson Nugent 68 pin

connectors
Factory Name: 3M P50E-068P1-SR1
Description: Robinson Nugent 68 pin straight angle thru-hole board mount connector
Other features: Mates with:
3M P25E-068S (SY2791)
3M P50E-068S (other modules)

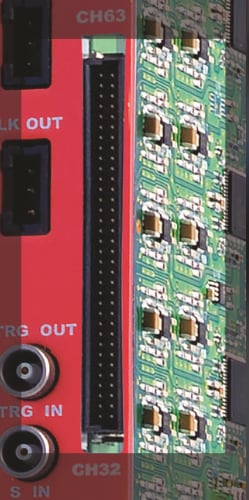

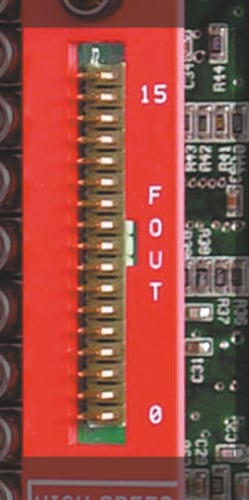

Header-type connectors

connectors
Factory Name: 3M 3431-6202 (17+17 pin); 3M 3408-5202 (8+8 16 pin)
Description: Header-type connector
Other features: Available with different pin sets; the 17+17 connector mates with 3M 3414-6600 wire mount connector

LEMO

connectors
Factory Name: Fischer DP101A004-51
Description: LEMO type coaxial connector
Other features

LEMO EPG0B

connectors
Factory Name: EPG.0B.302.HLN
Description: LEMO 2 pin type
Other features

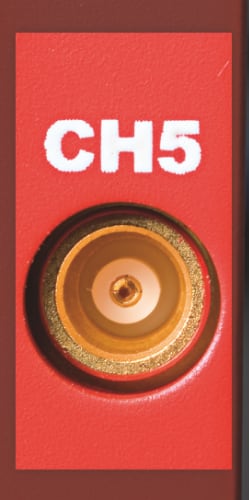

MCX connector

connectors
Factory Name: SUHNER CS 85MCX-50-0-16
Description: 50 Ω MCX connector
Other features

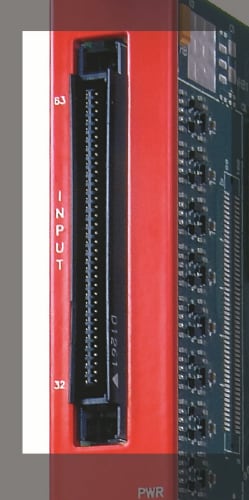

SMC 68 pin connector

connectors
Factory Name: ERNI SMC-114805
Description: Dual Row 68 pin connectors
Other features

AMP 3 pin connector

connectors
Factory Name: AMP 3-102203-4 (Series: AMPMODU)
Description: Connector header 3 pin 2.54 mm
Other features

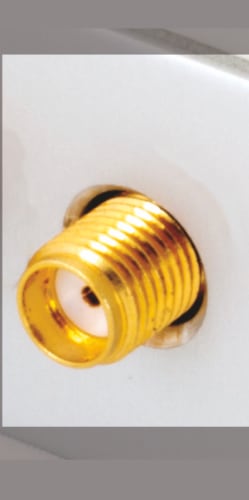

SMA

connectors
Factory Name: Johnson 142-0701-871
Description: SMA 50 Ohm connector
Other features

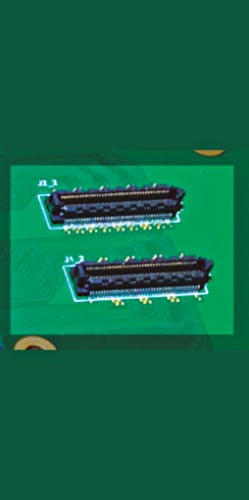

Samtec SS4-40-3.00-L-D-K-TR

connectors
Factory Name: 0.40 mm Razor Beam™ LP Ultra Fine Pitch Socket Strip
Description: Samtec 28+ Gbps Solution, Ultra fine 0.40 mm pitch; 80 I/Os
Other features

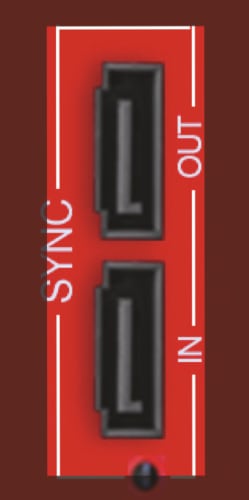

Serial ATA Signal Plugs

connectors
Factory Name: MOLEX 47080-4005
Description: 1.27 mm Pitch Serial ATA Shrouded Signal Plug
Other features

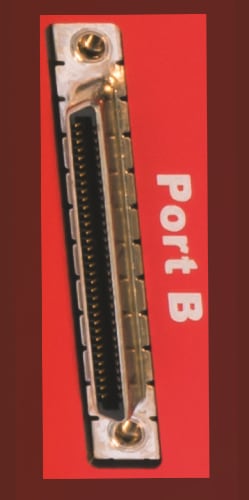

VHDCI

connectors
Factory Name: MOLEX 71430-0008
Description: 0.80mm Pitch VHDCI Receptacle, 68 Circuits
Other features


Communication Ports

Ethernet connector

connectors
Factory Name: Ehternet
Description: ETH 10Base-T female connector TTL signals (TCP/IP)
Other features

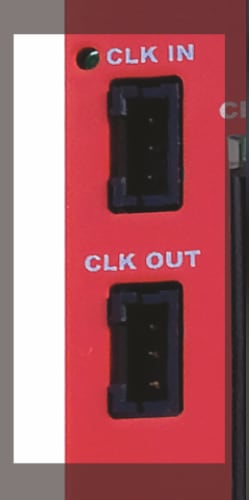

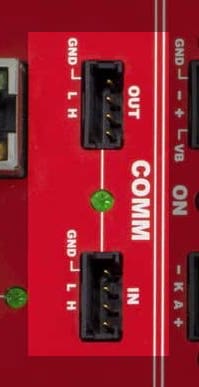

RS485 AMP 280371-2

connectors
Factory Name: 280371-2
Description: Connector Header Through Hole 4 position 0.100″ (2.54mm)
Other features

USB

connectors
Factory Name: AMP 787780-2
Description: USB Type B
Other features

Micro USB

connectors
Factory Name: MOLEX 0473460001
Description: USB Micro type
Other features

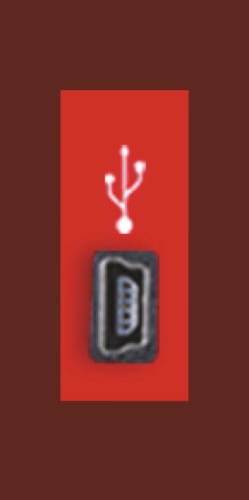

Mini USB

connectors
Factory Name: MOLEX SD-54819-026
Description: USB Mini type
Other features

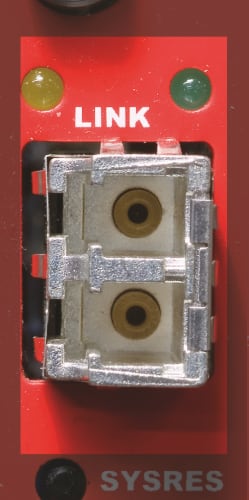

LC

connectors
Factory Name: Agilent HFBR-5911L/AL
Description: LC type duplex connector
Other features
