6 independent channels in 1 unit wide VME 6U module
4 kV / 3mA output range (9W max)
Available with positive, negative or mixed polarity
SHV coaxial output connectors
Common floating return
Low Ripple
Under/Overvoltage alert, overcurrent and max. voltage protection
50 nA Current monitor resolution (with x10 Imon-Zoom: 5 nA)
Status output
Channel ON/Status LEDs
Interlock logic for board enable
Individual channel enable
Optional DC Input Power Equalizer
Module control via software Tools

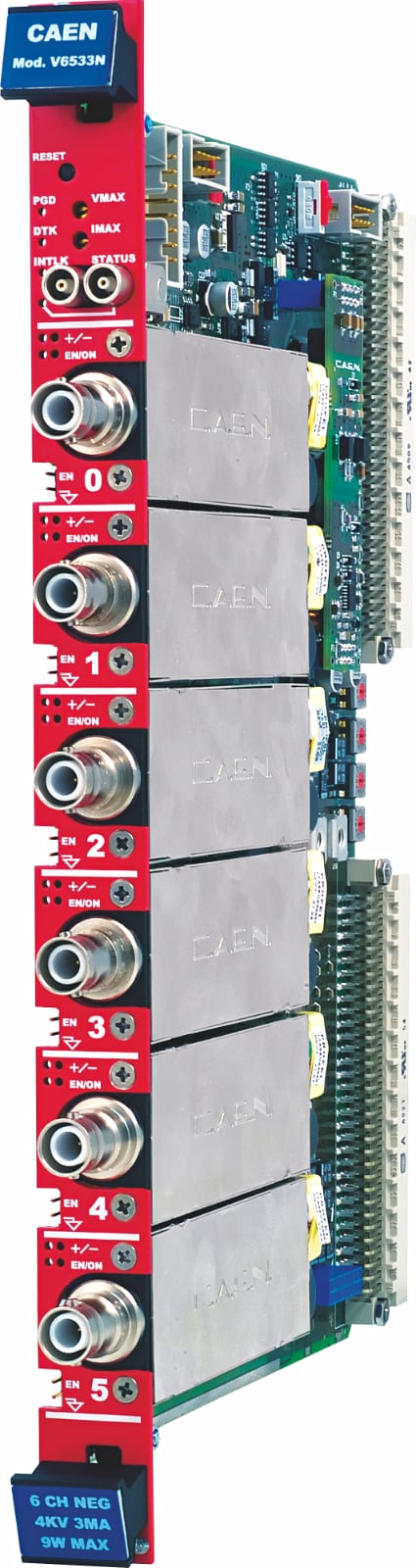

The CAEN Mod. V6533 is a 1-unit wide VME 6U module housing 6 high voltage power supply channels, each delivering up to 4 kV and 3 mA, with a maximum output power of 9 W. The board is available with either positive or negative output polarity, as well as in a mixed version with 3 positive and 3 negative channels.
The channels share a common floating return, which allows on-detector grounding and reduces the noise level. The Mod. V6533 is a single-width module and delivers its 6 HV outputs through SHV connectors; for further technical information, consult our connectors reference page. Ramp-up and ramp-down rates can be set independently for each channel from 1 to 500 V/s in 1 V/s steps. The module offers 50 nA Iset/Imon resolution, and the x10 Imon Zoom increases the current monitor resolution to 5 nA.

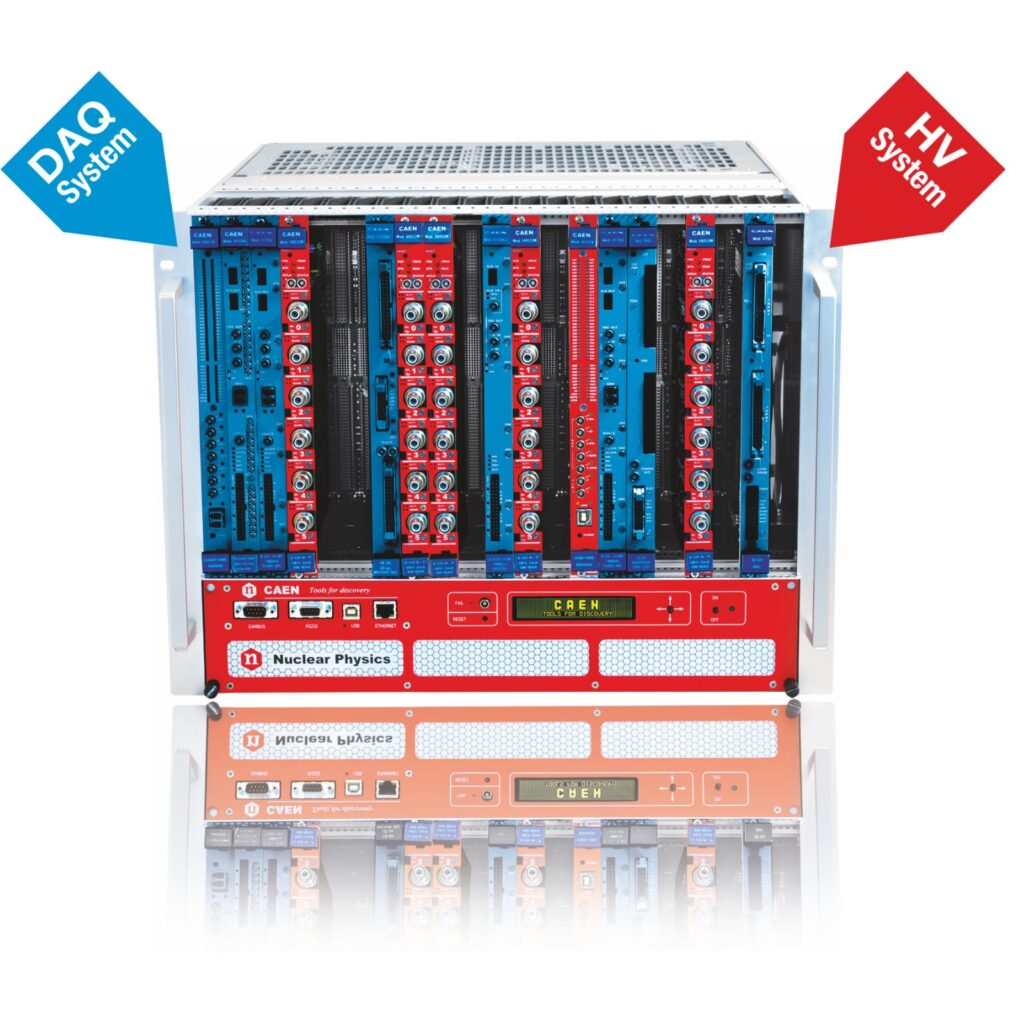

The modules fit into both standard VME/VME64 and V430 crates, and all functional parameters can be programmed and monitored via VMEbus. A complete set of free software tools is available to control the unit: GECO2020, with a user-friendly GUI, and the CAEN HV Wrapper library for custom software development. The OPC Server is also supported.
The module also includes dedicated safety features that allow it to operate as a current generator. The channels can be enabled or disabled through the global interlock logic, and each channel can also be enabled individually via front panel jumpers (passive or active mode available). A warning is issued when the output voltage differs from the programmed value. If a channel attempts to draw a current higher than its programmed limit, it enters TRIP status and holds the maximum allowed value for a programmable time (TRIP) before being switched off; if TRIP is set to “constant current mode”, the channel behaves as a current generator. Hardware VMAX and IMAX limits can be set via front panel potentiometers to the same common value for all channels of the board, and both values can be read out via software.
Available options include the A6580 DC Input Power Equalizer and the x10 Imon Zoom.
|
|
Name
|
No. of Channels
|
Max Output V
|
Max Output I
|
Vset/Vmon Resolution
|
Iset/Imon Resolution
|
Max. Ramp Up/Down Rate
|
Ripple Typ. (>1kHz)
|
Connectors
|
Max Power per Channel
|
Features
|
|
|
V6521H |
6 |
6000 V |
20 µA |
0.1 V |
Iset: 1 nA <br>Imon: 1 / 0.1 nA |
500 V/s |
< 3 mVpp |
SHV |
0.12 W |
Common Floating Return |
|
|
V6534 |
6 |
6000 V |
1 mA |
0.1 V |
Iset: 20 nA <br>Imon: 20 / 2 nA |
500 V/s |
< 15 mVpp |
SHV |
6 W |
Common Floating Return |
|
|
V6533 |
6 |
4000 V |
3 mA |
0.1 V |
Iset: 50 nA <br>Imon: 50 / 5 nA |
500 V/s |
< 5 mVpp |
SHV |
9 W |
Common Floating Return |
|
|
V6519 |
6 |
500 V |
3 mA |
10 mV |
Iset: 50 nA <br>Imon: 50 / 5 nA |
100 V/s |
< 3 mVpp |
SHV |
1.5 W |
Common Floating Return |
|
|
V6521 |
6 |
6000 V |
300 µA |
0.1 V |
Iset: 5 nA <br>Imon: 5 / 0.5 nA |
500 V/s |
< 3 mVpp |
SHV |
1.8 W |
Common Floating Return |
|
Package |
1-unit wide VME 6U module |
||||||||||||||||||||||||
|
No. of Channels |
6 (Common floating return) |
||||||||||||||||||||||||
|
Polarity |
Positive or Negative; common floating return |
||||||||||||||||||||||||
|
Output Voltage |
0÷4 kV (connector output) |
||||||||||||||||||||||||
|
Max. Output Current |
3 mA (9W max), Max. 300 µA with Imon x10 Zoom |
||||||||||||||||||||||||
|
Voltage Set Resolution |
100 mV |
||||||||||||||||||||||||
|
Voltage Monitor Resolution |
100 mV |
||||||||||||||||||||||||
|
Current Set Resolution |
50 nA |
||||||||||||||||||||||||
|
Current Monitor Resolution |
50 nA (5 nA with Imon Zoom) |
||||||||||||||||||||||||
|
VMAX hardware |
0÷4 kV common to all board channels |
||||||||||||||||||||||||
|
VMAX hardware accuracy |
2% of FSR |
||||||||||||||||||||||||
|
IMAX hardware |
0÷3 mA common to all board channels |
||||||||||||||||||||||||
|
IMAX hardware accuracy |
2% of FSR |
||||||||||||||||||||||||
|
VMAX software |
0÷4 kV selectable for each channel |
||||||||||||||||||||||||
|
VMAX software resolution |
100 mV |
||||||||||||||||||||||||
|
Interlock input |
LOW: <1V; current~5mA; HIGH: 4÷6 V |
||||||||||||||||||||||||
|
Power Requirements |
|
||||||||||||||||||||||||
|
Ramp Up/Down |
1÷500 V/s, 1 V/s step |
||||||||||||||||||||||||
|
Trip |
Max. time an “overcurrent” is allowed to last (seconds). A channel in “overcurrent” works as a current generator; output voltage varies in order to keep the output current lower than the programmed value. “Overcurrent” lasting more than set value (1 to 9999) causes the channel to “trip”. Output voltage will drop to zero either at the Ramp-down rate or at the fastest available rate, depending on Power Down setting; in both cases the channel is put in the OFF state. If trip= INFINITE, “overcurrent” lasts indefinitely. |
||||||||||||||||||||||||
|
Voltage Ripple* |
10 ÷ 1000 Hz: <8 mVpp typical; < 12 mVpp maximum *Measured with: 1m cable length; 2nF capacitance |
||||||||||||||||||||||||
|
Vmon vs. Vout Accuracy* |
typical: ± 0.05% ± 1 V *From 10% to 90% of Full Scale Range |
||||||||||||||||||||||||
|
Vset vs. Vout accuracy |
typical: ± 0.05% ± 1 V |
||||||||||||||||||||||||
|
Imon vs. Iout accuracy |
typical: ± 2% ± 1 µA |
||||||||||||||||||||||||
|
Iset vs. Imon accuracy |
typical: ± 2% ± 1 µA |
||||||||||||||||||||||||
|
Humidity range |
0 ÷ 80% |
||||||||||||||||||||||||
|
Operating temperature |
0 ÷ 45°C |
||||||||||||||||||||||||
|
Long term stability Vout vs. Vset |
± 0.02% (after one week @ constant temperature) |
