N568E

16 Channel Programmable Spectroscopy Amplifier (Low Noise)

Request a quote
Downloads

Features

  • 16 channels
  • Positive or negative inputs accepted on each channel
  • Wide gain range: 0.15 to 480 per channel
  • Programmable shaping time per channel
  • Programmable pole-zero cancellation per channel
  • 16 normal or inverted outputs (further 10x amplification outputs also available)
  • 16 fast amplifier outputs for timing purposes
  • Energy and timing multiplexed outputs
  • Completely programmable via USB and Ethernet
  • Input noise smaller than 15 µV RMS @ Gain=100
  • Supported by CAEN-CSA software
More info
3 Years Warranty
placeholder
placeholder

Overview

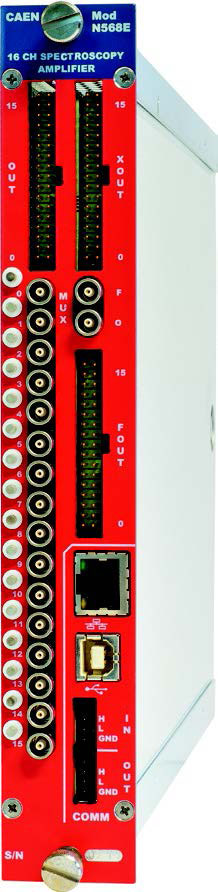

The N568E is a 16 channel spectroscopy amplifier implemented in a single-width NIM module. The following versions are available:

Version N568ELC N568E N568EB
Description 16 Ch Low Cost Ethernet Prog. Spectroscopy Amplifier 16 Ch Ethernet Prog. Spectroscopy Amplifier 16 Ch Ethernet Prog. Spectroscopy Amplifier
Shaping time 0.2, 1, 3, 6 µs 0.2, 1, 3, 6 µs 0.1, 0.2, 1, 3 µs
Impedance 50 Ω 50 Ω 50 Ω
Features Low cost Low noise Low noise

For each channel the amplification gain, the output polarity, the shaping time and the pole-zero cancellation, are remotely programmable, either via USB or Ethernet; the RS485 port al lows to connect up to 32 daisy chained modules. The gain ranges from 0.15 to 480.

The working parameter values are automatically stored in a non-volatile memory. A semi-Gaussian output is provided either with the programmed gain (OUT) or with a further 10x amplification (XOUT), either direct or inverted. A Common Offset can be programmed via software and allows to shift the baseline of the output. A FOUT output provides a fast amplification for timing purposes (fixed gain factor of 20). A MUX OUT allows to monitor both the OUT and the FOUT outputs of a single channel.

The N568E is supported by freely downloadable CAEN-CSA software, available for both Windows and Linux OS.

Technical Specifications

Packaging

One unit wide NIM module

Inputs 0÷15

Positive or negative pulses with rise time >18 ns, max. amplitude: 8 V (absolute value), 50 Ω impedance

OUT 0÷15

Unipolar, ±8 V dynamic range, 100 Ω impedance

XOUT 0÷15

Unipolar, further 10x fixed amplification of the OUT value, ±8 V dynamic range, 100 Ω impedance

FOUT 0÷15

Unipolar, 100 ns differentiation time constant, ±8 V dynamic range, 100 Ω impedance

Risetime: 25 ns typically

MUX O

Unipolar, ±8 V dynamic range, 100 Ω impedance

MUX F

Unipolar, 100 ns differentiation time constant, ±8 V dynamic range, 100 Ω impedance

Risetime: 25 ns typically

Gain

Adjustable from 0.15 to 480

Shaping time N568E/N568ELC

Selectable time constant of 0.2 µs, 1 µs, 3 µs and 6 µs

Shaping time N568EB

Selectable time constant of 0.1 µs, 0.2 µs, 1 µs and 3 µs

Pole zero

Adjustable on 256 steps in a range from 50 µs to 500 µs

Integral non-linearity

<± 0.05% in 90% of the full scale @ Gain=90 and 6 µs shaping time (± 0.2% typ. for any shaping time)

Equivalent input noise
  • N568E: < 15 µV RMS (Gain=100 and 3 µs shaping time)
  • N568ELC: < 25 µV RMS (Gain=100 and 3 µs shaping time)
Crosstalk

< 0.02 %

Count rate stability

< 0.05 % (from 1 to 20 KHz and 3 µs shaping time)

Compare

Compare with Amplifiers (Spectroscopy).

Loading...

Accessories

A385
Adapter 2.54mm 34-pin female to 16x LEMO 00 female (or MCX male) – 50 cm / 1 m

Ordering Options

Code Description
WN568ELCXAAA N568ELC - 16 Channel Low Cost Ethernet Prog. Spectroscopy Amplifier (0.2, 1, 3, 6 µs - 50 Ohm)   RoHS
WN568EXAAAAA N568E - 16 Channel Ethernet Prog. Spectroscopy Amplifier (0.2, 1, 3, 6 µs - 50 Ohm)   RoHS
WN568EXBBAAA N568EBB - 16 Channel Progr. Spectroscopy Amplifier(0.1, 0.2, 1, 3 µs - 50 Ohm)   RoHS
