N5424

Quad NIM Power Distributor for A1422 Preamplifiers

Request a Quote Add to WishlistView Wishlist

Home Power SupplyLow Voltage Power suppliesLow Power Low Voltage N5424

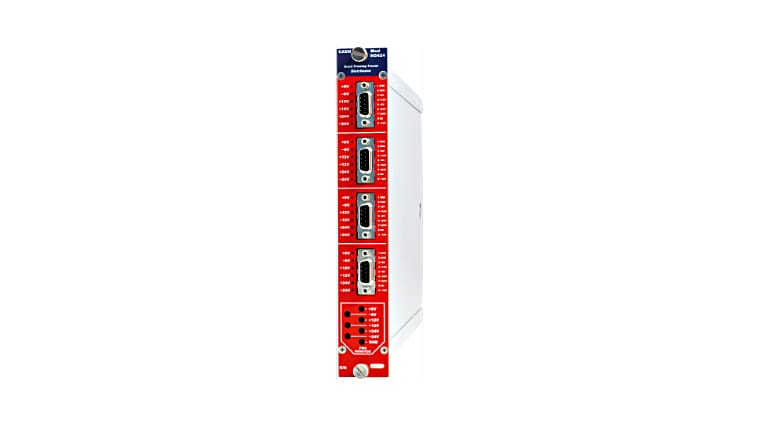

Photo of N5424
DatasheetDownloadCompareTech. Spec.

Highlights

  • Single-width NIM module, powered by the NIM bin

  • Four DB9 outputs, each delivering ±6 V, ±12 V and ±24 V

  • Individually filtered outputs for low-noise operation

  • Ripple: < 2 mVpp on ±6 V; < 3 mVpp on ±12 V and ±24 V

Overview

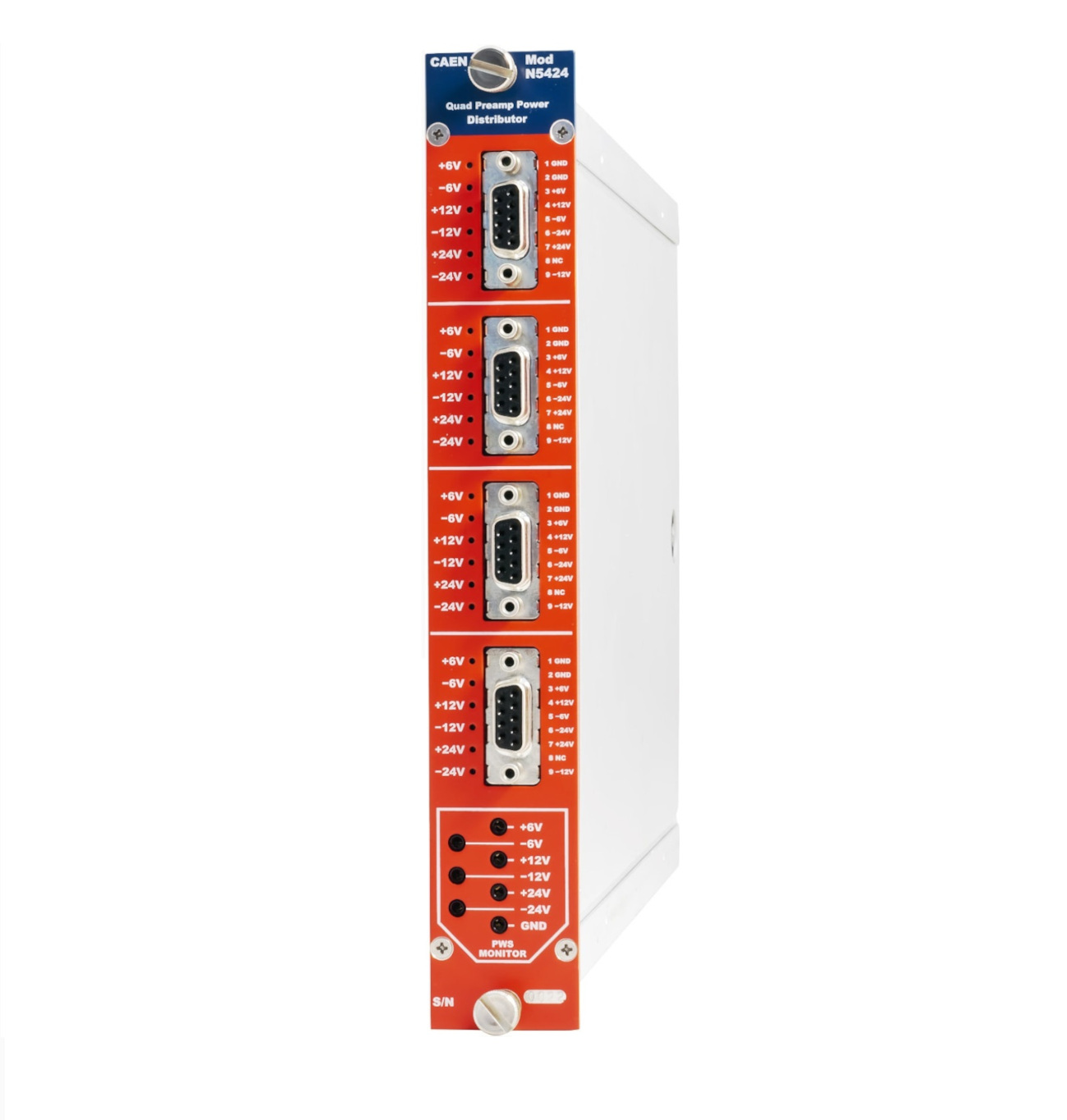

The CAEN Mod. N5424 is a 4-channel NIM power distribution and control module in a single-width NIM form factor. It is powered directly by the NIM bin and delivers ±6 V, ±12 V and ±24 V outputs. Its standard output voltages are compatible with CAEN electronics and with many other manufacturers.

The voltages are delivered through four DB9 (Sub D9) female connectors, each providing all six rails. For technical information on the D-Sub9 connector, see our connectors reference page.

Low-noise preamplifiers need DC power that is free of interference from other modules in the bin. The N5424 meets this need by filtering the power lines separately at each connector. As a result, ripple stays below 2 mVpp on the ±6 V outputs and below 3 mVpp on the ±12 V and ±24 V outputs.

Self-recovering electronic fuses protect each voltage output and automatically restore operation after a short circuit. All six voltages are monitored on each of the four outputs, and LEDs display their status. This also makes the module a quick way to check that a NIM bin delivers the correct voltage levels. If the bin does not provide ±24 V, the corresponding LEDs turn off and monitoring of those voltages is skipped.


Ordering Options

Code Description
WN5424XAAAAA

N5424 – Quad NIM Power Distributor for A1422 Preamplifier

RoHS

You also may be interested in…

NIM8302

NIM8302

5U 10 slot 150 W Compact Crate
NIM8305

NIM8305

2 Slot Switching 450 W Mini Crate
NV8020A

NV8020A

7U CRATE VME/NIM 8 slot VME64 365W, 5 slot NIM 150W
NIM8303

NIM8303

5U 12 slot 300/600 W Crate
NIM8306

NIM8306

2 Slot Switching 750 W Mini Crate
A1422

A1422

Low-Noise Fast-Rise-Time Charge-Sensitive Preamplifiers (Boxed)
NIM8304

NIM8304

7U 12 slot smart fan unit Switching 2000 W Crate
Download Compare Tech. Spec.

Add to Wishlist
This product is already in your Wishlist
Browse the Wishlist
Request a Quote

Request a Quote

    Submit

    Compare

    Close
    Name
    Package
    No. of Channels
    Pre-Amp Supply
    Digitizer Supply
    Connectors
    Noise
    V5425

    V5425

    VME

    Pre-Amp: 4

    +6 V / 2 A<br>-6 V / 1.5 A<br>±12 V / 500 mA<br>±24 V / 250 mA

    N.A.

    Pre-Amp: 4 Sub D9 female

    ±6 V < 1 mVpp<br>±12 V ±24 V < 2 mVpp

    DT5423

    DT5423

    Desktop

    Pre-Amp: 4<br>Digitizer: 1

    +12 V / 400 mA<br>-12 V / 200 mA

    +12 V / 2.1 A

    Pre-Amp: 4 Sub D9 female <br>Digitizer: Mini DIN 6 pos Shielded

    ±12 V < 5 mVpp (Pre-Amp)<br>+12 V < 10 mVpp (Digitizer)

    N5424

    N5424

    NIM

    Pre-Amp: 4

    ±6 V / 1 A<br/>±12 V / 1 A<br/>±24 V / 100 mA

    N.A.

    Pre-Amp: 4 Sub D9 female

    ±6 V < 2 mVpp<br>±12 V ±24 V < 3 mVpp

    Technical Specifications

    Close

    Mechanical Packaging

    One unit NIM mechanics

    Power requirements

    Powered by NIM bin power supply

    PreAmp 1,2,3,4 output

    • ±6 V / 1 A
    • ±12 V / 1 A
    • ±24 V / 100 mA

    4 SubD9 female connectors

    Noise performance

    • ±6 OUT on Preamp 1÷4 connectors: ripple 2 mVpp
    • ±12V OUT, ±24V OUT on Preamp 1÷4 connectors: ripple 3 mVpp

    Measurement conditions

    • 20 MHz bandwidth limited oscilloscope, AC-coupled; capacitive load 100 nF on OUT in measurement
    • OUT at full load (1A on ±6V OUT, 1A on ±12V OUT, 100mA on ±24V OUT)
