μ-crate
New
Desktop single-slot VME64X Crate
Features
- Desktop form factor
- Single slot for 1-unit VME 6U x 160mm modules
- VME64 and VME64X power compliance (VME protocols not supported)
- Low-noise air cooling system
- Hardware selectable high and low fan speed
- Mains powered 100 – 240 V AC (130 W) @ 50 / 60 Hz
- 19” rack mount kit included
Overview
The μ-Crate is a mains-powered (100 – 240 V AC (130 W) @ 50 / 60 Hz) desktop device with low-noise cooling vents system. The single-slot backplane is mechanically and electrically compliant to 1-unit VME 6U x 160mm modules in the VME64 and VME64X standards that meet the provided voltage and current specifications. Optional mounting into 19” racks is possible by metal brackets that are provided with the device.
According to the operating conditions, the User can manually set high and low fan speed level by hardware button.
Technical Specifications
- Mechanical
Desktop: 337 W x 96 H x 278 L mm³ (with no board in)
- Enviromental
Environment: Indoor use
Operating Temperature: 0°C to +40°C
Storage Temperature: -30°C to +80 °C
Operating Humidity: 10% to 90% RH non condensing
Storage Humidity: 5% to 90% RH non condensing
Altitude: <2000m
Pollution Degree: 2
Overvoltage Category: II
EMC Environment: Commercial and light industrial
IP Degree: IPX0, not for wet location
- Max. output current
10.5A @+3.3V; 10 A @+5V; 2 A @+12V; 2A @-12V
- Mains Input
100 – 240 V AC (130 W) @ 50 / 60 Hz
- Cooling Airflow
- Low-noise cooling vents
- Adjustable speed by hardware button (2 steps: low speed, high speed)
- Regulatory
- EMC: CE 2014/30/EU Electromagnetic compatibility Directive
- Safety: CE 2014/35/EU Low Voltage Directive
Ordering Options
| Code | Description |
|---|---|
| WUCRATEX001A | µ-Crate - Desktop single-slot VME64X Crate RoHS |
Related Products
VX2745
64 Channel 16 bit 125 MS/s Digitizer with Programmable Input Gain
VX2740
64 Channel 16 bit 125 MS/s Digitizer
VX1761
2 Channel 10 bit 4GS/s Digitizer
VX1751
4/8 Channel 10 bit 2/1 GS/s Digitizer
VX1743
16 Channel 12bit 3.2 GS/s Switched Capacitor Digitizer
VX1742
32+2 Channel 12bit 5 GS/s Digitizer
VX1740D
64 Channel 12bit 62.5 MS/s Digitizer supporting DPP-QDC firmware
VX1740
64 Channel 12bit 62.5 MS/s Digitizer
VX1730 / VX1730S
16/8 Channel 14 bit 500 MS/s Digitizer
VX1725 / VX1725S
16/8 Channel 14-bit 250 MS/s Digitizer

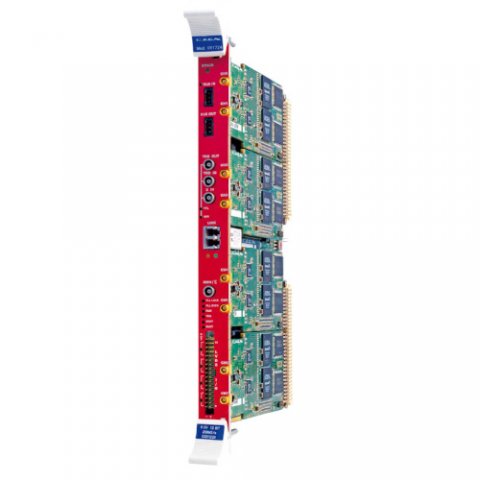

VX1724
