NIM / Up to 6 kV – N803x

8 Channel up to 6 kV Family with USB, Ethernet & Touchscreen

Features

  • 8 independently controllable HV channels
  • Very low ripple
  • Four versions from 100 V up to 6kV, and from 1 mA to 10 mA
  • BNC output connectors for the 100 V version and SHV coaxial connectors for the others

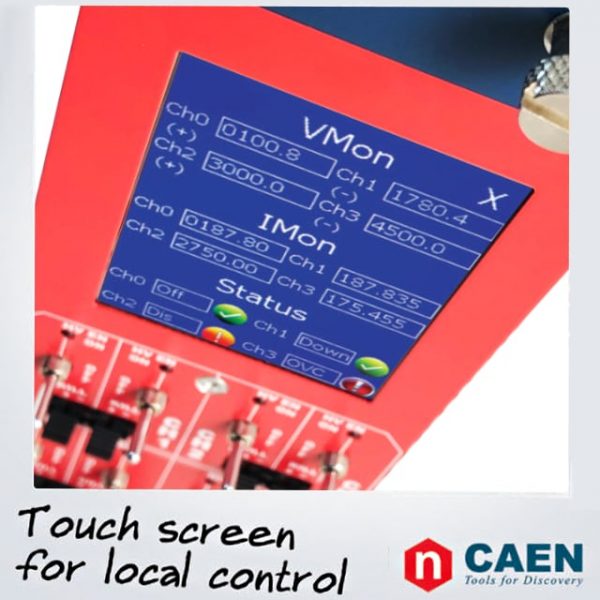

  • Local control with a 2.8” touch screen display

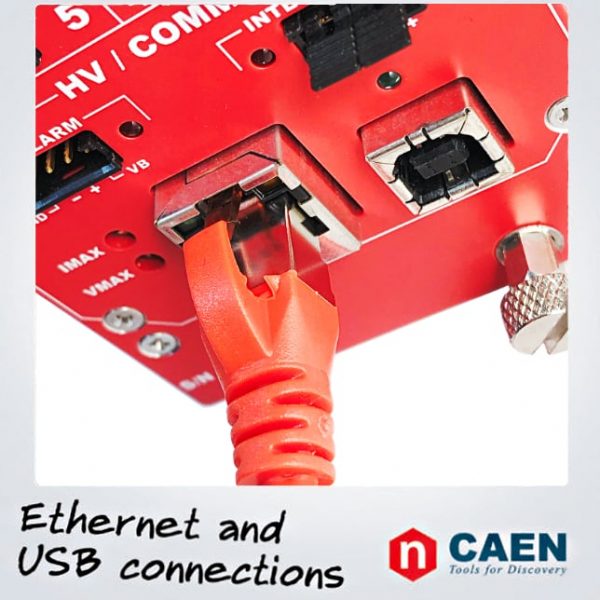

  • Remote control via Ethernet or USB 2.0
  • Common ground
  • Positive/negative or mixed polarity versions available
  • Autonomous cooling
  • Interlock logic for board enable and individual channel kill
  • LabVIEW Driver available
  • Software Tools for remote control
  • The 100 V version has:
    • Temperature probe input for SiPM gain stabilization (single/multi slope correction)
    • Fast recovery output

Overview

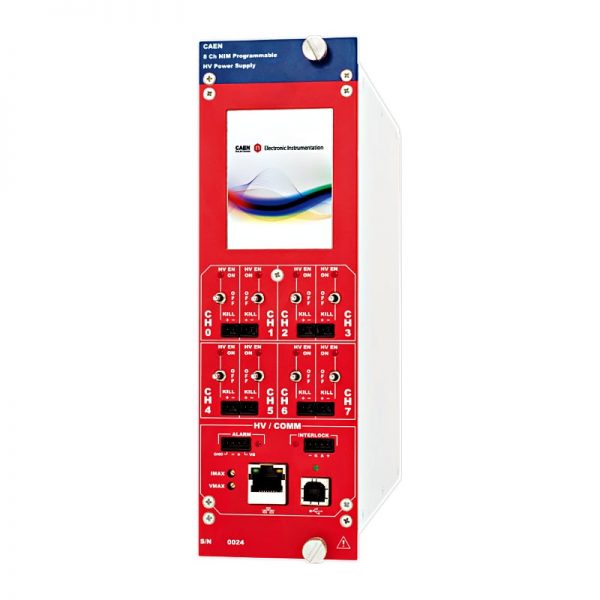

N803x is a CAEN Power Supply Family providing 8 Independent High Voltage channels in 2U NIM module. The channels share a Common Ground and four output ranges are available: 100 V/10 mA, 500 V/10 mA, 4 kV/3 mA (6W max), 6 kV/1 mA. The module is available with either positive or negative output polarity. Mixed version with 4 positive and 4 negative channels are also available.

N803x units can be controlled either locally, thanks to a 2.8” touchscreen color LCD display with a complete user interface, or remotely, via USB or Ethernet, taking advantage of GECO2020 Control Software. EPICS and LabVIEW are supported. 100 V channels are delivered through BNC connectors, other versions feature SHV’s. The three high current models feature high Imon resolution of 50 nA, while the 6 kV/ 1 mA has a resolution of 5 nA. Each unit is provided with Imon Zoom which increases Imon resolution by a factor 10. The HV output Ramp-up and Ramp-down rates may be selected independently for each channel.

Software

Software Tools available (free download) to control the Up to 6 kV Family N803x:

blankCAEN LabVIEW It is a set of VIs developed to configure and monitor all the parameters of remotely controlled CAEN Power Supply Modules.
blankEPICS IOC Mainframes CPUs integrates an EPICS Input / Output Controller (IOC) that provides access to the Process Variables using the Channel Access Protocol.
blankCAEN HV Wrapper Library It is a set of ANSI C functions bundled in a library, providing the software developer an unified software interface for the control of all the CAEN Power Supply products
blank

GECO2020

CAEN General Control SW for High Voltage Boards and Systems. it can manage and control CAEN HV power supplies in any form factor as if they were an unique device.

Models

Model Image No. of Channels Max Output V Max Output I Iset/Imon Resolution Ripple Typ. (>1kHz) Connectors Max Power per Channel Features Actions
N8031 N8031 8 100 V 10 mA Iset: 50 nA
Imon: 50 / 5 nA
< 1 mVpp BNC 1 W Common Ground
Available with positive, negative or mixed polarity, Temperature Probe Input
QUOTE
N8032 N8032 8 500 V 10 mA Iset: 50 nA
Imon: 50 / 5 nA
< 2 mVpp SHV 5 W Common Ground
Available with positive, negative or mixed polarity
QUOTE
N8033 N8033 8 4000 V 3 mA Iset: 10 nA
Imon: 10 / 1 nA
< 2 mVpp SHV 6 W Common Ground
Available with positive, negative or mixed polarity
QUOTE
N8034 N8034 8 6000 V 1 mA Iset: 5 nA
Imon: 5 / 0.5 nA
< 2 mVpp SHV 6 W Common Ground
Available with positive, negative or mixed polarity
QUOTE
N8034H N8034H 8 6000 V 20 µA Iset: 100 pA
Imon: 100 / 10 pA
< 2 mVpp SHV 120 mW Common Ground
Available with positive, negative or mixed polarity
QUOTE

Interfaces & I/O
