V792

32 Channel Multievent QDC

Request a quote
Downloads

Features

  • High channel density
  • 12-bit resolution
  • 5.7 µs / 32 ch conversion time
  • 600 ns fast clear time
  • Zero and overflow suppression for each channel
  • ±1.5% differential non linearity
  • ±0.1% integral non linearity
  • 32 event buffer memory
  • BLT32/MBLT64/CBLT32/CBLT64 data transfer
  • Multicast commands
  • Live insertion
  • Libraries, Demos (C and LabView) and Software tools for Windows and Linux
More info
3 Years Warranty
placeholder
placeholder

Overview

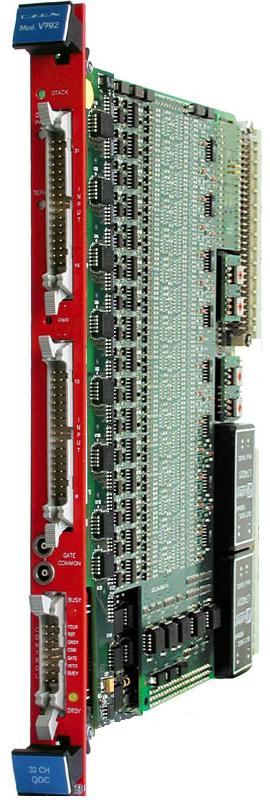

The Mod. V792 is a 1-unit wide VME 6U module housing 32 Charge-to-Digital Conversion channels with current integrating negative inputs (50 Ω impedance).
For each channel, the input charge is converted to a voltage level by a QAC (Charge to Amplitude Conversion) section. Input range is 0 ÷ 400 pC.
The outputs of the QAC sections are multiplexed and subsequently converted by two fast 12-bit ADCs.
The integral non linearity is ±0.1% of Full Scale Range (FSR) measured from 5% to 95% of FSR. The ADCs use a sliding scale technique to improve the differential non-linearity.
The Mod. V792 offers a 32 event buffer memory, A24/A32 addressing mode, D16, D32, BLT32/MBLT64 and CBLT32/CBLT64 data transfer mode. Multicast commands are also supported.
A 16 ch. decoupling board Mod. A992 is available for the Mod. V792 to avoid ground loops and signal reflections when long flat cable (110 Ohm) connections to the 50 Ohm inputs are used (one V792 requires two A992 boards).
A 16 channel flat cable to LEMO input adapter, Mod. A392 is also available for the Mod. V792 (one V792 requires two A392 boards).
The board supports the live insertion that allows inserting or removing them into the crate without switching it off.

Technical Specifications

Packaging

1-unit wide 6U VME module (version AA requires the V430 backplane)

Inputs

32 channels, 50 Ω impedance, negative polarity, DC coupling

Input range

0 ÷ 400 pC (if Sliding Scale is used FSR is reduced from 4095 to 3840 counts)

Resolution

12 bit

Gain

100 fC/count

Max. tolerated positive voltage input

15 mV

Reflections

< 5% with 2 ns fall time input signals

Input offset

±2 mV

RMS Noise

0.5 counts typical

Noise

Gate width (ns) / Iped (count) / Average (count) / σ (count)
100 / 180 / 107.58 / 0.50
500 / 180 / 326.44 / 0.54
1000 / 180 / 597.32 / 0.56
2000 / 180 / 1139.92 / 0.61
Measured with GATE input only (no input on QDC channels)

Integral non linearity

0.1% of FSR (=3840 counts)
from 5% to 95% of FSR

Interchannel gain uniformity

±4%

Interchannel Isolation

> 60 dB

Power rejection

0.002 count/mV (+5V); 0.01 count/mV (-5V)
0.0046 count/mV (+12V); 0.0012 count/mV (-12V)

Fast clear time

600 ns

Gate timing

the Gate signal must precede the analog input by > 15 ns

Conversion time

5.7 µs for all channels

Zero suppression

Treshold values programmable in:
16 ADC counts steps over the entire FSR
2 ADC counts steps over 1/8 of FSR

GATE/COM input

NIM signal, high impedance
temporal window for current integration

Control inputs

Active-high, differential ECL input signals:

  • GATE: temporal window for current integration
  • RST: resets QAC sections, MEB status and control registers
  • VETO: inhibits the conversion of the QAC signals
  • FCLR: FAST CLEAR of QAC sections
Control outputs

Differential ECL output signals:

  • DRDY: indicates the presence of data
  • BUSY: board full, resetting, converting or in MEMORY TEST mode
VME interface

A24/A32
Geographical Addressing
Multicast commands
D16/D32,BLT32/MBLT64,CBLT32/CBLT64

Compare

Compare with QDCs.

Loading...

Accessories

A992
16 Channel Impedance Adapter
A392
Adapter 16x LEMO 00 female (or MCX male) to 2.54mm 34-pin female – 50 cm / 1 m

Ordering Options

Code Description
WV792XACAAAA V792AC - 32 Channel Multievent Charge ADC (No JAUX, No 12V DCDC, live ins)   RoHS
