1-unit wide VME 6U module
Four DB9 connectors with ±6 V, ±12 V, ±24 V each
Low Ripple
Monitoring of all 6 voltages on each output
Protection of all voltages by self-recovering electronical fuses
Individually filtered outputs to ensure low noise operation
Standard voltage output compatible with electronics by CAEN and many other manufacturers

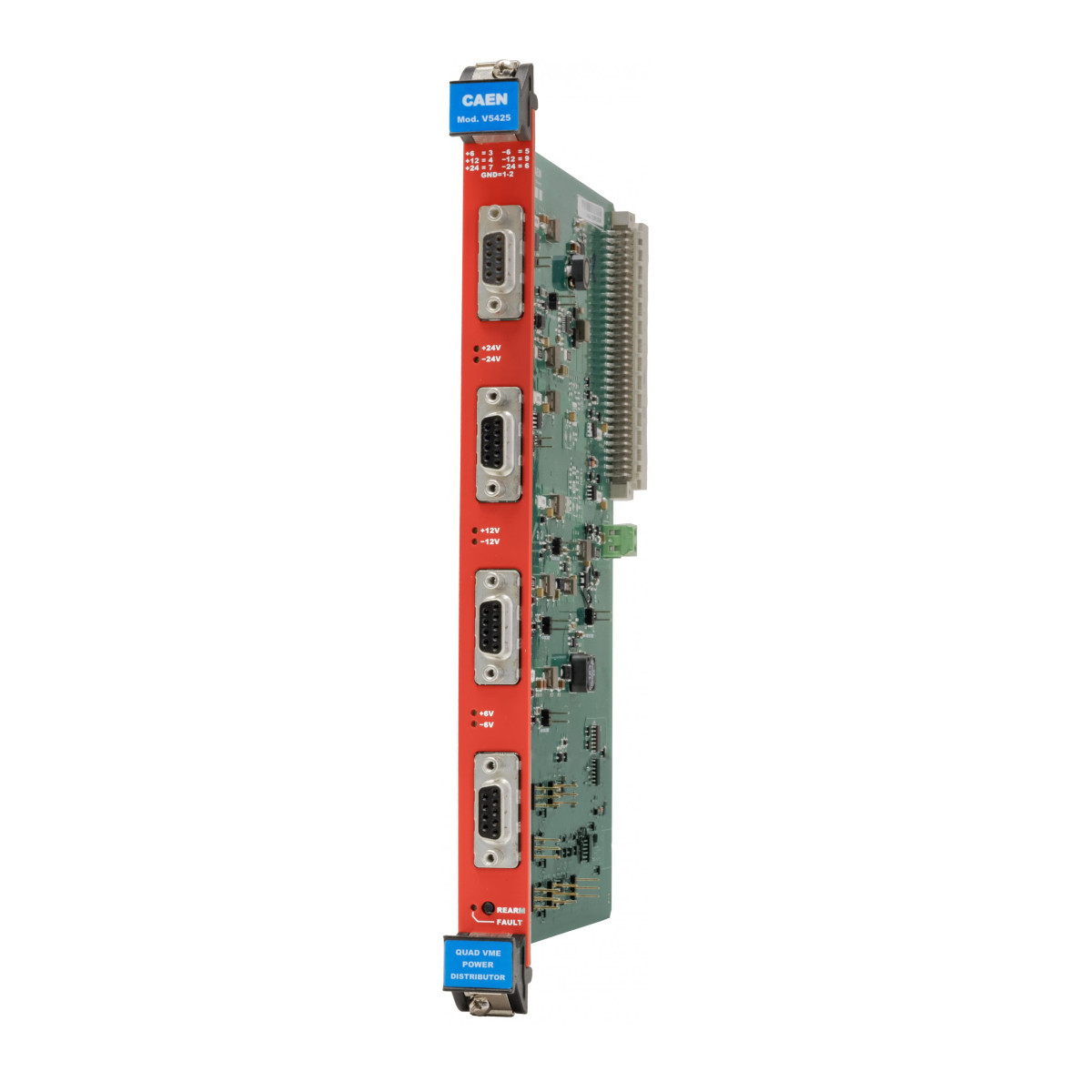

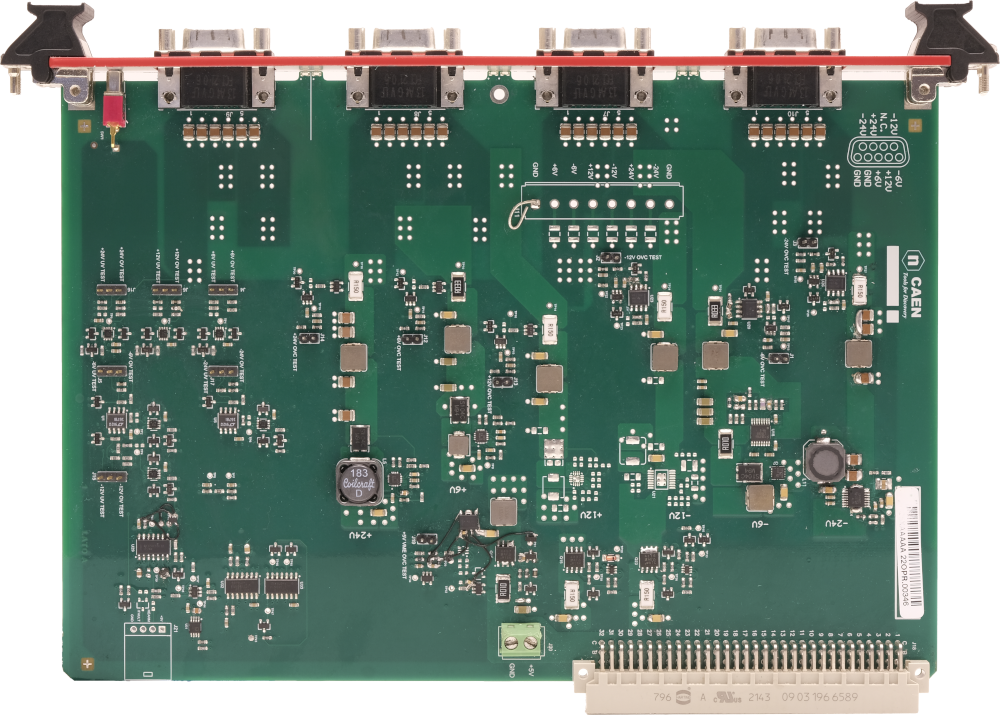

The CAEN Mod. V5425 is a 4-channel VME power distribution module housed in a 1-unit wide VME 6U form factor. It converts the power supplies provided by a VME crate into ±6 V, ±12 V and ±24 V outputs, suitable for preamplifiers and other devices. Its standard output voltages are compatible with electronics by CAEN and many other manufacturers.

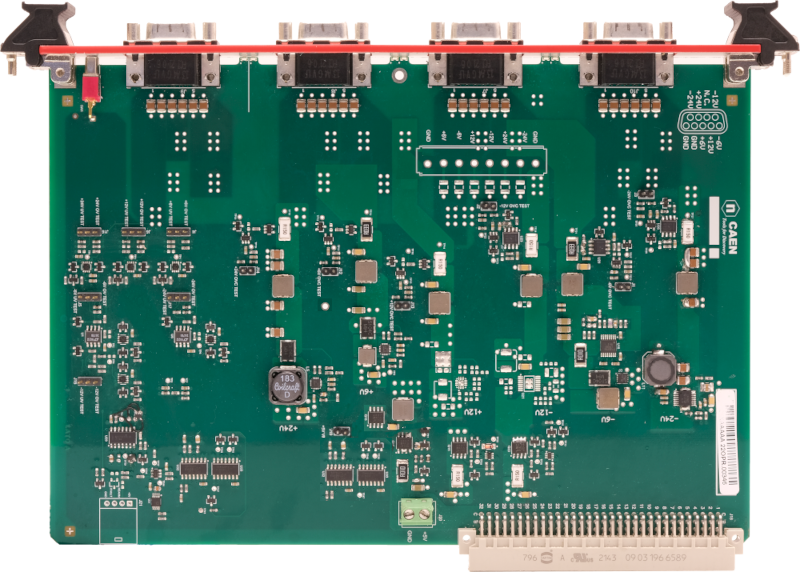

The output voltages are delivered through four Sub D9 female connectors, each providing all six rails (±6 V, ±12 V and ±24 V). The total output power is 36 W, with a maximum of 24 W on the ±6 V outputs and 24 W on the ±24 V outputs. For technical information on the D-Sub9 connector, see our connectors reference page.
Low-noise preamplifiers need DC power that is free of interference from other modules in the VME crate. The V5425 meets this need by filtering the power lines separately at each connector, so every output operates with low noise and low ripple.
The module also protects and monitors every output. Self-recovering electronic fuses protect each voltage output and automatically restore operation after a short circuit. All six voltages are monitored on each output, and LEDs display their status.
|
|
Name
|
Package
|
No. of Channels
|
Pre-Amp Supply
|
Digitizer Supply
|
Connectors
|
Noise
|
|
|
V5425 |
VME |
Pre-Amp: 4 |
+6 V / 2 A<br>-6 V / 1.5 A<br>±12 V / 500 mA<br>±24 V / 250 mA |
N.A. |
Pre-Amp: 4 Sub D9 female |
±6 V < 1 mVpp<br>±12 V ±24 V < 2 mVpp |
|
|
DT5423 |
Desktop |
Pre-Amp: 4<br>Digitizer: 1 |
+12 V / 400 mA<br>-12 V / 200 mA |
+12 V / 2.1 A |
Pre-Amp: 4 Sub D9 female <br>Digitizer: Mini DIN 6 pos Shielded |
±12 V < 5 mVpp (Pre-Amp)<br>+12 V < 10 mVpp (Digitizer) |
|
|
N5424 |
NIM |
Pre-Amp: 4 |
±6 V / 1 A<br/>±12 V / 1 A<br/>±24 V / 100 mA |
N.A. |
Pre-Amp: 4 Sub D9 female |
±6 V < 2 mVpp<br>±12 V ±24 V < 3 mVpp |
|
Mechanical Packaging |
1-unit wide VME 6U module; weight: 280g |
|
Power Requirements |
Output: ±24V @ 0.25A, ±12V @ 0.5A, -6V @ 1.5A, +6V @400mA (36W out total). Consumption: ±12V: 600 mA, +5V: 6.1A Output: No Load. Consumption: ±12V: 0A; +5V: 200mA |
|
Output Connectors |
Power Supply output; 4 Sub D9 female connectors |
|
Displays |
±6V, ±12V, ±24V: green LEDs; power supply OK when ON. Fault: red LED, error status when ON |
|
Push button |
Rearm: restore operation after an error status (Fault LED) is detected; Fault cause must be removed before sending Rearm |
|
Maximum Output Power |
Total: 36W; ±6V: 24W; ±24V: 24W |
|
Current Output |
Voltage, Max Current at full load, Nominal current +6V, 2.14 A, 2 A -6V, 1.62 A, 1.5 A +12V, 560 mA, 500 mA -12V, 530 mA, 500 mA +24V, 272 mA, 250 mA -24V, 275 mA, 250 mA |
|
Voltage drop at full load |
Voltage, Drop (%)
|
|
Voltage Ripple |
(typical values, 16Hz ÷ 20MHz bandwidth) |
|
Vout / Temperature coefficient 10°C ÷ 60°C range |
|
|
Environmental |
Indoor use |
|
Operating Temperature |
-20 °C ÷ 50 °C |
|
Operating Humidity |
25% ÷ 95% RH non condensing |
|
Storage Temperature |
-30 °C ÷ +80 °C |
|
Storage Humidity |
5% ÷ 90% RH non condensing |
|
Altitude |
≤2000 m |
|
Pollution Degree |
2 |
|
Overvoltage Category |
|| |
|
EMC Environment |
Commercial and light industrial |
|
IP Degree |
IPX0 enclosure, not for wet location |
|
Compliance |
|
