N914

8 Fold Charge Preamp / Discriminator & Linear Fan-In

Features

  • Designed to process signals generated by Photomultipliers
  • 8 channel charge preamplifier and integrator
  • Dual sensitivity (-0.83 mV/pC and -8.3 mV/pC)
  • Built-in discriminator delivers:
    • Majority output
    • LVDS signal for arrival times detection
  • Sum outputs available

Overview

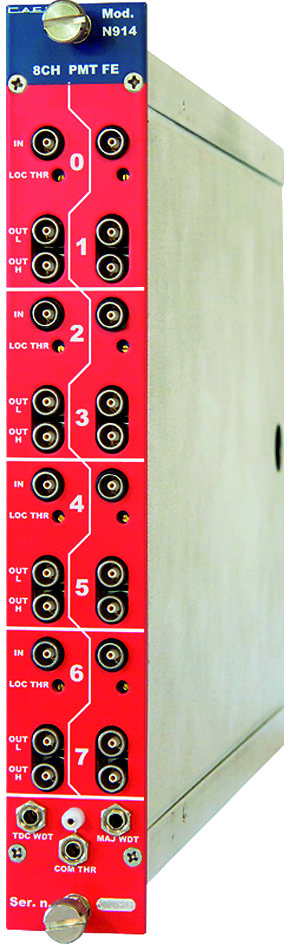

The CAEN Mod.N914 is a 8 channel charge preamplifier and integrator, implemented in a single-width NIM module. It is designed to process signals generated by Photomultipliers. The module is provided with LEMO 00 connectors for both input and output signals, except the T# output which is provided through a 16 pin flat cable connector. The Photomultiplier signal at the input is buffered and processed in several ways:

  • The OL# output provides the signal processed by a gateless charge preamplifier and integrator.
  • The OH# output provides the signal processed by a gateless charge preamplifier and integrator, followed by a 10x gain stage.
  • The OLSUM output provides the analog sum of the OL# outputs.
  • The OHSUM output provides the analog sum of the OH# outputs.
  • The ASUM output provides the analog sum of the CH# inputs.
  • The MALU output provides a step function (Majority) with a height proportional to the number of channels simultaneously over a threshold settable individually or globally.
  • The T_OUT# output provides a discriminator output converted into a LVDS signal to be sent to a TDC for arrival times recording.

Technical Specifications

Packaging

One unit wide NIM unit

Sensitivity

OUTL#: 0.83 mV/pC
OUTH#: 8.3 mV/pC

TDC output width

250 ns ÷ 5 µs

Majority width

250 ns ÷ 5 µs

Majority step amplitude

40 mV/channel

Integrator time constant

1.2 nF // 100 kΩ

ASUM out bandwidth

150 MHz

Discriminator Sensitivity

15 mV

Ordering Options

Code Description
WN914WXAAAAA N914 - 8 fold Photomultiplier Pulse Processor   RoHS
