N89
NIM - TTL - NIM Adapter
Features
- 8 NIM-TTL, 8 TTL-NIM translator channels.
- Less than 10 ns input/output delay.
- 60 MHz max. operating frequency.
- No duty-cycle limitations.
Overview

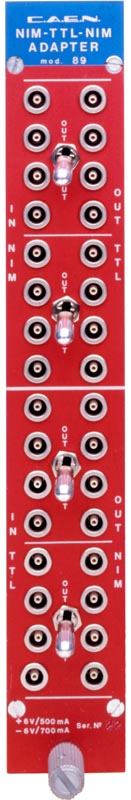

The Mod. N89 is a one unit wide NIM module housing two sections of 4 NIM to TTL converters and two sections of 4 TTL to NIM converters. All inputs are DC coupled.
On each section, a front panel switch allows logic inversion of the output signals.
The unit is capable of driving remote 50 Ohm loads with minimum signal degradation. Fast rise and fall times (2 ns) ensure reliable performance
at minimum pulse width (10 ns) and maximum frequency (60 MHz).
Technical Specifications
- Packaging
One unit wide NIM module.
- Inputs
8 channel, 50 Ohm impedance
- Min. input pulse width
10 ns (NIM-TTL) ; 12 ns (TTL-NIM)
- Output pulse amplitude
> 2 V (NIM-TTL); 800 mV (TTL-NIM)
- Rise- and fall-time
< 3 ns (NIM-TTL); < 2 ns (TTL-NIM)
- Input-Output delay
< 8 ns (NIM-TTL); < 10 ns (TTL-NIM)
- Max. operating frequency
60 MHz (NIM-TTL); 40 MHz (TTL-NIM)
Compare
Compare with Translators.
Loading...
Ordering Options
| Code | Description |
|---|---|
| WN89XXAAAAAA | N89 - NIM-TTL-NIM Adapter RoHS |
