GAMON-Diver

New

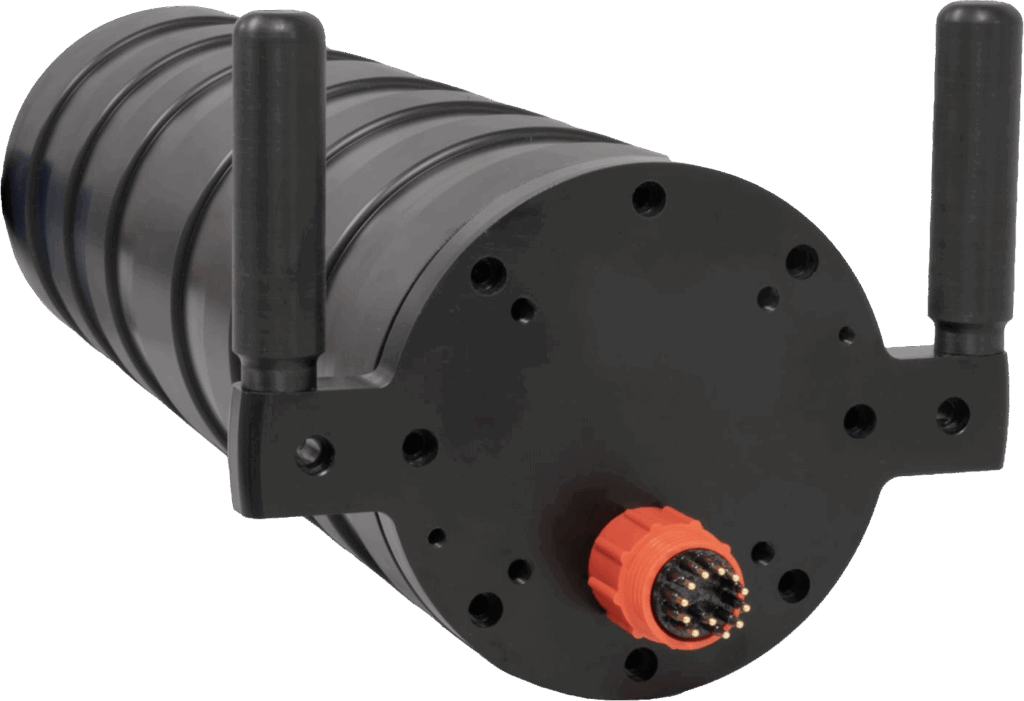

Compact Underwater System for Radionuclides Identification

Features

  • Underwater system for up to 450 m depth (45 ATM) in both fresh or salted water for radiological search by diver operator or in static conditions
  • Rechargeable and Hot Swap battery for daily measurements (8h of operation with battery)
  • Integrated GPS used for easy mapping of the measurements
  • Wired communication during the measurement session and also wireless capability for the configuration of the system
  • Easy probe cleaning

Overview

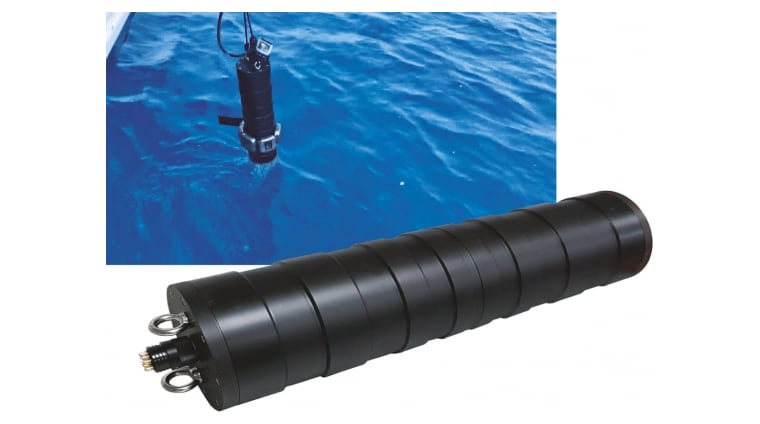

The GAMON-Diver is a highly efficient spectroscopic measurement system designed to perform for underwater radiometric measurement. The system can be deployed in multiple scenarios for gamma radionuclide identification in case of accident mitigation, first emergency response or can be installed as a long term monitoring device for sensitive underwater locations as port access points, nuclear facilities and Oil&Gas infrastructures.

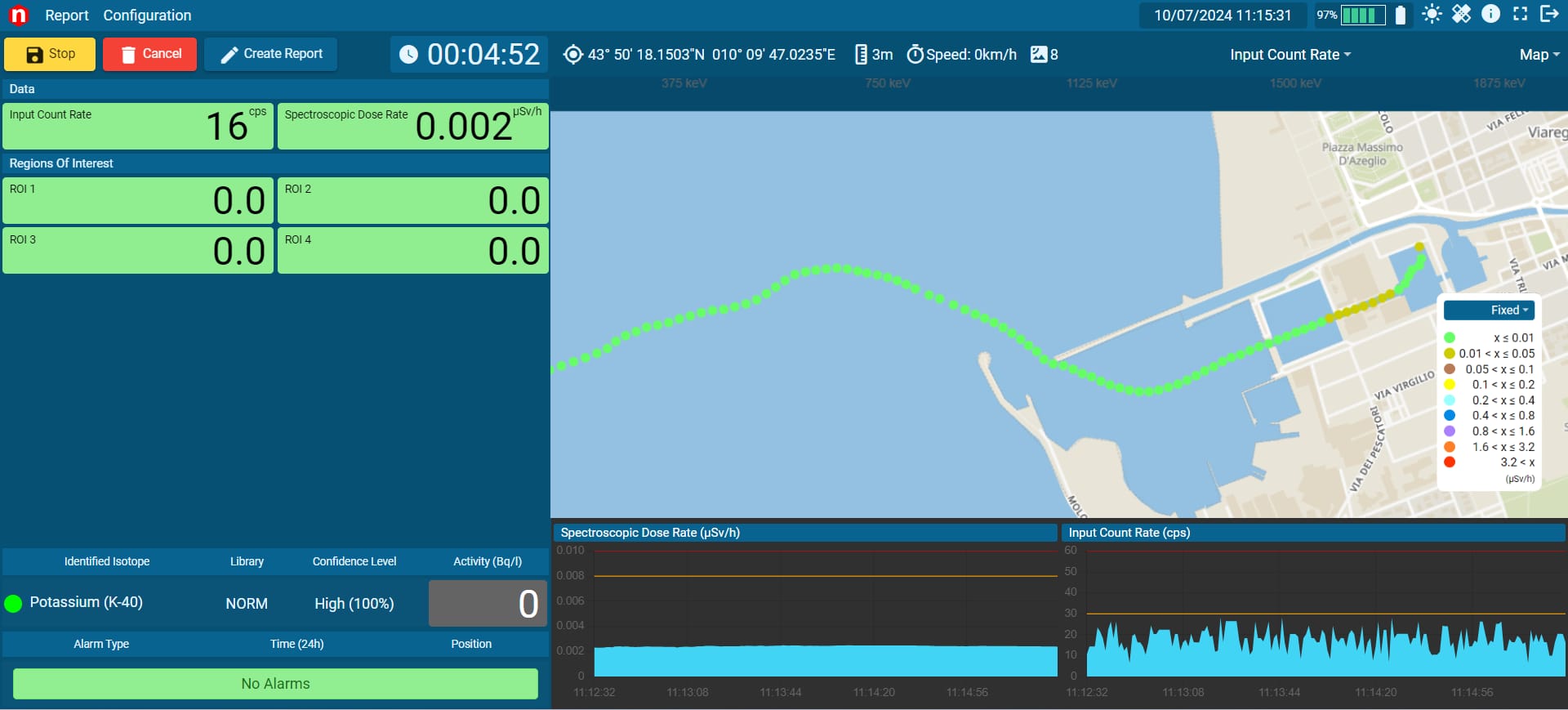

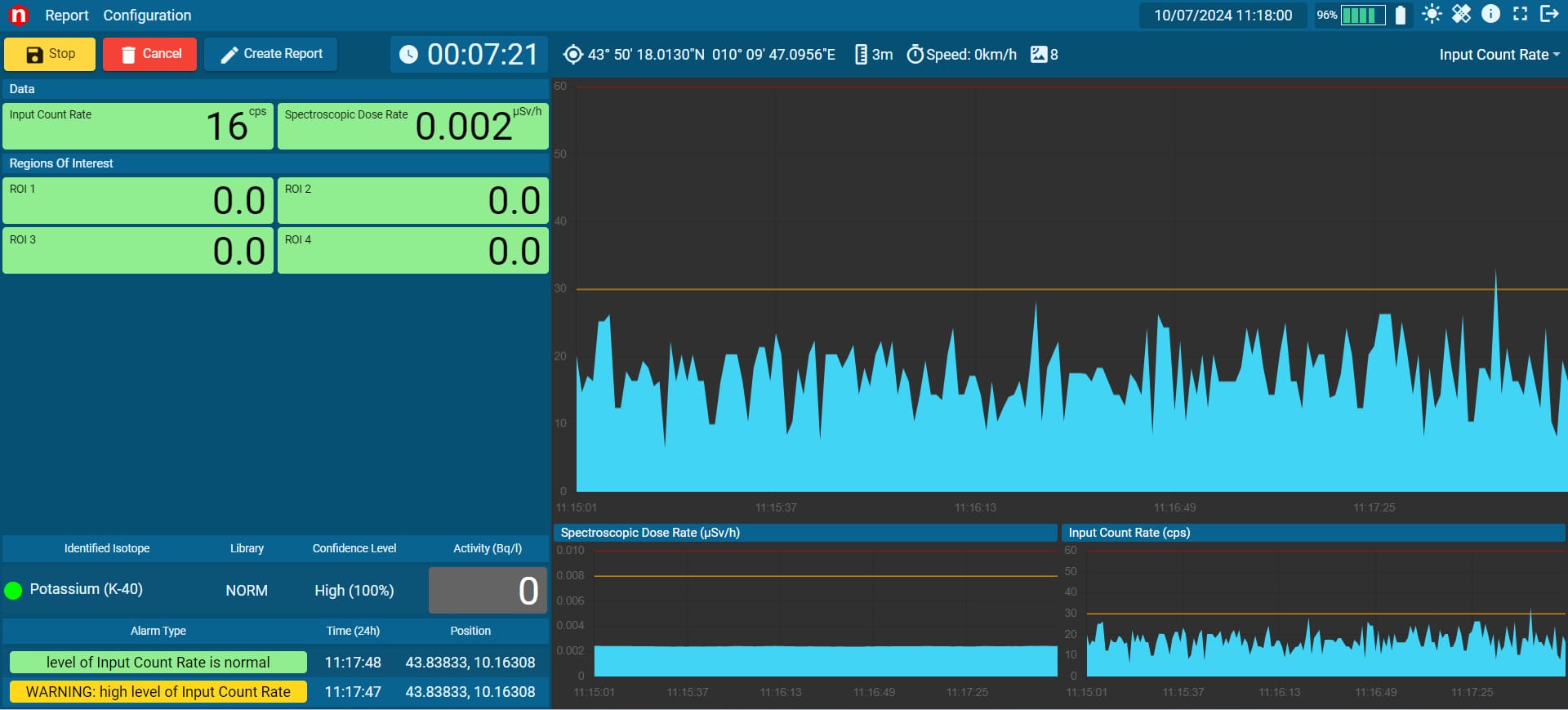

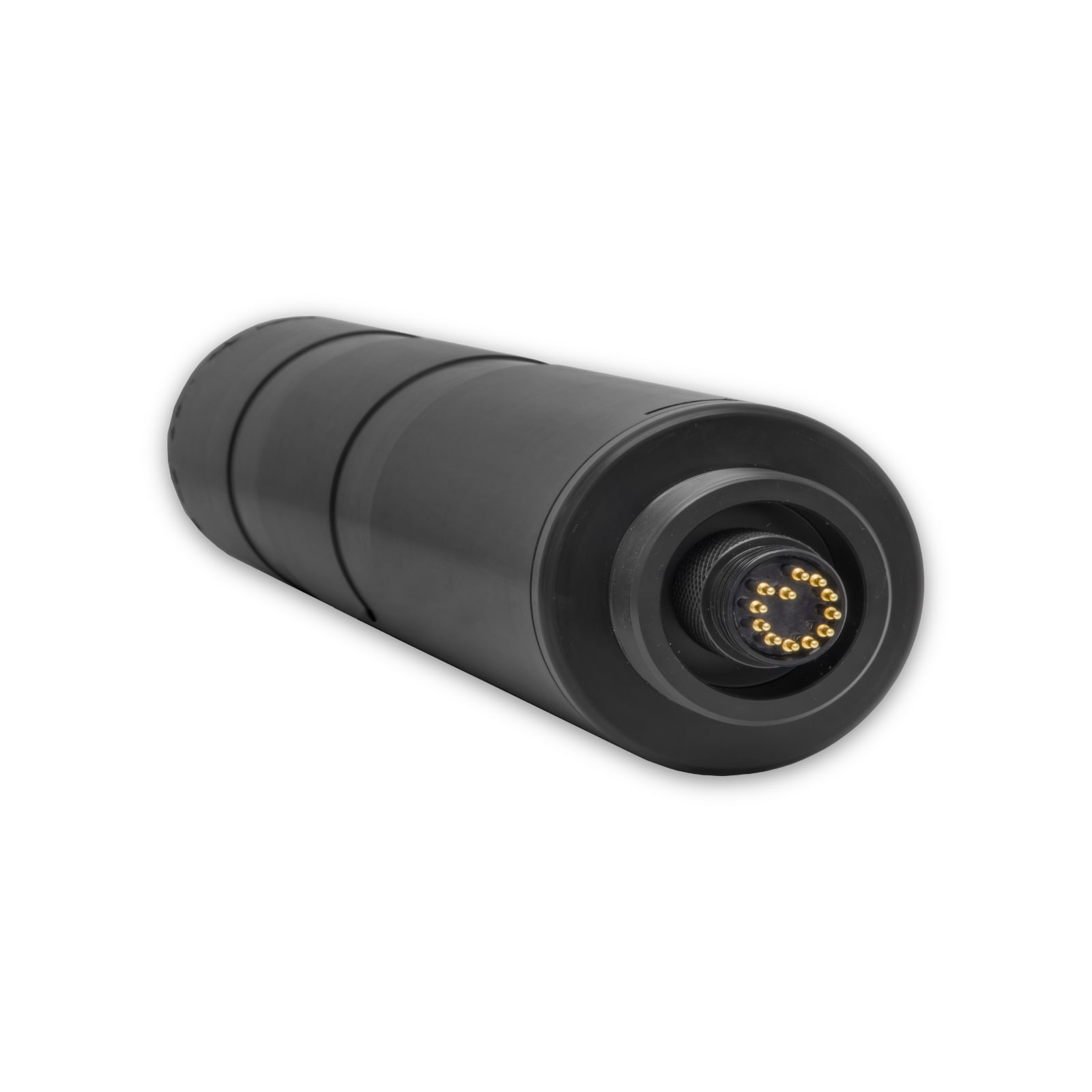

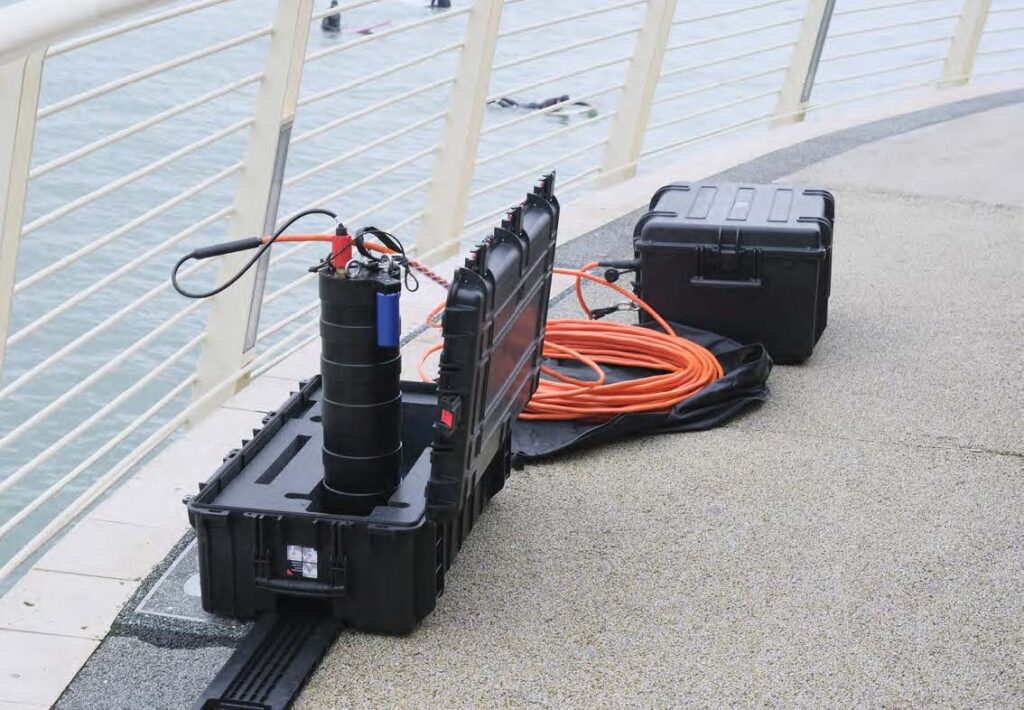

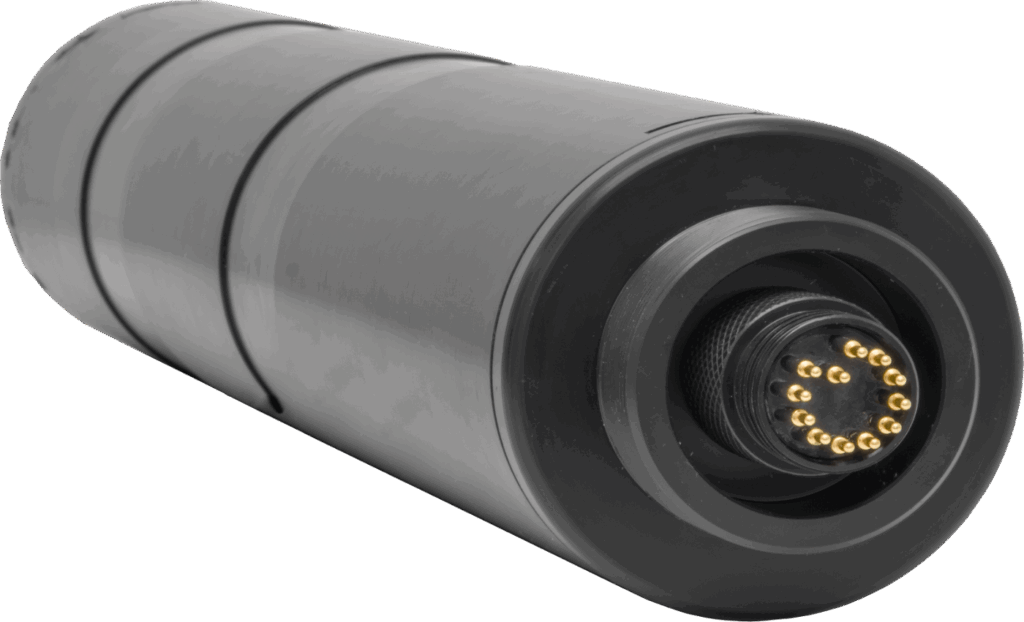

The GAMON-Diver can be deployed in salt and freshwater. It can be used for dynamic mobile underwater searches or stably mounted on a buoy for gamma spectroscopic measurements in real time. In dynamic search mode, the operator on the surface can read the data in real time with quick ALARM and data readings and GPS positioning. For long term environmental monitoring the data is transmitted to a central monitoring station that gather together the information of the deployed sensor network.

The hermetic case allows the instrument to operate at depths of 450 meters (45 ATM in water). GAMON-Diver can identify gamma-emitting radionuclides and differentiate them based on the category they belong to, distinguishing between NORM, medical and industrial.

GAMON-Diver runs y spectrum analysis algorithms that can perform simultaneous identification of multiple radiological sources and provides quantitative measurements in terms of dose and activity per radionuclide with its built in detector efficiency calibration.

The user can select the isotopes to be identified from the library and adjust the thresholds of the isotope related alarms. The spectrum stabilization can be obtained with the identification of natural occurring radionuclides as the 40K.

Operative Application

  • Detection and monitoring of water reservoir, lakes, ports or sea.
  • Dynamic underwater searches by diver operators
  • Long term monitoring of the environmental conditions in rivers or after a nuclear power plant or before a water extraction point.
  • Control of the NORM content in the Oil&Gas waste like accumulated sludge from the extraction process.
  • Control of underwater Oil&Gas pipes
  • Monitoring of underwater radioactive leakages

Technical Specifications

Scintillation Detectors
  • 3”x3” or 2”x2” NaI(Tl)
    • Energy range:40 – 3000 keV
    • Energy resolution:FWHM @ 662 keV: 7.0%
  • 2”x2” CeBr3
    • Energy range:40 – 3000 keV
    • Energy resolution:FWHM @ 662 keV: 4.0%
  • Other scintillators size and types on request
Spectrometer dimensions and weight
  • Diameter: 15 cm
  • Height: 54 cm
  • Weight: 11 Kg
  • Immersion depth up to 450 m in water
Surface Unit Interfaces
  • Ethernet RJ45
  • Communication protocol TCP/IP
  • Connector protection level IP68
  • WiFi
Environmental

Temperature range -10 ÷ 50 °C

Sensors
  • Internal temperature sensor for stabilization
  • GPS in the surface unit.
Data acquisition
  • MCA depth: 2048 channels
  • Digital signal processing
Embedded PC
  • Low power ARM based CPU
  • Linux based operative system
  • 8 GB internal data storage
Software
  • Integrated web interface
  • Local database and data repository
  • Nuclide analysis
  • Configurable spectrum stabilization with natural background
  • Configurable isotope library
  • Adjustable isotope related alarms
  • Installed and stand-alone GIS map server
Power supply
  • Power consumption: 5 to 10 W depending on acquisition mode, 12 V
  • Voltage: 5 ÷ 12 VDC
  • Li-Ion battery for >8 hours operation in surface unit
Standard Military Tablet 10.1”
  • IP65
  • Temperature range -10 ÷ 50 °C (battery mode)
  • drop test resistance up to 1.2 m
  • MIL-STD-810G shock, vibration and drop resistant

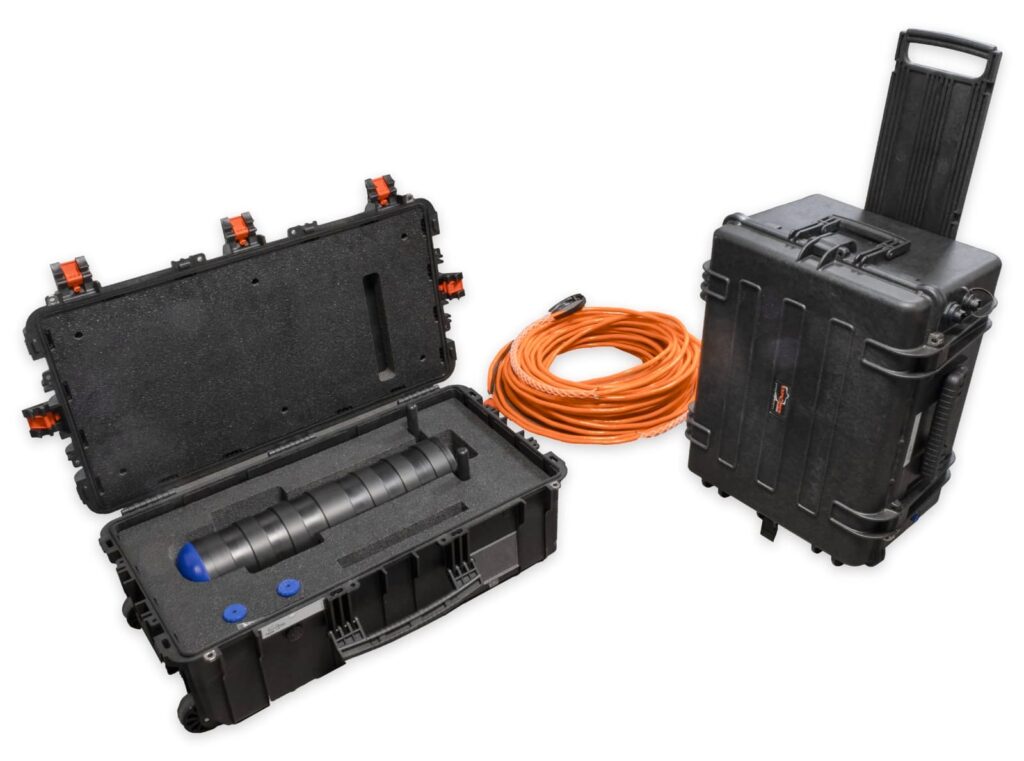

Package includes
  • Submersible Gamma Spectrometer
  • Spectrometer handles and lead weight kits
  • IP67 Case containing Power Supply/Battery
  • IP67 Ethernet cable
  • Military Tablet 10.1”
  • Preinstalled GIS map for 1 selected region
  • Other Optional Tablets or Laptops under request
Cable options
  • WAGDIVCAB050, 50 m marine cable
  • WAGDIVCAB090, 90 m marine cable
  • WAGDIVREL001, cable reel up to 100 m
  • WAGDIVREL002, cable reel up to 50 m

Compare

Compare with GAMON Platform.

Loading...

Ordering Options

Code Description
WAGDIVCAB090 GAMON-Diver marine cable 90 m
WSGDIVMNAAAB GAMON-Diver mobile NaI 2"x2"   RoHS
WSGDIVMNAAAC GAMON-Diver mobile NaI 3"x3"   RoHS
WSGDIVSNAAAB GAMON-Diver station NaI 2"x2"   RoHS
WSGDIVSNAAAC GAMON-Diver station NaI 3"x3"   RoHS
WAGDIVCAB050 GAMON-Diver marine cable 50 m
WAGDIVCABXAA GAMON-Diver laboratory cable 3 m
WAGDIVREL001 GAMON-Diver cable reel 100 m
WAGDIVREL002 GAMON-Diver cable reel 50 m
WAGDIVREL003 GAMON-Diver cable reel 2 m
