V977

16 Channel Input/Output Register (Status A)

Features

  • NIM and TTL inputs/outputs
  • Individual channel enabling/disabling
  • Software Input/Output generation
  • Fully programmable RORA Interrupter
  • Pushbutton TEST signal
  • Status A capabilities
  • Live insertion

Overview

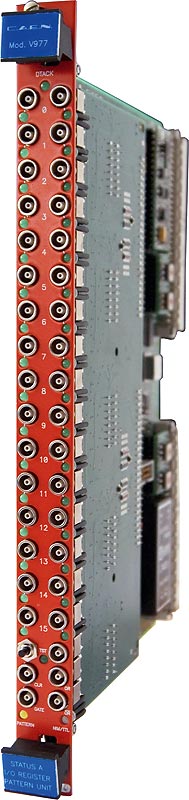

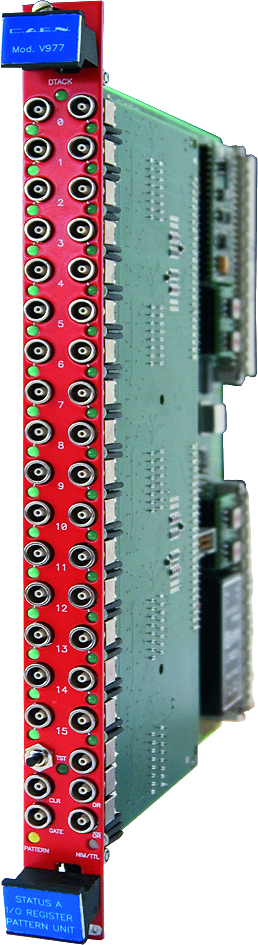

The Mod. V977 is a 1-unit wide VME module that can work either as 16 channel general purpose I/O Register or as Multihit Pattern Unit; the operating mode is selected via VME and is signalled via front panel LEDs. The module has 16 Inputs/Outputs; an on-board switch allows to select between NIM and TTL output signals, NIM and TTL input signals are both accepted; 2 Leds signal the I/O status of each channel. The module features an additional channel (TEST CHANNEL), which allows to send a test pulse via a front panel pushbutton. Input channels can be individually/globally masked via VME or globally via a front panel GATE input. The channel status can be cleared either via VME or via the front panel common CLEAR input. The channels global OR and /OR outputs are available as front panel signals and can be eventually masked. GATE and CLEAR signals can be either NIM or TTL; OR and /OR can be set at NIM or TTL level in the same way of the output channels.

The module houses also a fully programmable VME RORA INTERRUPTER that generates a VME interrupt request when the OR of a selected set of output channels has a TRUE status. Live insertion is supported.

Technical Specifications

Packaging

1-unit wide, 6U high VME module

Input channels

16 + 1 TEST CHANNEL, NIM/TTL, 50 Ohm

Output channels

16, NIM/TTL (selectable), to be terminated on 50 Ohm

Monimum input width

2 ns

I/O delay

T.B.D.

Double pulse resolution

5 ns

Output rise/fall time

NIM: 1/1 ns; TTL: 3/3 ns

Power Requirements

+5 V (current absorption 2.3A)

Compare

Compare with I/O Registers.

Loading...

Ordering Options

Code Description
WV977XBAAAAA V977B - 16 Channel I/O Register (Status A) no JAUX   RoHS
