A5251

New

Hamamatsu MPPC header adapter for A5202/DT5202 & A5204/DT5204

Features

  • Adapts to a couple of Samtec SS4‐40‐3.0‐LDK‐TR connectors

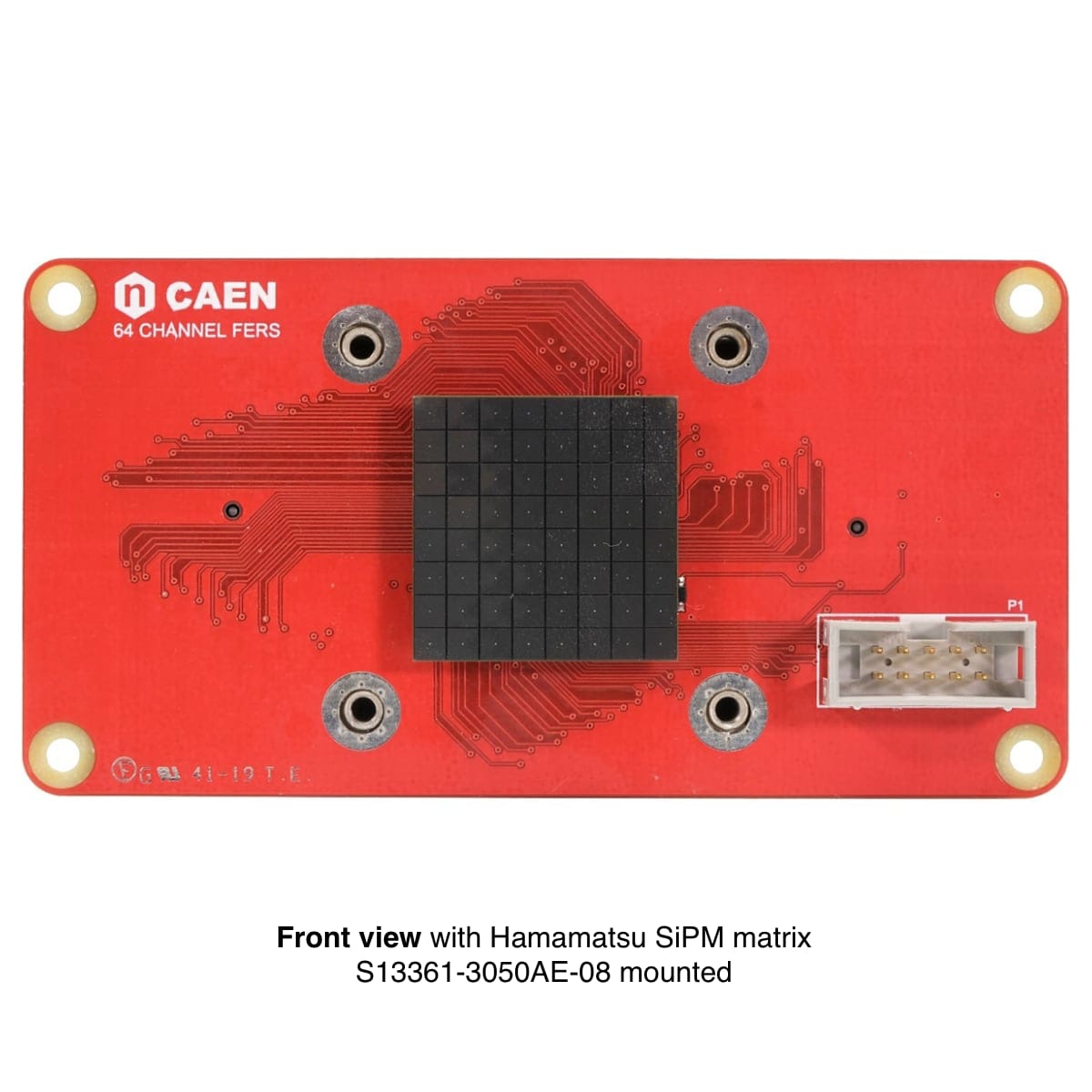

  • Compatible with Hamamatsu SiPM matrix S13361‐3050AE‐08
  • Equipped with a TMP37 temperature readout sensor
  • Dark plastic box included
  • Matches with all 5202 and 5204 form factors (A5202/DT5202, A5204/DT5204)

Overview

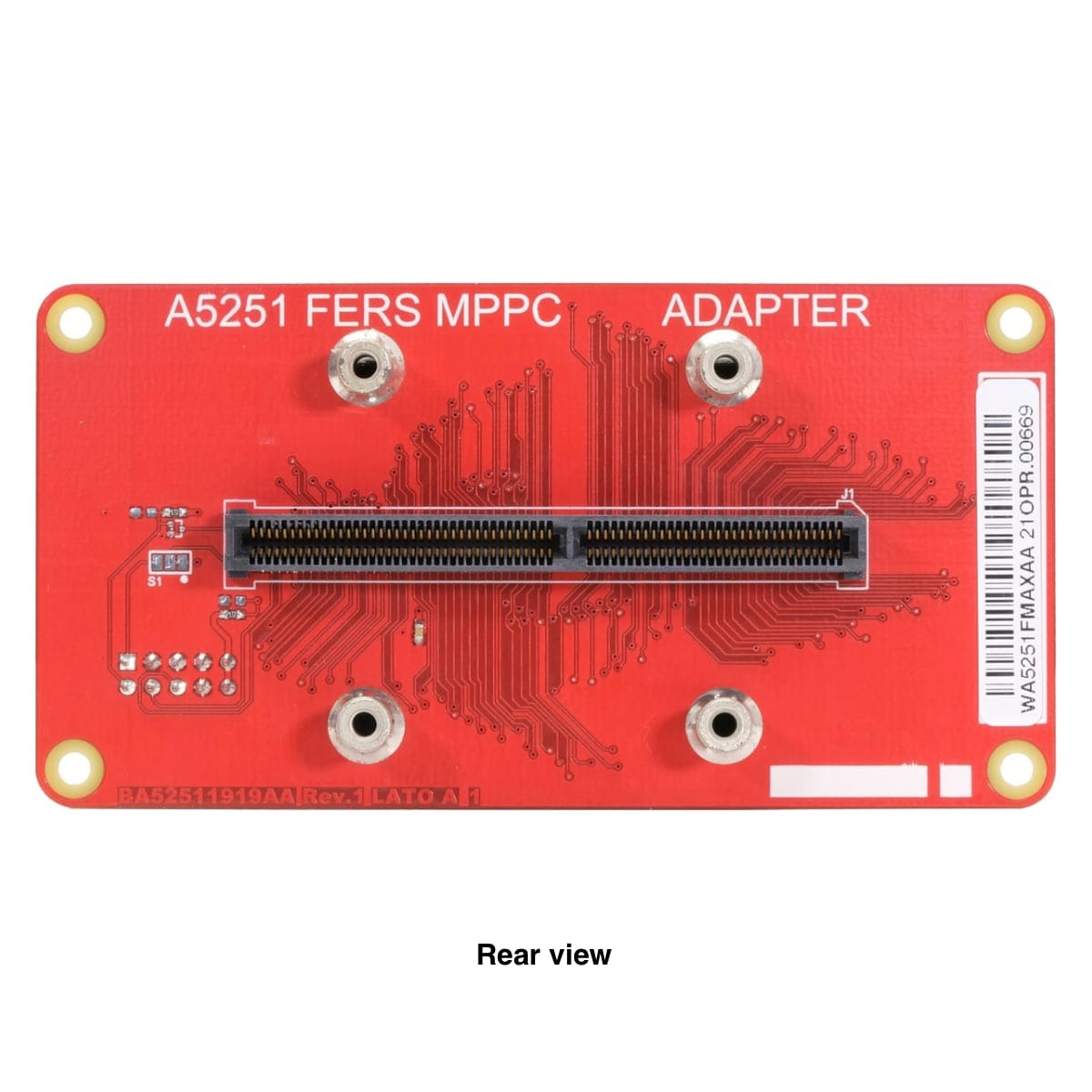

The A5251 adapter is compliant with A5202/DT5202 and A5204/DT5204 boards. It mechanically adapts from the input edge card connector (type HSEC8‐170) to a couple of Samtec SS4‐40‐3.0‐L-D-K‐TR connectors. The adapter is suited for biasing and reading out an 8×8 Hamamatsu S13361‐3050AE‐08 SiPM matrix. The A5251 is also equipped with a TMP37 temperature sensor. A dark plastic box is also included in the delivered kit, which is ideal for shielding environmental light and pulsing the matrix via the fiber optic connector placed on top of it.

Compare

Compare with Fers Adapters.

Loading...

Ordering Options

Code Description
WA5251FMAXAA A5251 - MPPC header adapter for A5202/DT5202   RoHS
