A1632H
New
8 Channel 6kV/100-20µA Individual Floating Channel Dual Range Board
Features
- 8 independently controllable individual floating channels
- 6kV / 100 – 20 µA output range
- 100 mV voltage monitor resolution
- Current monitor resolution:
- high range: 1 nA
- low range: 50 pA
- Programmable voltage ramp up / down rates
- Typical voltage ripple smaller than 3 mVpp (1 KHz ÷ 20 MHz)
- Overcurrent programmable protections
- Programmable TRIP parameter
- SHV connectors
- Current generator operation in overcurrent condition
Overview

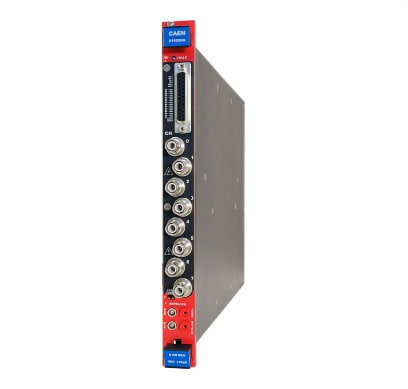

The CAEN Mod.A1632H is a single width board (5 TE wide) that houses 8 individual floating channels, delivered through SHV connectors. The output voltage is 0 ÷ 6000 V with 100 mV set/monitor resolution. The maximum current value is either 100 µA or 20 µA with a 2 nA and 50 pA setting resolution, respectively.
|
SHV connector
Single width (5 TE wide), 8 channels for Mod. A1632H |
Consult our connectors reference page for technical information.
The channels share a Individual Floating Channels, which allows on-detector grounding, reducing the noise level. A global enable/disable connector allows to disable the channels. The voltage ramp rates may be set independently for each channel and offer dual current ranges (software selectable).
The output channels offer dual current ranges (software selectable).
| High Power | 0 ÷ 100 µA | I set resolution: | 2 nA | I mon resolution: | 1 nA | Max. power: | 0.6W |
| High Resolution: | 0 ÷ 20 µA | I set resolution: | 2 nA | I mon resolution: | 50 pA |
Independently programmable for each channel:
| Output voltage | 0 ÷ 6 kV | step: 100 mV |
| Current limit | 0 ÷ 100 µA / 0 ÷ 20 µA | step: 2 nA |
| HV Ramp up/down | 1 ÷ 500 V/sec | step: 1 V/sec |
| TRIP parameter | 0 ÷ 999.9 s; 1000 s = Infinite | step: 0.1 s |
Safety features allows the module to perform as a current generator and includes:
| Channels | can be enabled or disabled through the Global Interlock logic. |
| Remote Enable/Disable | front panel independent contacts available for all channels. |
| Overvoltage and Undervoltage warning | when the output voltage differs from the programmed value. |
| Overcurrent detection | when a channel attempts to exceed the programmed current limit, it signalled to be in “overcurrent” and enter in a TRIP status. The output voltage is varied to keep the current below the programmed limit for a programmable TRIP time, then the channel is switched off. If TRIP is set to “constant current mode”, the channel behaves like a current generator. |
| Hardware VMAX | maximum output voltage can be set, via front panel potentiometer, at the same common value for all the board channels. VMAX value can be read out via software. |
Technical Specifications
- No. of Channels
8 Individual Floating (±50V isolation)
- Polarity
Available positive or negative
- Output Voltage
0 ÷ 6000 V
- Max Current
- High range: 100 µA
- Low range: 20 µA
- Voltage Set Resolution
100 mV
- Voltage Monitor Resolution
100 mV
- Current Set Resolution
2 nA
- Current Monitor Resolution
- Low range: 50 pA
- High range: 1 nA
- VMAX hardware
0÷6000 V common to all channels
- VMAX software
0÷6000 V settable for each channel
- VMAX software resolution
1V
- Ramp Up/Down
1÷500 Volt/sec, 1 Volt/sec step
- Trip
Max. time an “overcurrent” is allowed to last (seconds). A channel in “overcurrent” works as a current generator; output voltage varies to keep the output current lower than the programmed value. “Overcurrent” lasting more than set value (1 to 9999) causes the channel to “trip”. Output voltage will drop to zero either at the Ramp-down rate or at the fastest available rate, depending on Power Down setting; in both cases the channel is put in the off state. If trip= INFINITE, “overcurrent” lasts indefinitely. TRIP range: 0 ÷ 999.9 s; 1000 s = Infinite. Step = 0.1 s
- Ripple (@ max load with 1nF)
1 KHz ÷ 20 MHz - maximum: <5 mV pp
- typical: <3 mV pp
10 Hz ÷ 1 KHz - maximum: <10 mV pp
- typical: <5 mV pp
- Voltage Monitor vs Output Voltage Accuracy
- typical: ±0.05 % ±0.2 V
- maximum: ±0.05 % ±0.5 V
- Voltage Set vs Output Voltage Accuracy
- typical: ±0.05 % ±0.2 V
- maximum: ±0.05 % ±0.5 V
- Current Monitor vs. Output Current Accuracy
- high range typical: ±1% ±20 nA
- high range maximum: ±1% ±50 nA
- low range typical: ±1% ±200 pA
- low range maximum: ±1% ±500 pA
- Current Set vs. Output Current Accuracy
- typical: ±1% ±20 nA
- maximum: ±1% ±50 nA
- Output Connectors
SHV
- Power Requirements
40W max
Compare
Compare with High Voltage Power Supply.
Loading...
Ordering Options
| Code | Description |
|---|---|
| WA1632HNAAAA | A1632HN - SYx527 negative H.V. -6 KV 100 uA - SHV Connector Individual floating (8 ch) RoHS |
| WA1632HPAAAA | A1632HP - SYx527 positive H.V. +6 KV 100 uA - SHV Connector Individual floating (8 ch) RoHS |
