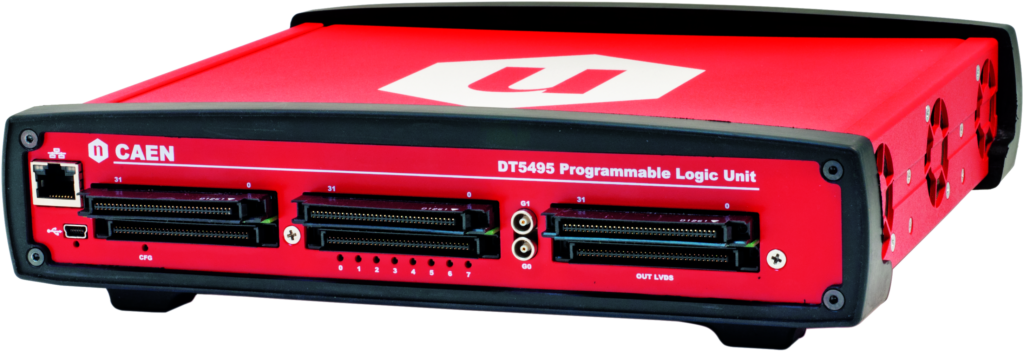

DT5495

Programmable Logic Unit

Features

  • User Programmable FPGA
  • Compact Desktop form factor
  • Up to 162 inputs, up to 130 outputs
  • LVDS/ECL/PECL/NIM/TTL
  • 3 expansion slots for piggyback board:
    • A395A 32 LVDS/ECL/PECL input ch.
    • A395B 32 LVDS output ch.
    • A395C 32 ECL output ch.
    • A395D 8 NIM/TTL input/output ch.
    • A395E 8 Analog output 16bit ch.
  • 32 independent programmable Gate and Delay Generator
  • Ethernet and Mini-USB 2.0 Connection
  • Available in VME version V2495

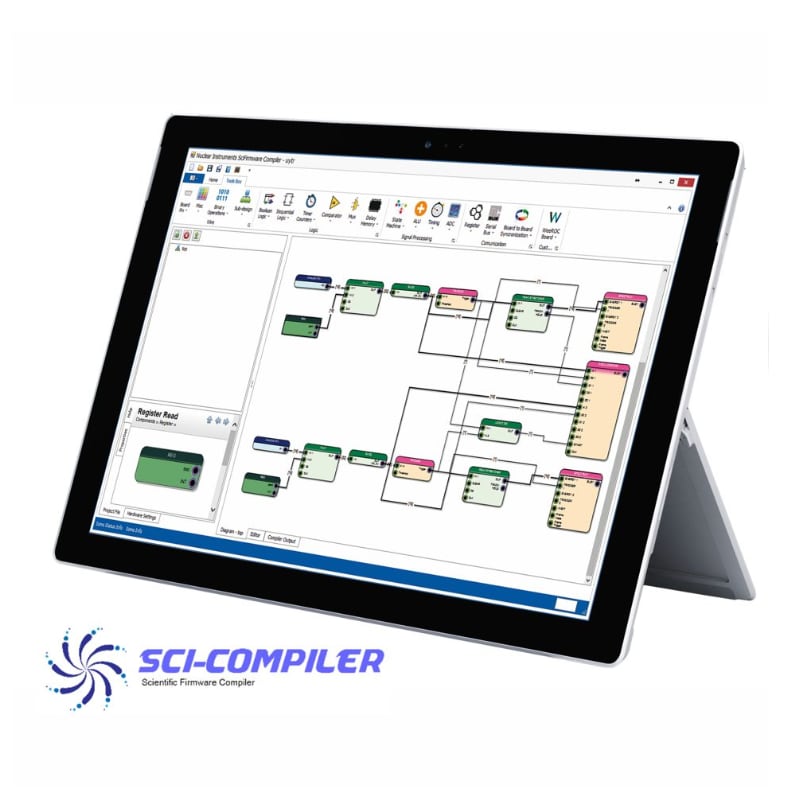

  • Supported by SCI-Compiler software tool

Overview

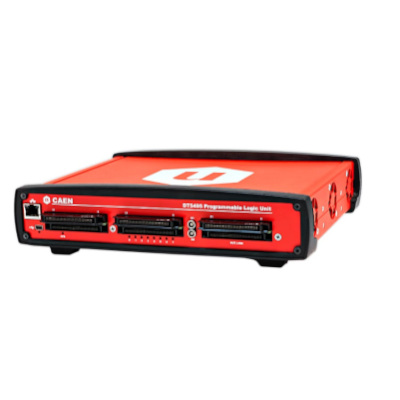

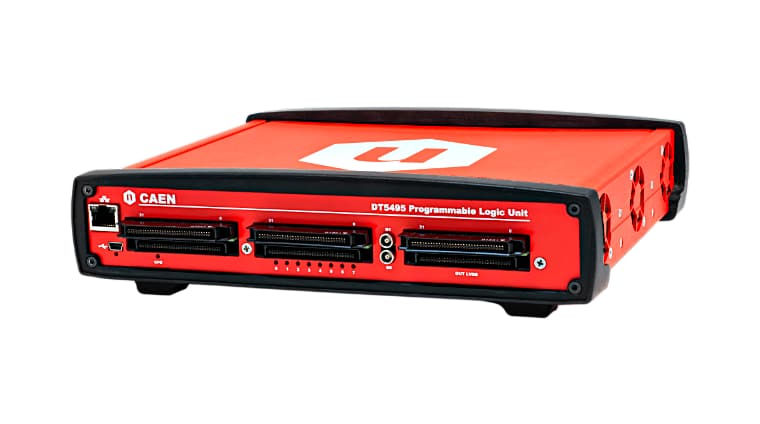

The CAEN Mod.DT5495 is the completely new version of the CAEN bestseller VME General Purpose Programmable Unit V1495. This new design brings a simpler connectivity, a 150% increase in the logic resources, more programmable Gate&Delay generators and it does all this remaining compatible with previous I/O expansion boards. The boards are a suitable solution for the implementation of digital functions such as Coincidence, Trigger Logic, Gate and Delay generator, Input/Output Register and more.

The architecture of the DT5495 is based on the User FPGA (Altera Cyclone V GX C4, 50K Logic Elements) which is directly interfaced to the front panel I/Os (up to 162 inputs and up to 130 outputs) and to an internal local bus.

The DT5495 can be controlled and programmed via Ethernet or Mini-USB on the front panel. A Software tool is provided for free to easily upload the custom Firmware on the User FPGA.

The DT5495 is also completed by 32 internal delay lines that can be used to generate programmable gate and delay signals. The channel interface can be freely expanded by adding up to three independent piggyback boards (there are 3 expansion slots interfaced to the User FPGA), choosing between the five available types:

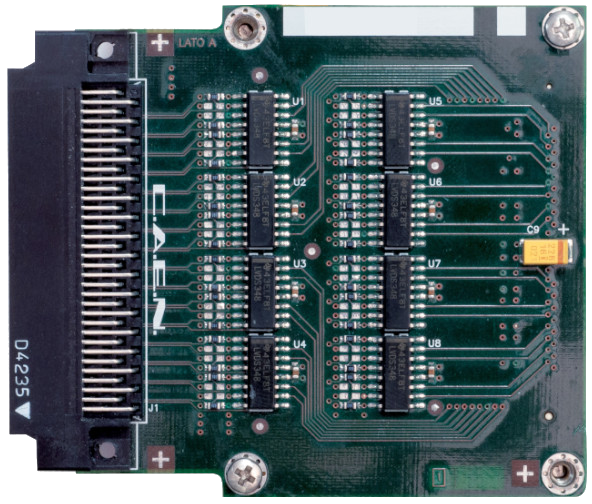

  • A395A: 32 LVDS/ECL/PECL input channels

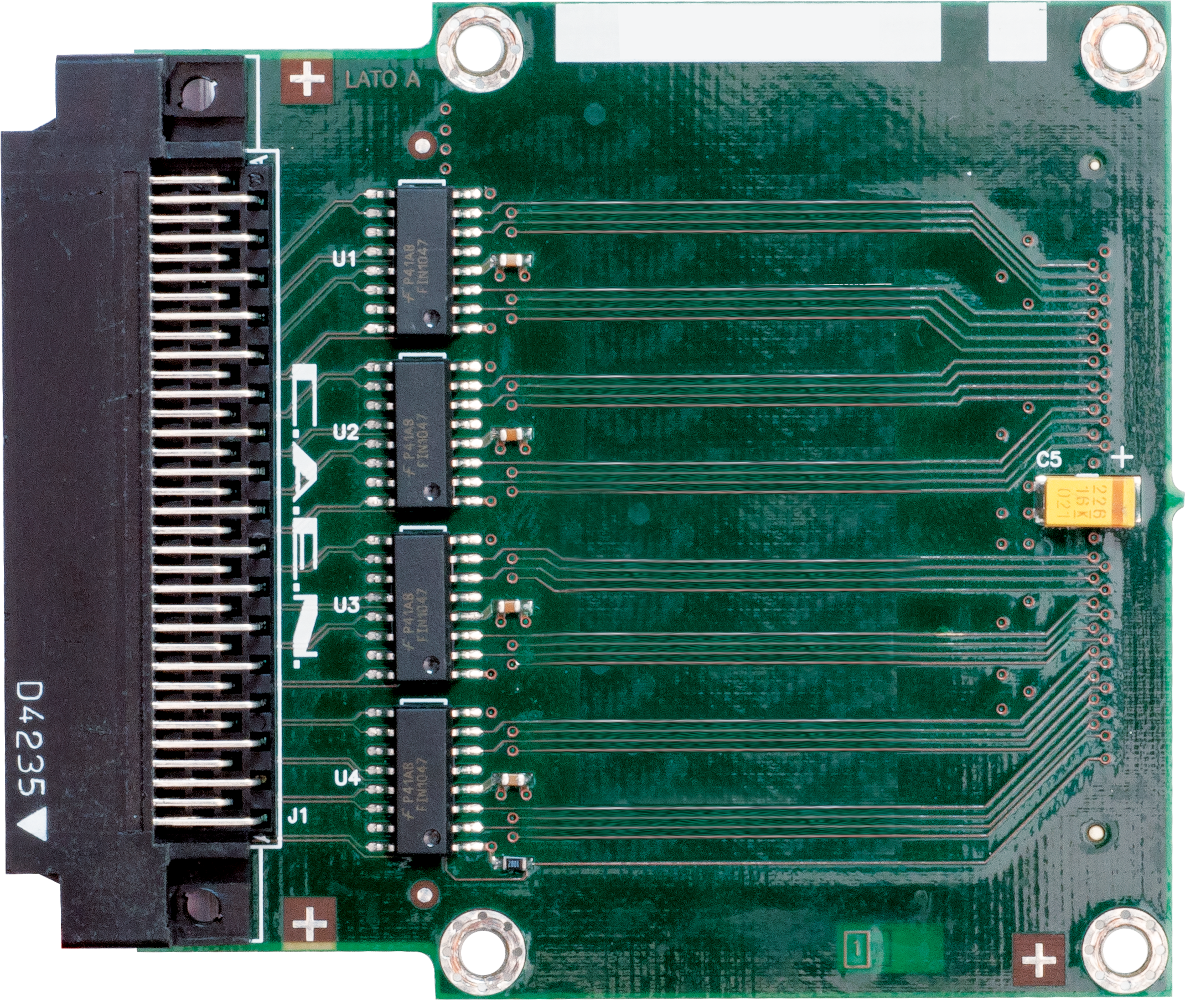

  • A395B: 32 LVDS output channels

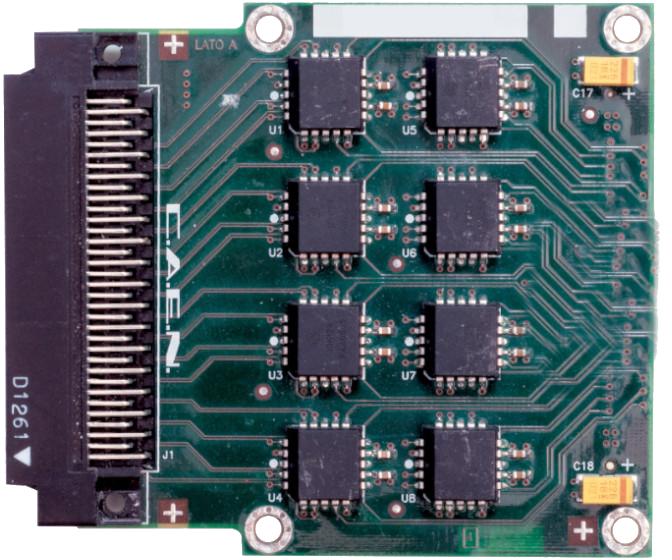

  • A395C: 32 ECL output channels

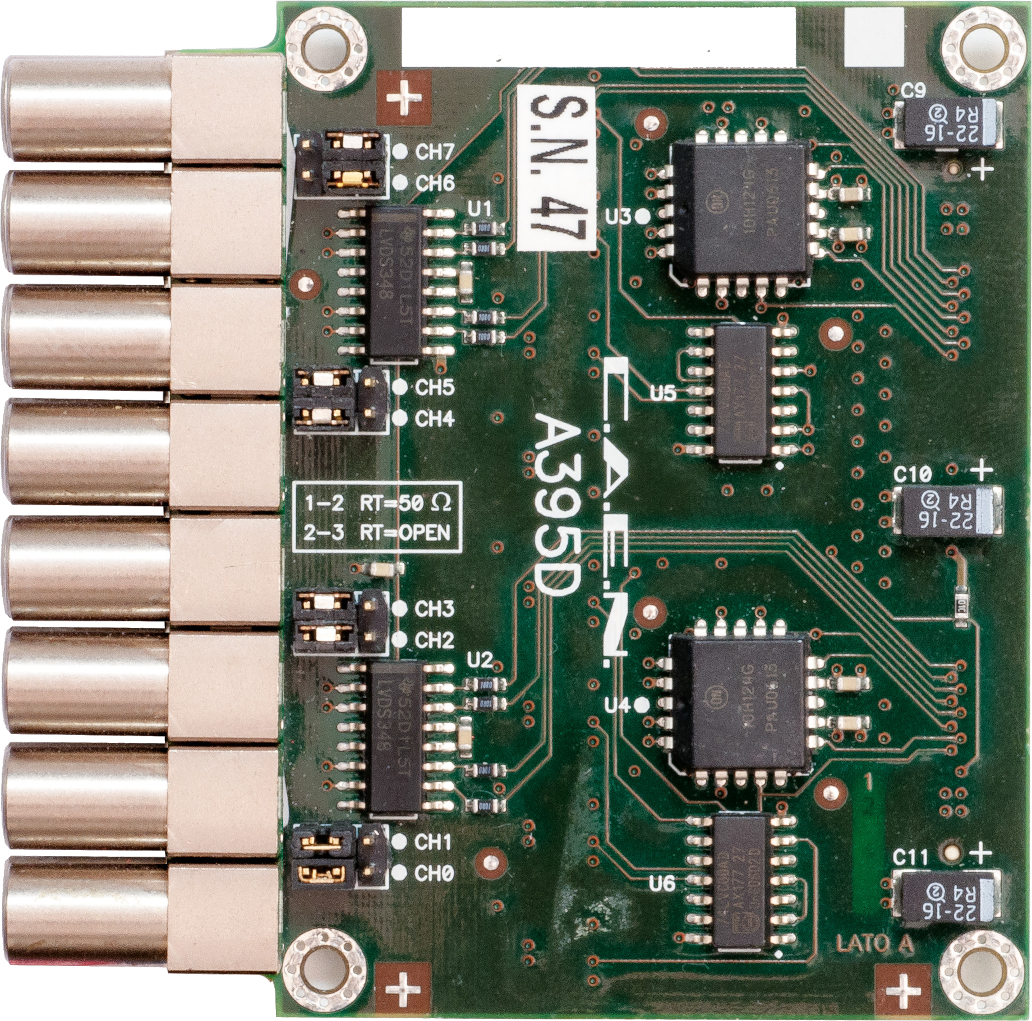

  • A395D: 8 NIM/TTL input/output channels

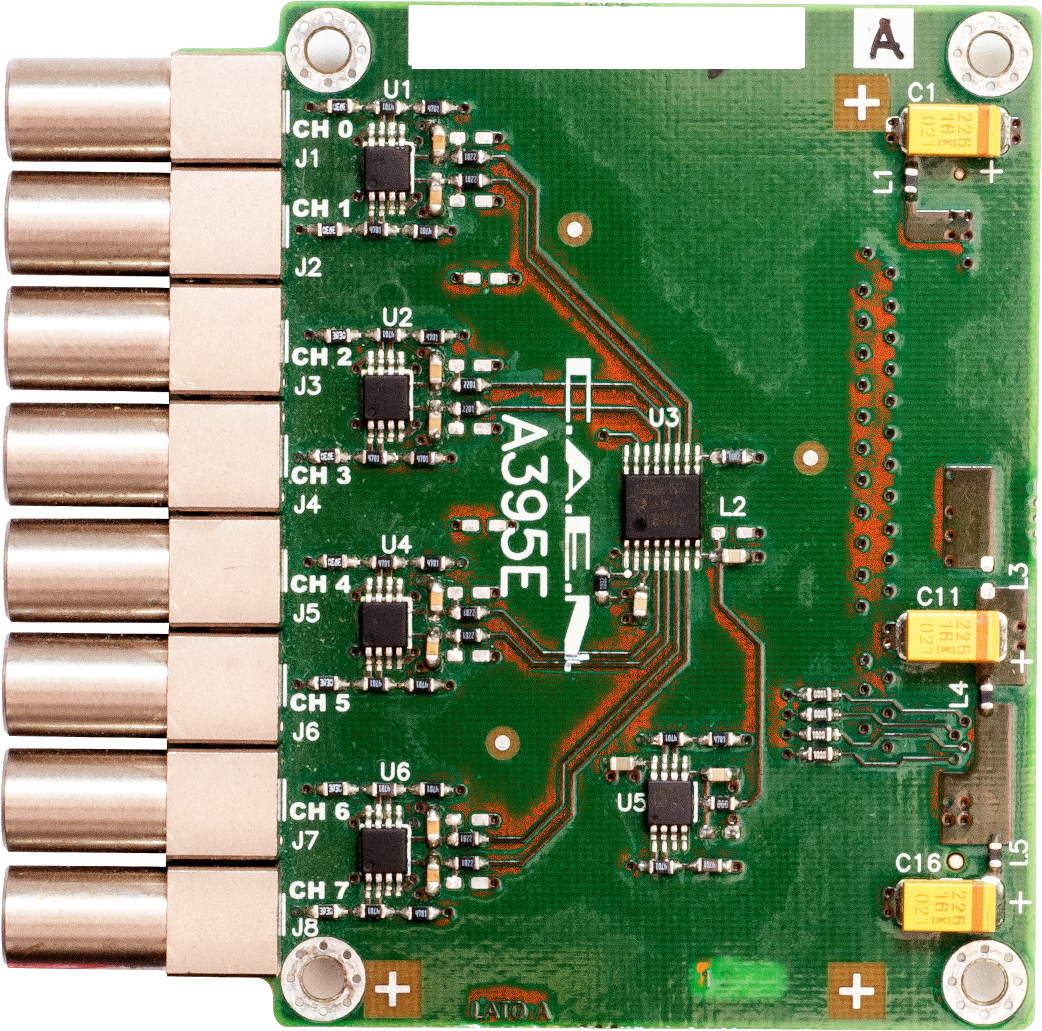

  • A395E: 8 Analog output 16 bit channels

Therefore, the Mod. DT5495 can achieve a maximum number of 194 I/O channels.

Model Compare:

Piggyback A395A A395B A395C A395D A395E
No. of channels 32 32 32 8 8
Channel type Digital input Digital Output Digital Output Digital I/O selectable Analog Output
Description Differential LVDS/ECL/PECL Differential LVDS Differential ECL NIM/TTL 16 bit resolution
Output range:
± 5V @10 Ω RL
± 4V @200 Ω RL
Note Single ended TTL optional LVDS 100 ΩRI ECL NIM/TTL selectable 50 Ω Rt DAC board equipped with DT5495 – Vx495 Firmware and VHDL source for custom development
Bandwidth 200 MHz 250 MHz 300 MHz 250 MHz
Front panel connector 3M P50E-068-P1-SR1 type (34+34) pins 3M P50E-068-P1-SR1 type (34+34) pins 3M P50E-068-P1-SR1 type (34+34) pins LEMO 00 LEMO 00

FW2495SC is a FPGA firmware that allows to use the DT5495 as a Multievent latching scaler housing up to 160 independent counting channels (this maximum number of channels is achieved if the DT5495 is expanded with three A395A boards).

Technical Specifications

FORM FACTOR

Desktop module

I/O SECTIONS A and B
Nr. of Channels

32

Direction

Input

 Logic

Direct

Signal

  • Differential LVDS/ECL/PECL
  • (single ended TTL optional)
  • Zdiff: 100 Ω
  • Extended Common Mode Input range: -4V to +5V

Fail Safe input feature

 Bandwidth

200 MHz

Front Panel Connector

Robinson Nugent P50E-068-P1-SR1-TG type, (34+34) pins

I/O SECTION C
Nr. of Channels

32 channels

Direction

Output

 Logic

Direct

Signal

  • Differential LVDS
  • Require 100 Ω termination
 Bandwidth

250 MHz

Front Panel Connector

Robinson Nugent P50E-068-P1-SR1-TG type, (34+34) pins

I/O SECTION G
Nr. of Channels

2

Direction

  • I/O (default is Output)
  • External 50 Ω termination required when used as input
 Logic

  • TTL IN = Direct
  • TTL OUT = Direct
  • NIM IN = Invert
  • NIM OUT = Direct

Signal

Single ended NIM/TTL selectable

 Bandwidth

250 MHz

Front Panel Connector

LEMO 00

GATE and DELAY GENERATOR
 Min.   Typ.   Max.
Minimum Delay/Gate 9.6 ns  10.7 ns  11.8 ns
Maximum Delay/Gate  631 μs  701.2 μs  771.5 μs
Maximum channel-to-channel spread 20%



COMMUNICATION INTERFACE

ETHERNET: 10/100T
USB: USB 2.0 compliant

POWER REQUIREMENTS
  • 750 mA (max.) @ +12VDC
  • AC-DC 12V-45W power unit included
A395A Mezzanine Board
no. of ch 32
Direction Input
Logic Direct
Signal Differential LVDS/ECL/PECL (single ended TTL optional) Zdiff: 100 Ω
Extended Common Mode input range: -4V to +5V Fail Safe input feature
Bandwidth 200MHz
Front Panel Connector Robinson Nugent P50E-068-P1-SR1-TG type, (34+34) pins
Power Consumptions 0.1 A (max) @ +5V internal power supply; +12V and -12V power supply are not used
A395B Mezzanine Board
no. of ch 32
Direction Output
Logic Direct
Signal Differential LVDS
Requires 100 Ω termination
Bandwidth 250MHz
Front Panel Connector Robinson Nugent P50E-068-P1-SR1-TG type, (34+34) pins
Power Consumptions 0.1 A (max) @ +5V internal power supply; +12V and -12V internal power supply are not used
A395C Mezzanine Board
no. of ch 32
Direction Output
Logic Direct
Signal Differential ECL
Bandwidth 300 MHz
Front Panel Connector Robinson Nugent P50E-068-P1-SR1-TG type, (34+34) pins
Power Consumptions 1.4 A (max) @ +5V internal power supply; +12V and -12V internal power supply are not used
A395D Mezzanine Board
no. of ch 8
Direction Output
Logic I/O selectable
Signal Selectable TTL/NIM:

  • TTL IN = Direct
  • TTL OUT = Direct
  • NIM IN = Invert
  • NIM OUT = Direct
Bandwidth 250MHz
Front Panel Connector LEMO 00
Power Consumptions 1.1 A (max) @ +5V internal power supply; +12V and -12V internal power supply are not used
A395E Mezzanine Board
no. of ch 8
Direction Output
Logic Analog
Signal 16-bit resolution
±5V @10kΩ RL
±4V @200Ω RL
Bandwidth n.a.
Front Panel Connector LEMO 00
Power Consumptions 0.3 A (max) @ +5V internal power supply; +12V and -12V internal power supply are not used

Compare

Compare with:

Loading...

Videos

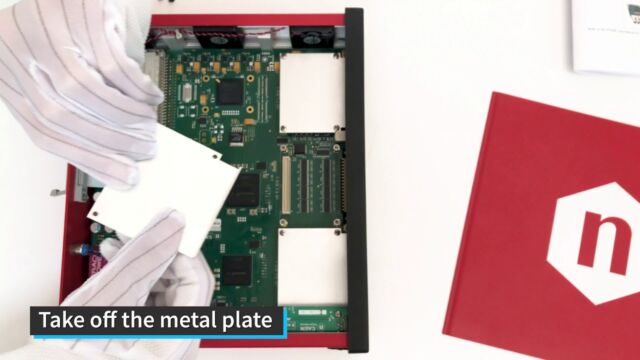

DT5495 - Mezzanine Installation

Accessories

A395x
Piggyback boards for Vx495 and DT5495
A966

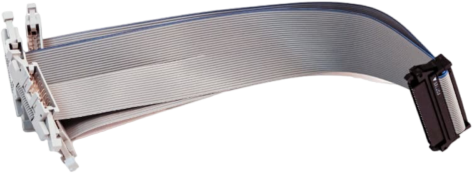

Cable assembly 68 pin P50 to four 2.54mm 16 pin male - 25 cm
A967

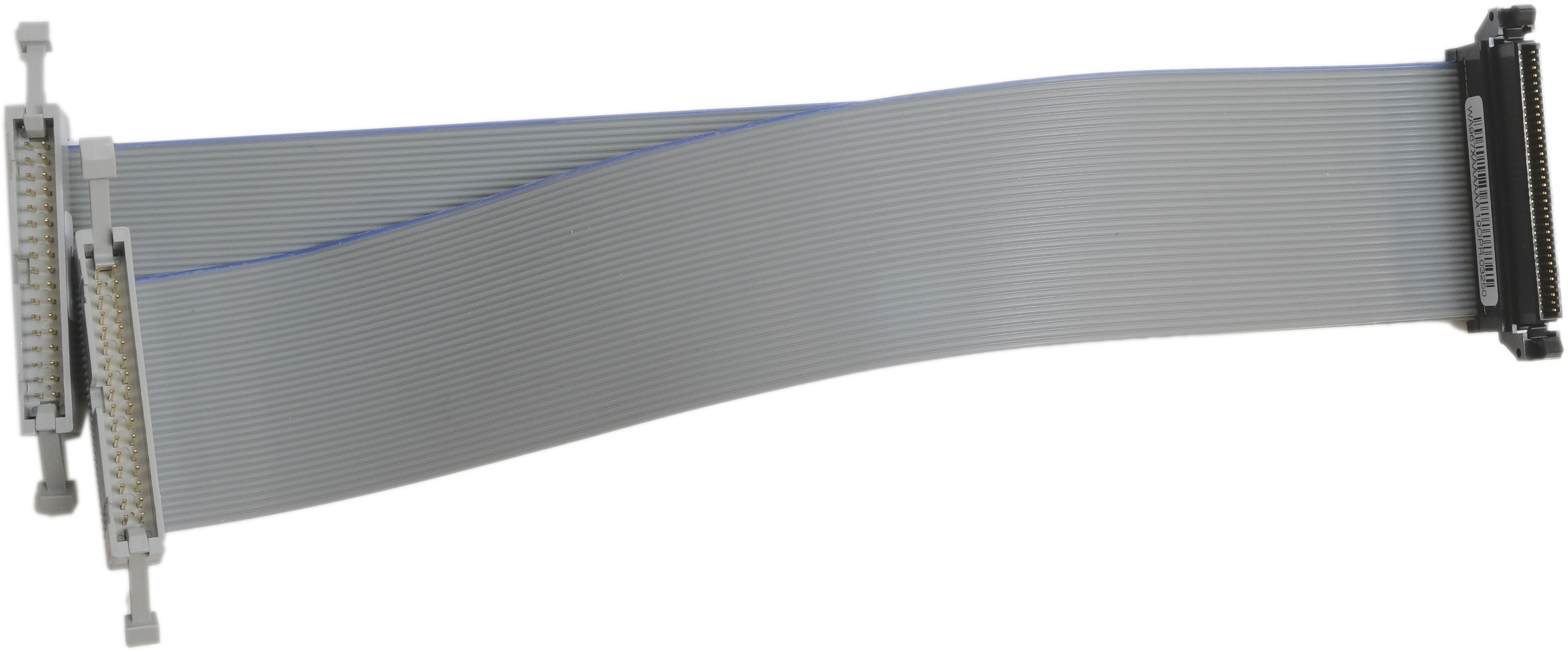

Cable assembly 68 pin P50 to two 2.54mm 34 pin male - 25 cm

Ordering Options

Code Description
WDT5495XAAAA DT5495 - Programmable Logic Unit PLUS   RoHS
WK5495KITPRO DT5495 + SW 555PRO - Desktop Programmable Logic Unit and Sci-Compiler PRO Bundle Kit  (Obsolete) RoHS
