Up to 6 kV – R803x
8/16 Channel up to 6 kV Family with USB, Ethernet & Touchscreen
Features
- 8 or 16 independently controllable HV channels in a 2U, 19” Rackmount unit
- Very low ripple
- Four versions from 100 V up to 6kV, and from 1 mA to 10 mA
- BNC (for 100 V version) or SHV coaxial connectors
- Local control with a 2.8” touch screen display
- Remote control via Ethernet or USB 2.0
- Common ground
- Available with positive, negative or mixed polarity
- Interlock logic for board enable and individual channel kill
- LabVIEW Driver available
- Software Tools for remote control
- The 100 V version has:
- Temperature probe input for SiPM gain stabilization (single/multi slope corrections)
- Fast recovery output
Overview

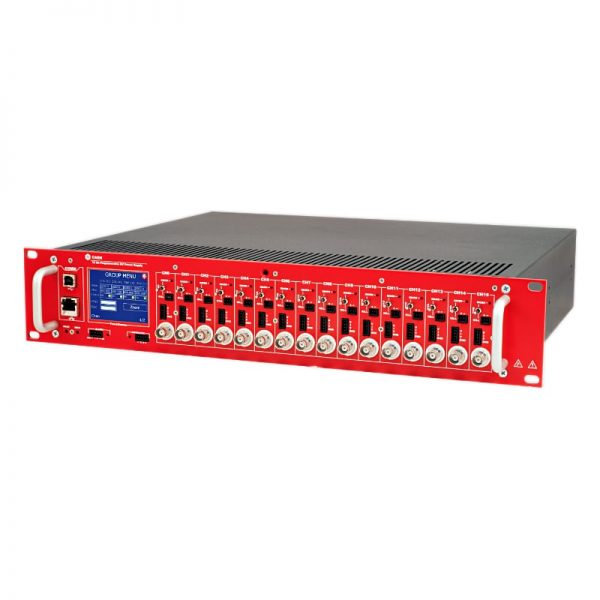

The R803x is a new CAEN Power Supply Family providing 8 or 16 Independent High Voltage channels in a 2U, 19” Rack-mount unit.
The channels share a Common Ground and four output ranges are available: 100 V/10 mA, 500 V/10 mA, 4 kV/3 mA (6W max), 6 kV/ 1 mA.
The module is available with either positive or negative output polarity. Mixed version with 4/8 positive and 4/8 negative channels are also available.
R803x units can be controlled either locally, thanks to a 2.8” touchscreen color LCD display with a complete user interface, or remotely, via USB or Ethernet, taking advantage of GECO2020 Control Software. EPICS and LabVIEW are supported.
100 V channels are delivered through BNC connectors, other versions feature SHV’s. The three high current models feature high Imon resolution of 50 nA, while the 6 kV/ 1mA has a resolution of 5 nA. Each unit is provided with Imon Zoom which increases Imon resolution by a factor 10.
The HV output Ramp-up and Ramp-down rates may be selected independently for each channel.
Software
Software Tools available (free download) to control the Up to 6 kV Family – R803x:
| CAEN LabVIEW | It is a set of VIs developed to configure and monitor all the parameters of remotely controlled CAEN Power Supply Modules. |
| EPICS IOC | Mainframes CPUs integrates an EPICS Input / Output Controller (IOC) that provides access to the Process Variables using the Channel Access Protocol. |
| CAEN HV Wrapper Library | It is a set of ANSI C functions bundled in a library, providing the software developer an unified software interface for the control of all the CAEN Power Supply products |
| GECO2020 | CAEN General Control SW for High Voltage Boards and Systems. it can manage and control CAEN HV power supplies in any form factor as if they were an unique device. |
Models
| Model | Image | No. of Channels | Max Output V | Max Output I | Iset/Imon Resolution | Ripple Typ. (>1kHz) | Connectors | Max Power per Channel | Features | Actions |
|---|---|---|---|---|---|---|---|---|---|---|
| R8031 | | 8/16 | 100 V | 10 mA | Iset: 50 nA Imon: 50 / 5 nA | <1 mVpp | BNC | 1 W | Remote control via USB or Ethernet | QUOTE |
| R8032 | | 8/16 | 500 V | 10 mA | Iset: 50 nA Imon: 50 / 5 nA | <2 mVpp | SHV | 5 W | Remote control via USB or Ethernet | QUOTE |
| R8033 | | 8/16 | 4000 V | 3 mA | Iset: 10 nA Imon: 10 / 1 nA | <2 mVpp | SHV | 6 W | Remote control via USB or Ethernet | QUOTE |
| R8034 | | 8/16 | 6000 V | 1 mA | Iset: 5 nA Imon: 5 / 0.5 nA | <2 mVpp | SHV | 6 W | Remote control via USB or Ethernet | QUOTE |
| R8034H | | 8/16 | 6000 V | 20 µA | Iset: 100 pA Imon: 100 / 10 pA | <2 mVpp | SHV | 120 mW | Remote control via USB or Ethernet | QUOTE |
