Low Voltage Boards

Redefining the low voltage extended flexibility with parallelizable channels and unprecedented digital control loop. A151xB - A251x

Features

  • 6 or 8 independently controllable full floating channels
  • Up to 15 V of maximum voltage
  • High resolution on voltage set
  • Programmable TRIP parameter
  • Programmable ramp up / down
  • Current generator operation in overcurrent condition
  • Overcurrent programmable protections
  • Individual remote sense lines
  • Individual Line Drop Recovery (only A151x family)
  • 50 W Max channel output power (only A251x family)
  • Full Digital PID Control Loop (only A251x family)
  • 1/10 mV voltage monitor resolution
  • Up to 1 mA current monitor resolution
  • Voltage ripple smaller than 5/10 mVpp

Overview

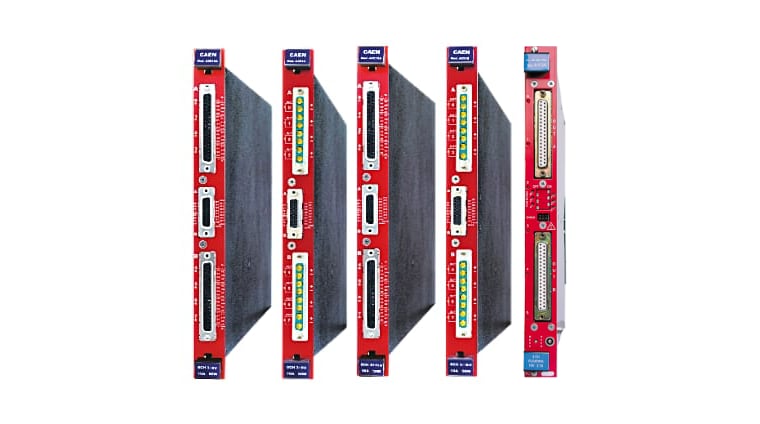

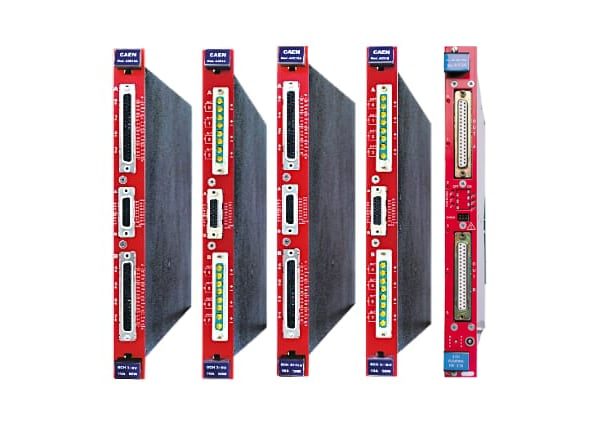

The family of low voltage (LV) power supplies includes single width boards housing 6 or 8 individual floating channels. The boards are designed to provide maximum voltages from 4.5 to 32 V, with up to 1 Mv set and monitor resolution and can provide output power up to 60W per channel (A255x boards).

All the boards are provided with both current and voltage protections. If overcurrent occurs, the channel is signaled to be in “overcurrent” and is switched off (A251x boards) while for A151Xb, A255x and “C” Versions of A251x the relevant channel can be programmed either to turn off after a programmable trip time or to remain on and to provide the maximum allowed current. This feature allows the module to perform as a current generator.

The voltage ramp rates may be set independently for each channel. Moreover, the individual floating channels allow on-detector grounding, thus allowing to reduce the noise level. Output channels are delivered through DB37 or D-sub 8 (A251x boards) connectors.

The family is composed by three group of boards detailed here below.

A1513B / A1516B / A1517B

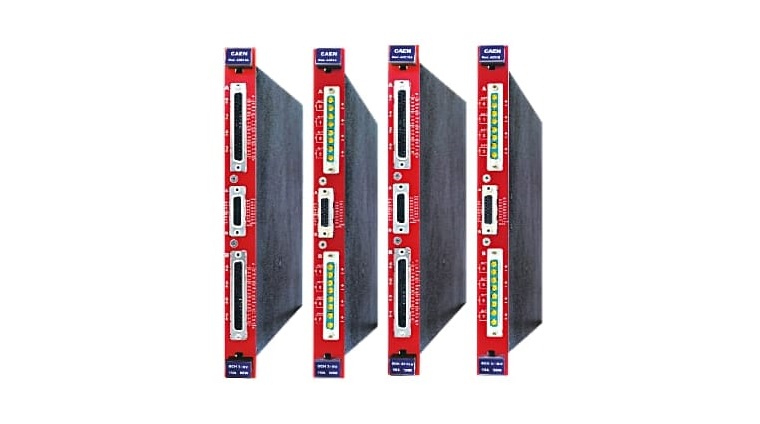

The A1513B, A1516B, and A1517B are single width (5 TE wide) boards housing 6 LV floating channels each. The boards provide 10V / 2.7A, 15 V / 1.5A, and7V / 4A outputs respectively, with 10 mV monitor resolution.

The voltage drop over the cables can be recovered by using either the featured Remote Sensing Lines, to be connected on the load for sensing the drop, or an automatic Line Drop Recovery system. Output channels are delivered through 37 pin DB connectors.

A2517 / A2518 / A2519

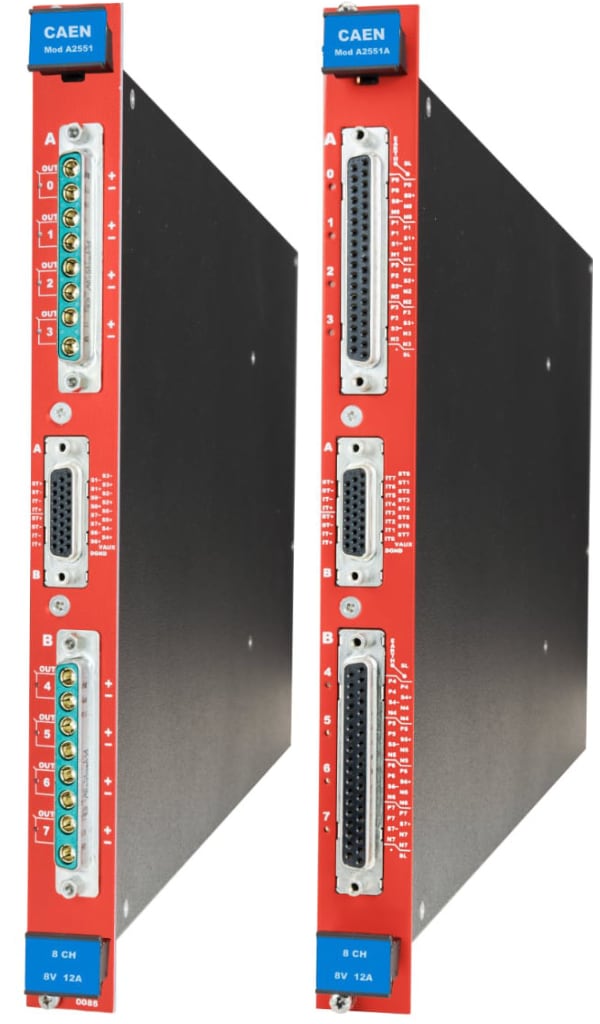

The A2517, A2518 and A2519 are single width (5 TE wide) boards housing 8 LV floating channels each. The boards provide 5V / 15A, 8 V / 10 A, and 15 V / 5 A outputs with 10 mV monitor resolution. The Maximum channel power is 50 W.

Channels can be connected in parallel with modularity 2 or 4 to obtain higher output power; this feature is not available on A251xC versions. Each output channel is provided with individual remote sensing lines to compensate for the voltage drop over the connection cables. Channels feature a PID (proportional integrative-derivative) digital controller, whose parameters are User programmable. In this way, the control loop can be optimized to any load conditions independently for each channel. Output channels are delivered through DB37 or D-sub 8connectors

Universal Multichannel System - Mainframes

Modularity, Compatibility, Connectivity, Usability and Solidity are the keywords of the system design. The Mainframes have been specifically designed to power all detector technologies found in modern Physics Experiments, such as photomultipliers, wire chambers, streamers tubes, silicon detectors and others.

The systems are modular, flexible and match not only the requirements of major experiments with large number of channels but also the practical needs of test laboratories, where simple manual operations on a limited number of channels are often desired.

Mainframes

Immagine esplicativa

Software

A complete set of Software Tools is available (free download) to control CAEN Universal Multichannel Power Supply Systems, from low level libraries to graphical application software:

CAEN, in collaboration with CERN, has developed an OPC server which allows control of its power supply systems by any OPC compliant client application.
HiVoCS HiVoCS is a Web Interface available on any SY4527-SY5527 CPU. This Interface can be accessed directly via browser without installing any additional software.
EPICS IOC Mainframes CPUs integrates an EPICS Input / Output Controller (IOC) that provides access to the Process Variables using the Channel Access Protocol.
CAEN HV Wrapper Library It is a set of ANSI C functions bundled in a library, providing the software developer an unified software interface for the control of all the CAEN Power Supply products
GECO2020 CAEN General Control SW for High Voltage Boards and Systems. it can manage and control CAEN HV power supplies in any form factor as if they were an unique device.

Models

Model Image No. of Channels Max Output V Max Output I Max. Ramp Up/Down Rate Ripple Typ. Connectors Max Power per Channel Actions
A1513B A1513B 6 10 V 2.7 A 19 V/s < 5 mVpp DB37 27 W QUOTE
A1516B A1516B 6 15 V 1.5 A 29 V/s < 5 mVpp DB37 23 W QUOTE
A1517B A1517B 6 7 V 4 A 14 V/s < 5 mVpp DB37 28 W QUOTE
A1518B A1518B 6 4.5 V 6 A 9 V/s < 5 mVpp DB37 27 W QUOTE
A2517 A2517 8 5 V 15 A 1 ms (min. ramp time) < 5 mVpp D-Sub 8W8 50 W QUOTE
A2518 A2518 8 8 V 10 A 1 ms (min. ramp time) < 10 mVpp D-Sub 8W8, DB37 50 W QUOTE
A2519 A2519 8 15 V 5A 1 ms (min. ramp time) < 10 mVpp D-Sub 8W8, DB37 50 W QUOTE
