VX1290N-2eSST
16 Channel Multihit TDC (25 ps)
Features
- 25 ps LSB
- 21 bit resolution
- 52 µs full scale range
- NIM Input Signals
- 5 ns Double Hit Resolution
- Leading and Trailing Edge detection
- Trigger Matching and Continuous Storage acquisition modes
- 32 k x 32 bit output buffer
- MBLT, CBLT and 2eSST data transfer
- Multicast commands
- Geographical address supported
- Live Insertion
Overview

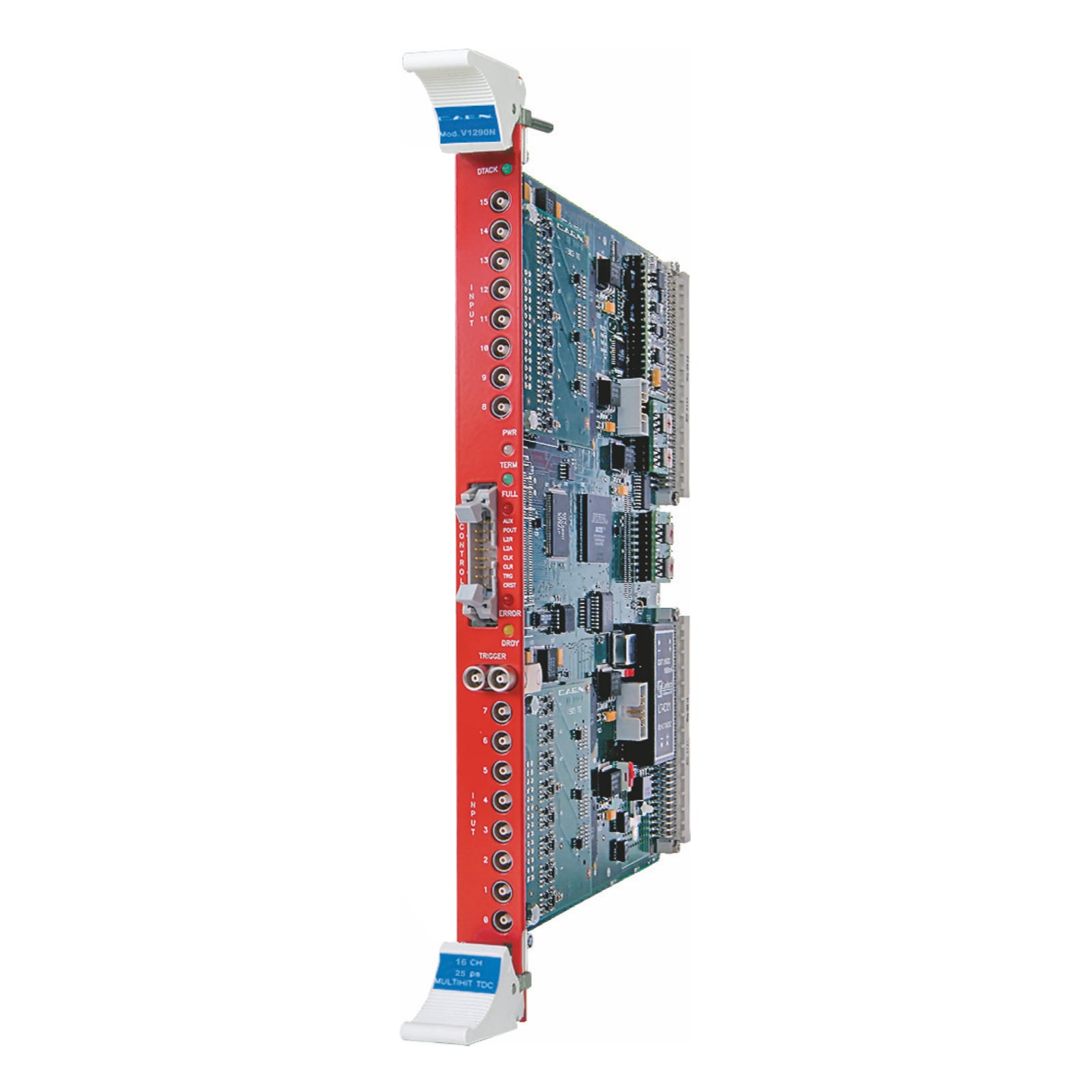

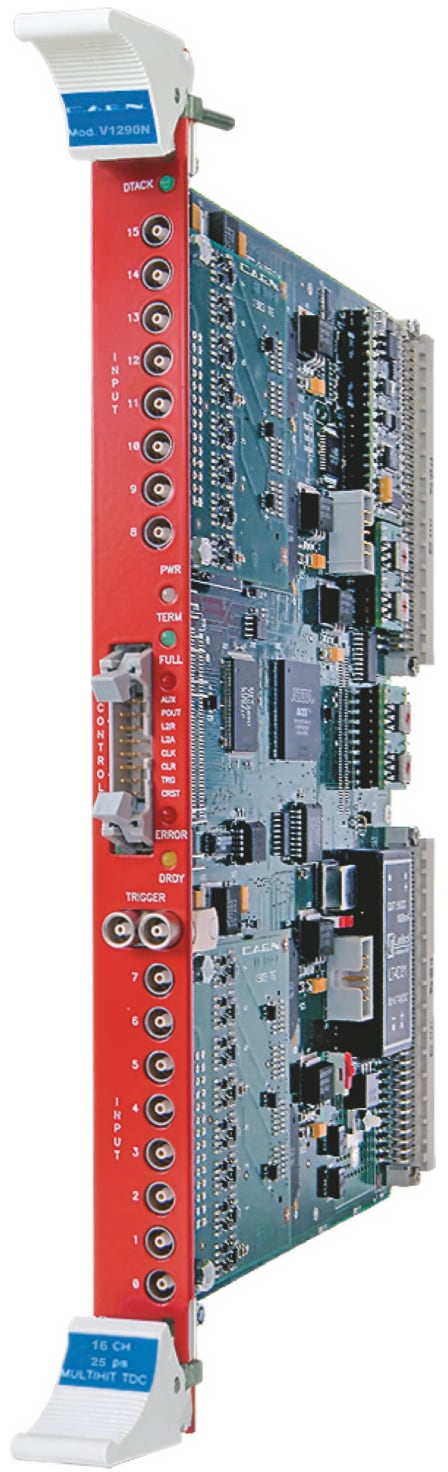

The CAEN Mod. VX1290N-2eSST is a 16 channel Multihit TDC, housed in a 1-unit wide VME64X 6U module. The unit features High Performance Time to Digital Converter chips developed by CERN. LSB is 25 ps (21 bit resolution, 52 µs FSR). The module accepts NIM inputs.
The channels can be enabled for the detection of hits rising/falling edges. For each channel there is a digital adjustment for the zero-ing of any offsets. The data acquisition can be programmed in “Events” (“Trigger Matching Mode”, with a programmable time window) or in “Continuous Storage Mode”.
The module programming is performed via a microcontroller that implements a high-level user friendly interface. The VME interface allows the module to work in A24 and A32 addressing modes.
The board houses a 32 k x 32 bit deep Output Buffer, that can be readout via VME in a completely independent way from the acquisition itself.
The device supports MBLT, CBLT and 2eSST readout modes. Live insertion is also supported.
Technical Specifications
- Packaging
6U-high, 1U-wide VME unit
- Inputs
NIM inputs, 50 Ω impedance
- Double hit resolution
5 ns
- Acquisition modes
Trigger Matching Mode; Continuous Storage Mode
- Built-In memory
32 kwords deep Output Buffer
- LSB
25 ps
- Dynamic Range
52 μs
- RMS resolution (with compensation enabled)
35 ps (typical)
- Integral non linearity (with compensation enabled)
<2.5 LSB
- Max. differential non linearity (with compensation disabled)
<3 LSB
- Interchannel isolation
≤3 LSB
- Offset spread
<2 ns6
- EXT TRIGGER input
Two LEMO 00 bridged connectors, NIM signal, 50 Ω
- Double Trigger Resolution
75 ns
- Clock source
Internal (40 MHz) or External (on Control connector), dip switch selectable
- Control inputs
active-high, differential ECL input signals:
CLR: performs the Hardware CLEAR (min. width: 25 ns)
rising-edge active, differential ECL input signals:- CRST: performs the Bunch RESET (min. width: 25 ns)
- CLK: external clock (max. freq.: 40 MHz)
- TRG: trigger for the TDC latching (min. width: 25 ns)
- Control Outputs
differential ECL output signal:
OUT_PROG: control output signal, programmable via the out prog control register
- Displays
- DTACK: green LED; lights up at each VME access
- PWR: green/red LED; green: power ON, red: failure status
- TERM: green LED; control bus termination ON
- FULL: red LED; memory full
- ERROR: red LED; TDC global error
- DRDY: yellow LED; at least one datum/event in the Output Buffer
- VME
- Addressing modes: A24, A32, MCST
- Data modes: D16, D32, MBLT32, BLT64, CBLT32, CBLT64, 2eVME, 2eSST7
- Readout rate: up to 120 Mbyte/s with 2eSST
