R8034

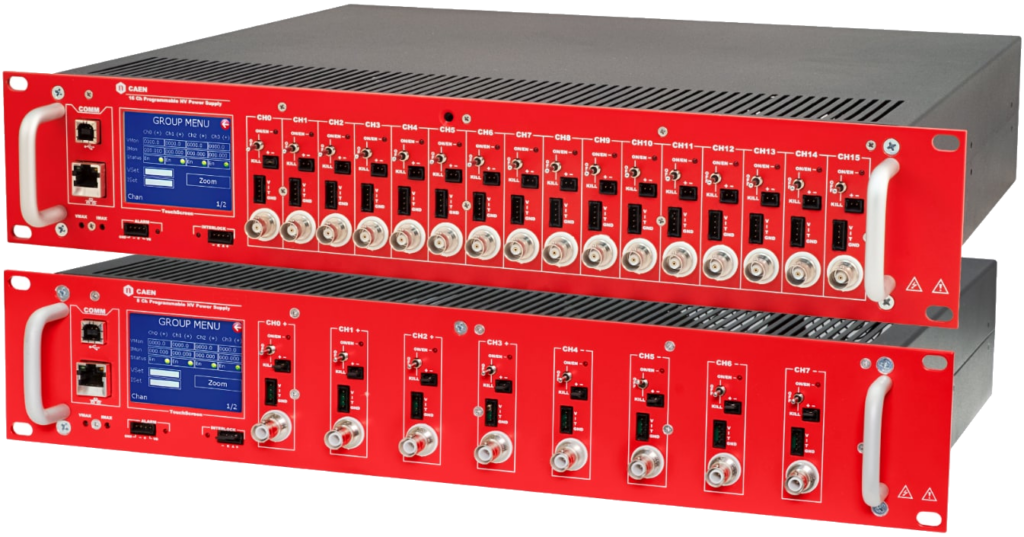

8-16 Channel 6 kV/1 mA Rack 19' HV Power Supply (USB/Ethernet/Touchscreen)
Features
- 8 or 16 independent channels in a 19″ rack unit (110/220V AC Powered)
- 6 kV / 1 mA output ranges
- Channels with either positive or negative polarity
- SHV coaxial output connectors
- Low Ripple
- 20 mV Vset resolution
- 5 nA Iset resolution
- Under/over-voltage alert, overcurrent and max. voltage protection
- Programmable ramp-up / ramp-down (1-500 V/s)
- 2.8″ color touch screen display
- Local and Remote control (USB2.0/Ethernet)
- Interlock logic for board enable and Individual channel kill
- Software Tool for easy channel management
Overview
The CAEN Mod. R8034 provides 8 or 16 independent 6 kV / 1 mA channels in a 19″ rack unit (110/220V AC Powered). Each channel can provide a 6 kV max voltage and a 1 mA max current. The unit is available with positive, negative and “mixed” (4 positive and 4 negative) channels.
Channels outputs are delivered through SHV connectors. The HV output RAMP-UP and RAMP-DOWN rates may be selected independently for each channel in the range 1÷500 V/s in 1 V/s steps. The module features 5 nA Iset resolution.

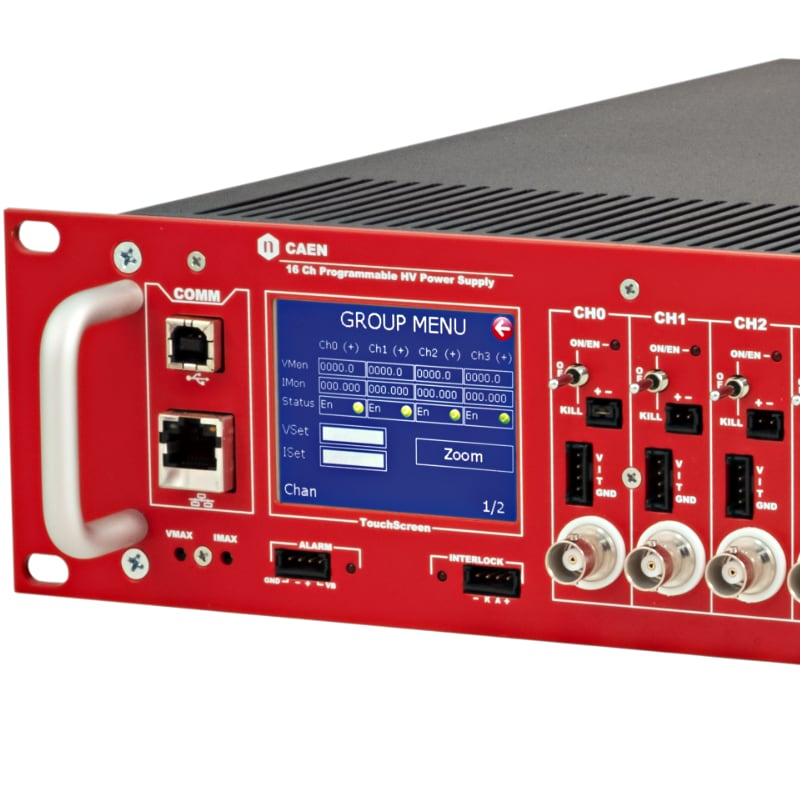

Module control can take place either locally thanks to a 2.8″ Touchscreen Graphic color LCD display with a completely redesigned user interface or remotely, via USB 2.0 or Ethernet.
|
SHV connector
19” 2U, 8/16 channels for Mod. R8034 |
Consult our connectors reference page for technical information.
A complete set of Software Tools is available to control these units; the user can freely download low level libraries, LabVIEW driver and Graphical application software.
Safety features allows the module to perform as a current generator and includes:
| Overvoltage and Undervoltage warning | When the output voltage differs from the programmed value by more than 2% of set value (minimum 10V). |
| Overcurrent detection | When a channel attempts to exceed the programmed current limit, it signalled to be in “overcurrent” and enter in a TRIP status. The output voltage is varied to keep the current below the programmed limit for a programmable TRIP time, then the channel is switched off. If TRIP is set to “constant current mode”, the channel behaves like a current generator. |
| Hardware VMAX and IMAX | Maximum output voltage and maximum current value can be fixed, via front panel potentiometer, at the same common value for all the board channels. IMAX and VMAX values can be read out via software. |
| Safety Board Interlock | Common Interlock logic for channels enable/disable and individual inputs signal for channel Kill function. |
Technical Specifications
- Packaging
19” rack (h: 2U; d: 360mm). 110/220V AC Powered
- Output Channels
- 8-16 channels, SHV connector
- Positive, Negative or Mixed (4-8 positive and 4-8 negative) Polarity; common ground
- Output Voltage
0÷6 kV
- Max. Output Current
1 mA
- Max. Ch. Output Power
6W
- Vset Resolution
20 mV
- Vmon Resolution
20 mV
- Iset Resolution
5 nA
- Imon Resolution
5 nA (high range) / 500 pA (low range)
- Vmax
0 ÷ 6 kV
- Vmax resolution
2V
- IMAX hardware
0÷1 mA
- IMAX hardware resolution
1 μA
- Ramp Up/Down
1÷500 Volt/s, 1 Volt/s step
- Trip
Max. time an “overcurrent” can last (seconds). A channel in “overcurrent” works as a current generator; output voltage varies in order to keep the output current lower than the programmed value.
“Overcurrent” lasting more than set value (1 to 9999) causes the channel to “trip”.
Output voltage will drop to zero either at the Ramp-down rate or at the fastest available rate, depending on Power Down setting; in both cases the channel is put in the OFF state.
Trip range: 0 ÷ 999.9 s; 1000 s = INFINITE. Step = 0.1 s (If trip= INFINITE, “overcurrent” lasts indefinitely)
- Voltage Ripple
- 10 – 1000 Hz: <4 mVpp typ; <8 mVpp max
- 1kHz – 20 MHz: <2 mVpp typ; <5 mVpp max
- Vmon vs. Vout Accuracy
± 0.02% ± 1V
- Vset vs. Vout Accuracy
± 0.02% ± 1V
- Imon vs. Iout Accuracy
± 0.2% ± 1 µA
- Iset vs. Iout Accuracy
± 0.2% ± 1 µA
- Humidity range
0 ÷ 80% non condensing
- Operating temperature
0 ÷ 45°C
- Storage Temperature
-10 ÷ 70°C
- Vout / Temperature coefficient
±50 ppm / °C
- Long Term stability (1 week after 1h warmup)
±0.02% / full scale
- Local Control
LCD touchscreen
- Remote Control
USB & Ethernet
Compare
Compare with Rack-mount High Voltage Power Supplies.
Loading...
Ordering Options
| Code | Description |
|---|---|
| WR8034DXAAAA | R8034DN - 16CH Rack-mount Programmable HV PowerSupply(-6KV 1mA) - SHV conn. - Common Gnd RoHS |
| WR8034DXPAAA | R8034DP - 16CH Rack-mount Programmable HV PowerSupply(+6KV 1mA) - SHV conn. - Common Gnd RoHS |
| WR8034DXMAAA | R8034DM - 16CH Rack-mount Programmble HV P.S.(8ch-6KV 1mA,8ch +6KV 1mA) - SHV conn. - C. Gnd RoHS |
| WR8034XAAAAA | R8034N - 8CH Rack-mount Programmable HV PowerSupply(-6KV 1mA) - SHV conn. - Common Gnd RoHS |
| WR8034XMAAAA | R8034M - 8CH Rack-mount Programmable HV P.S.(4ch -6KV 1mA,4ch +6KV 1mA) - SHV conn. - Common Gnd RoHS |
| WR8034XPAAAA | R8034P - 8CH Rack-mount Programmable HV PowerSupply(+6KV 1mA) - SHV conn. - Common Gnd RoHS |
Related Products
R8034H
8-16 Channel 6 kV/20 µA Rack 19' HV Power Supply (USB/Ethernet/Touchscreen)
R8033
8-16 Channel 4 kV/ 3 mA (6W) 19'' Power Supply Module (USB/Ethernet/Touchscreen)

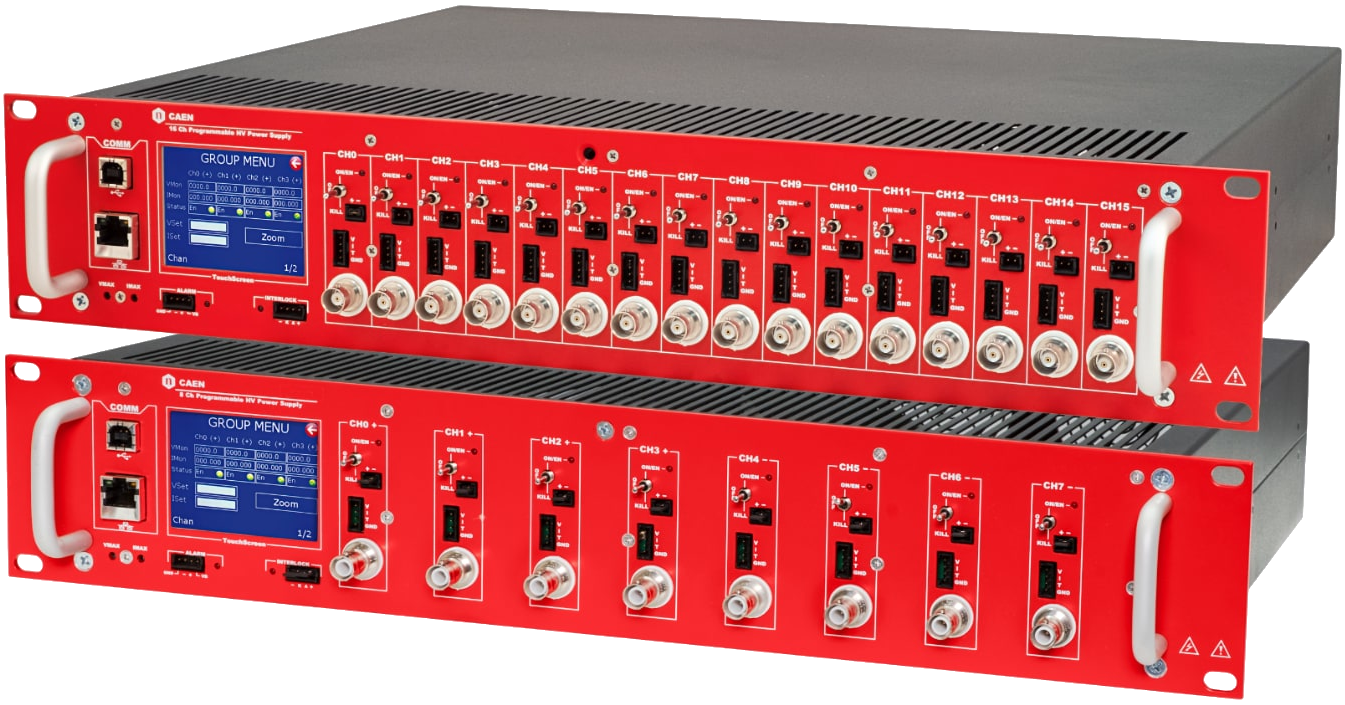

R8032
8-16 Channel 500 V/10 mA 19'' Power Supply Module (USB/Ethernet/Touchscreen)

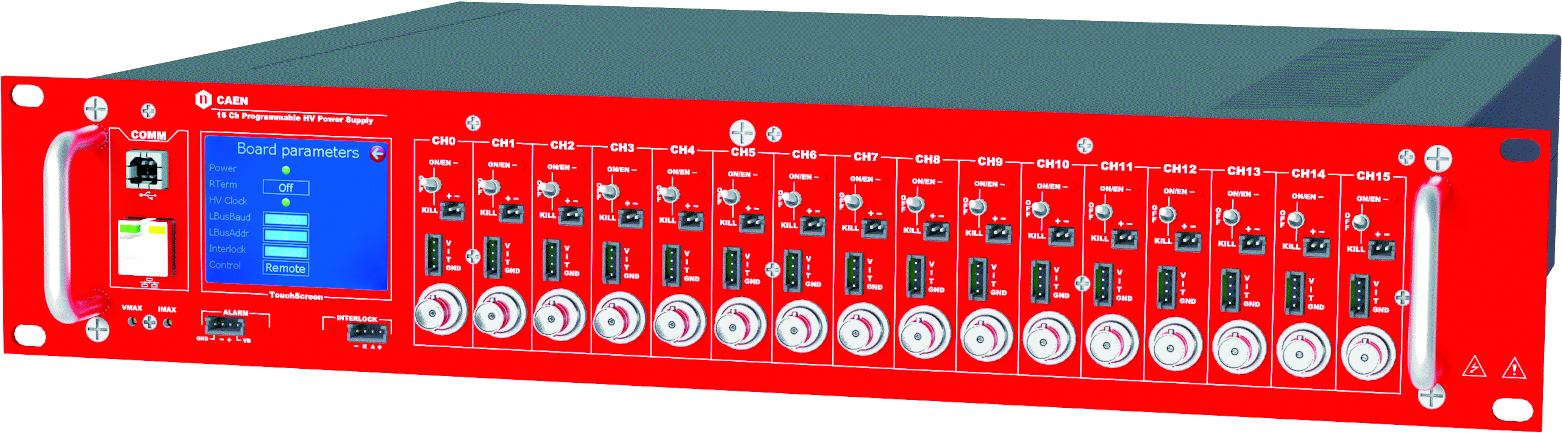

R8031
