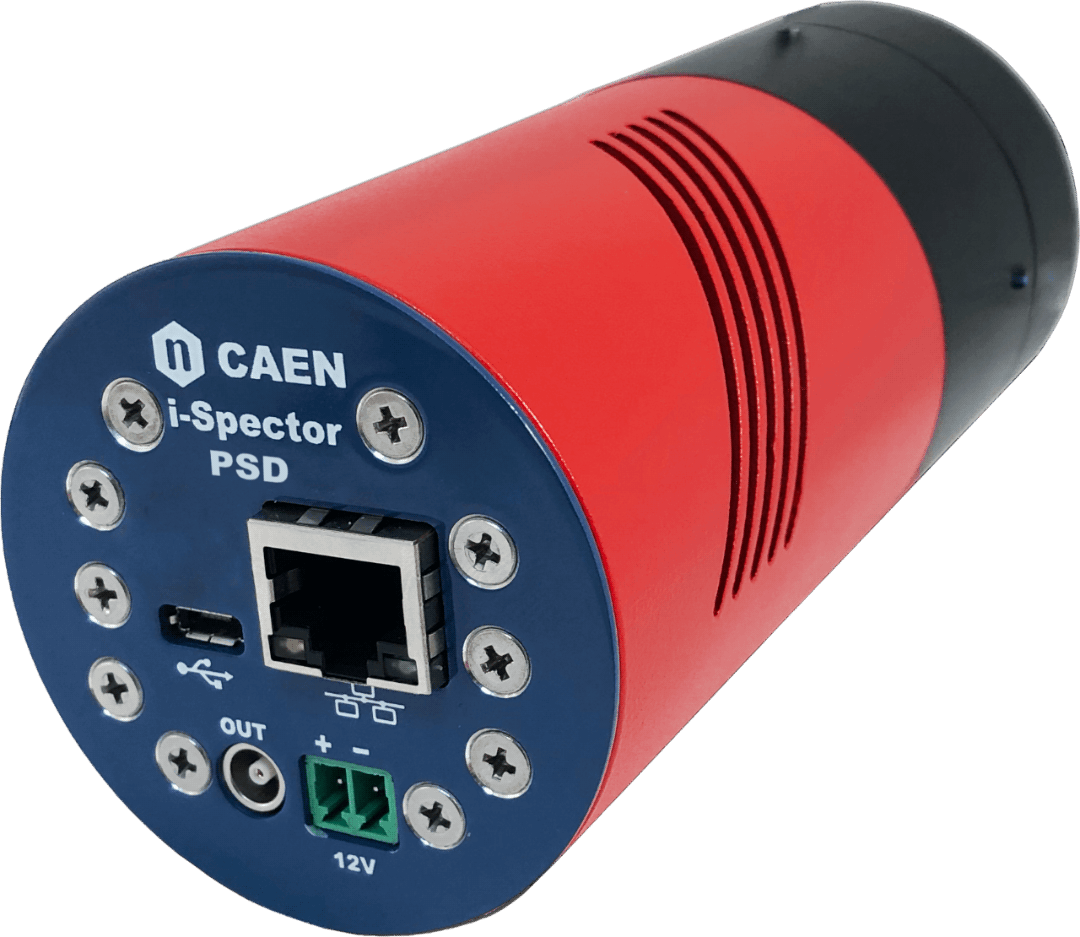

i-Spector
Intelligent Silicon Photomultiplier Tube
Features
- All-in-one detector and preamplification electronics for Gamma Spectroscopy
- Based on a SiPM area up to nearly 1.5 inch2
- 20-80 V Integrated High Voltage for SiPM biasing
- i-Spector PLUS (Coming Soon) version with embedded timing unit for coincidence and ToF measurements among multiple devices
- OEM electronics or detector assembly
- Assembly with CsI scintillator:
- 24x24x30 mm3 (approx. 1x1x1.2 inch3)
- 30x30x30 mm3 (approx. 1.2×1.2x 1.2 inch3)
- Other assembly option available on request: NaI, BGO, LYSO, LaBr3 or any other compatible scintillator
- Demountable mechanics to easily change crystal
- Ethernet connection to PC
- Web-based configuration and monitor interface
- Compact form factor

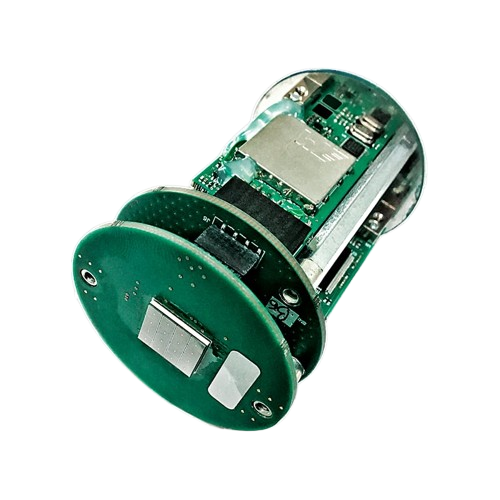

- Ø 60 mm, h 90 mm (OEM)

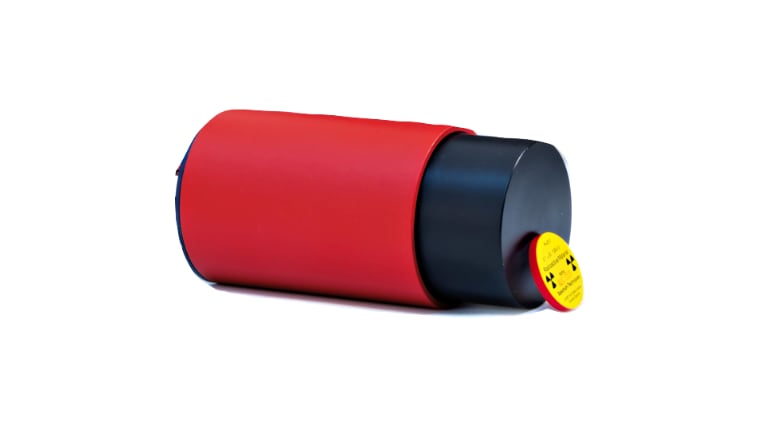

- Ø 60 mm, h 135 mm (ASSEMBLY)
Overview

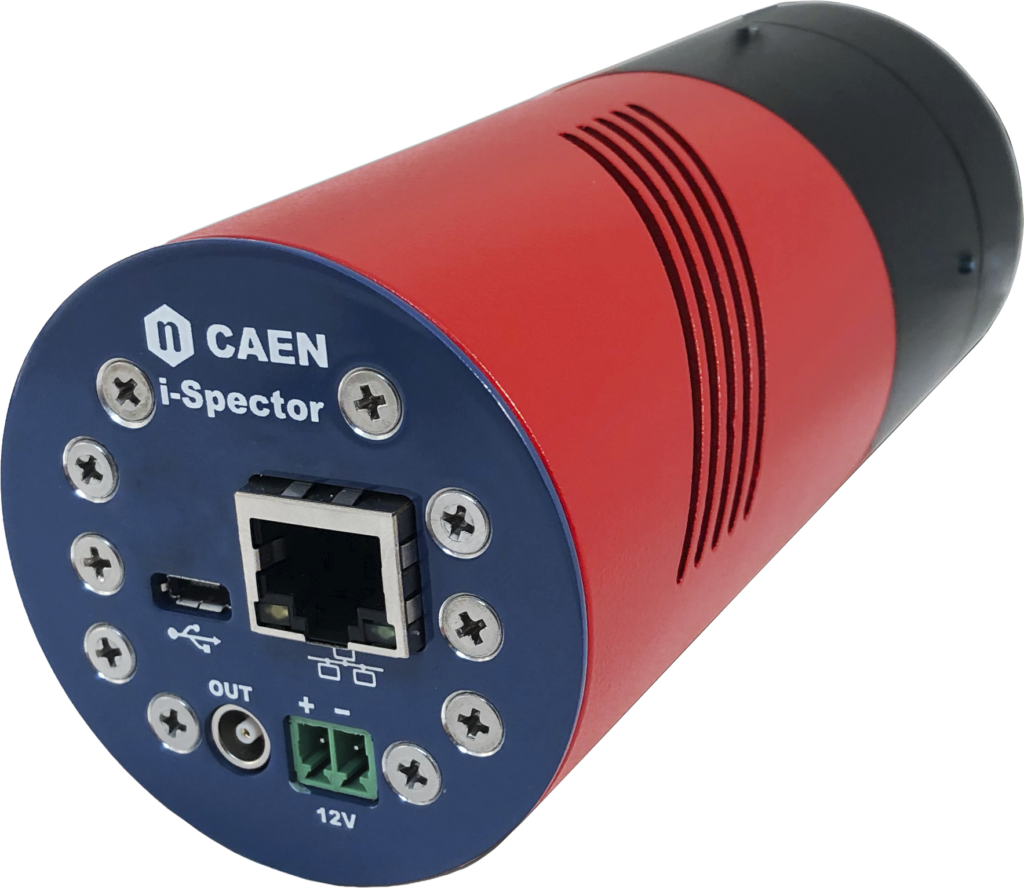

The i-Spector is a solution dedicated to those users that need the versatility of a full compact single photodetection system for spectroscopy applications.
It is a fully-integrated tube designed to replace existing systems based on PMTs. This compact unit is based on a SiPM area (18×18, 24×24 or 30×30 mm2) with preamplifier stage, integrated power supply for SiPM biasing with temperature feedback loop and a monitor for temperature, current and voltage. The i-Spector can be controlled through Ethernet. The output is a fast analog signal that can be digitized or processed with a common Digitizer, MCA or discriminator/TDC chains.
i-Spector PLUS (Coming Soon) model integrates an additional Timing Unit that is able to correlate the detector signal with external signals. It is designed to perform event timestamping, ToF measurements, coincidence between multiple i-Spector modules and photon counting.
The device can be controlled via ethernet connection and provide an amplified signal on an analog output. If dynamic change of parameters and monitor is not required, the configuration could be stored in the internal flash and the module could be used as a stand-alone unit without any external interconnection except the analog signal output as a standard PMT. This module can be used in combination with 725 and 730 Digitizer families.
i-Spector can be coupled with CsI, LaBr, NaI(Tl), BGO, Lyso, and others scintillator.
i-Spector Web Interface. i-Spector module can be easily controlled through its dedicated web-based interface with no software installation. The user can monitor the status of the module, configure the HV and connection parameters.
Developed in collaboration with
Technical Specifications
- General
Form Factor Portable
OEM: 150g (5.3 oz.)
ASSEMBLY: 500g (17.6 oz.)
with 18x18x30 mm3 CsI crystal
- Assembly Size
Ø 60 mm (2.40”) h 135 mm (5.32”)
- OEM Size
Ø 60 mm (2.40”) h 90 mm (3.55”)
- Working Temperature
-20 + 50°C
- Power consumption
3W max.
- Supply Voltage
8-13V (12 V typ.)
- SiPM
Area made of Hamamatsu S14160-60520HS 30×30 mm2 (nearly 1.5”)
- High Voltage for SiPM biasing
Range: 20-80 V (10 mA)
HV Accuracy : 1 mV
Thermal Feedback Accuracy: 0.01 °C – 1mV
- Preamp Gain
x5
- Bandwidth
> 1GHz
- Shaping time
180 ns
- Analog Output
– 4 ÷ +4 V , 170 mA on the OUT LEMO connector
- Timing resolution
50 ps @ rate <20 kpcs
5 ns @high rates
- Communication interface
10/100 Mb/s Ethernet
- Software
Graphical web interface SDK based on JSON data and standard HTTP post
Compare
Compare with i-Spector (ALL).
Loading...
Ordering Options
Code | Description |
---|---|
WS25X0ASSBXA | Assembly kit and service for i-Spector OEM – new version RoHS |
WS2560EXOAAA | S2560E i-Spector 1” (24x24 mm) - OEM RoHS |
WS2560FXOAAA | S2560F i-Spector 1.5” (30x30 mm) - OEM RoHS |
WS2560TEXOAA | S2560TE i-Spector PLUS 1” (24x24 mm)- OEM RoHS |
WS2560TFXOAA | S2560TF i-Spector PLUS 1.5” (30x30 mm)- OEM RoHS |
WS2560EXAAAA | S2560E i-Spector 1” (24x24 mm) – CsI ASSEMBLY RoHS |
WS2560FXAAAA | S2560F i-Spector 1.5” (30x30 mm) – CsI ASSEMBLY RoHS |
WS2560TEXAAA | S2560TE i-Spector PLUS 1” (24x24 mm) – CsI ASSEMBLY RoHS |
WS2560TFXAAA | S2560TF i-Spector PLUS 1.5” (30x30 mm) – CsI ASSEMBLY RoHS |
