DT5761

1 Channel 10 bit 4 GS/s Digitizer

Request a quote
Downloads

Features

  • 10 bit @ 4 GS/s
  • Analog input on MCX coaxial connector (50 ohm, single ended)
  • 1 channel, Desktop module
  • 1 Vpp input dynamic range with programmable DC offset adjustment
  • Time-stamped Waveform Recorder
  • Memory buffer: 7.2 MS/ch
  • Programmable event size and post-trigger adjustment
  • USB and Optical Link communication interfaces
  • Multi-board synchronization features
  • Daisy chain capability
  • Compliant with CAEN WaveDump, C and LabVIEW Libraries
More info
3 Years Warranty
placeholder
placeholder

Overview

The DT5761 is the CAEN Waveform Digitizer with the highest sampling rate Flash ADC (10 bit @ 4GS/s).

It can record fast signals from fast organic, inorganic and liquid scintillators coupled to PMTs or Silicon Photomultipliers, Diamond detectors and others, and save them with high efficiency and precision for offline advanced timing analysis. The acquisition can be externally vetoed/gated. Multiple boards can be synchronized to build up complex systems.

The data stream is written in a circular memory buffer with independent read/write access, which reduces the dead-time of the acquisition process.

The acquisition is fully controlled by CAEN WaveDump software, which manages the settings, plots and saves the waveforms. Libraries and demo software in C and LabView are available for integration and customization of specific acquisition systems.

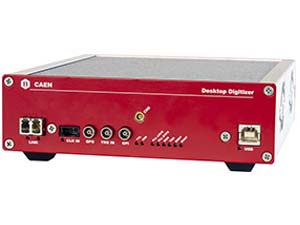

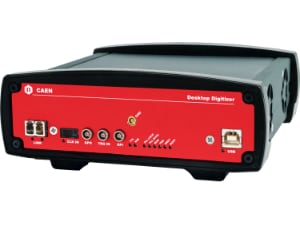

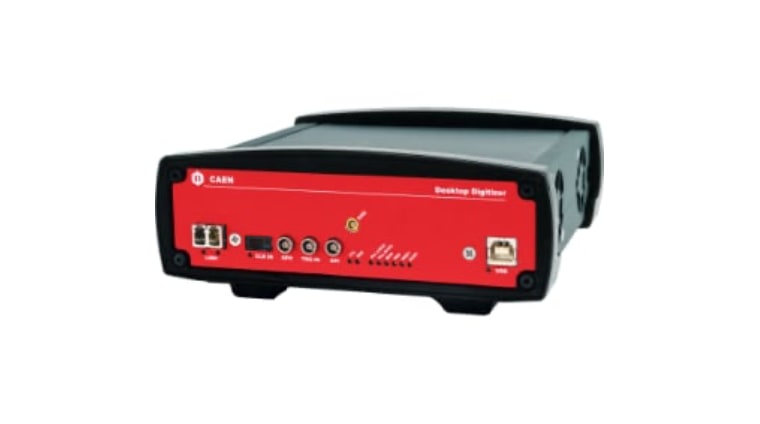

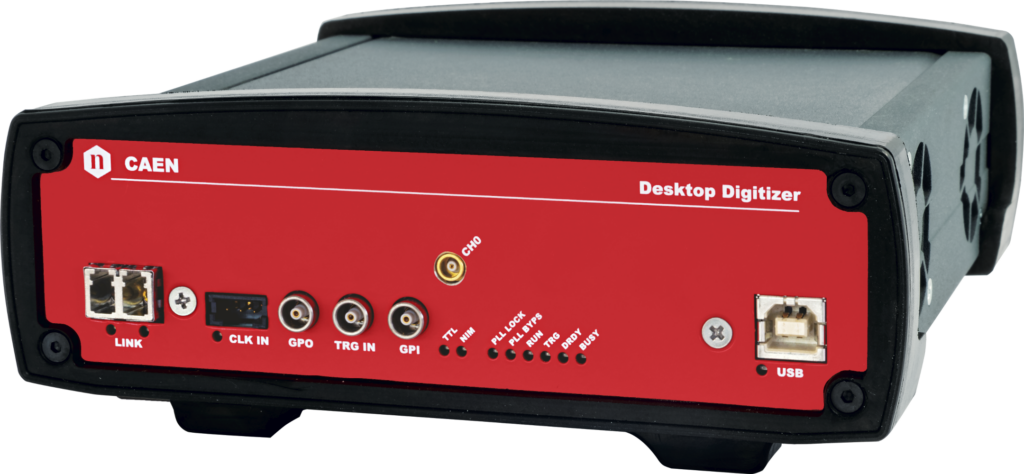

The DT5761 comes in a Desktop form factor with 1 input channel. The communication to and from the board is provided through USB and Optical Link interfaces.

Technical Specifications

GENERAL

Weight: 670 g
Form Factor: 154x50x164 mm3 (WxHxD) Desktop

ANALOG INPUT

Channels: 1 channel single ended
Bandwidth: 1 GHz
Impedance: 50 Ohm
Connector: MCX
Full-Scale Range: 1 Vpp
Offset: Programmable DAC for DC offset adjustment in the full-scale range

DIGITAL CONVERSION

Resolution: 10 bits
Sampling Rate: 1 GS/s

ADC CLOCK GENERATION
  • Clock source: internal/external
  • Onboard programmable PLL provides generation of the main board clocks from an internal (50 MHz local Oscillator) or external (front panel CLK-IN connector) reference
DIGITAL I/O
CLK-IN (AMP Modu II)
AC coupled differential input clock LVDS, ECL, PECL, LVPECL, CML (single ended NIM/TTL available by CAEN adapter)
Jitter<100ppm requested
GPO (LEMO)
General purpose digital output
NIM/TTL, Rt = 50 Ohm

GPI (LEMO)
General purpose digital input
NIM/TTL, Zin = 50 Ohm
TRG-IN (LEMO)
External trigger digital input
NIM/TTL, Zin = 50 Ohm
ACQUISITION MEMORY
  • 7.2 MS/ch (1.9 ms @ 4 GS/s) or 57.6 MS/ch (15 ms @ 4 GS/s) Multi-event Buffer divisible into 1 ÷ 1024 buffers
  • Independent read and write access
  • Programmable event size and pre/post-trigger
TRIGGER
Trigger Source
Self-trigger: channel over/under threshold for Common trigger generation
External-trigger: Common by TRG-IN connector
Software-trigger: Common by software command
Trigger Time Stamp
Waveform Recording: 31-bit counter, 16 ns resolution, 17 s range; 48-bit extension by firmware

Trigger Propagation
GPO digital output
SYNCHRONIZATION
Clock Propagation
One-to-many: clock distribution from DT4700 to CLK-IN connector
Acquisition Synchronization
Sync Start/Stop through digital I/O (TRG-IN input, GPO output)
Trigger Time Stamp Alignment
By GPI input connector
ADC & MEMORY CONTROLLER FPGA

Two Altera Cyclone III EP3C16

COMMUNICATION INTERFACE

USB: USB 2.0 compliant Transfer rate up to 30 MB/s
Optical Link: CAEN CONET proprietary protocol, up to 80 MB/s transfer rate
Daisy chainable: it is possible to connect up to 8/32 ADC modules to a single Optical Link Controller (Mod.A2818/A3818)

FIRMWARE

Waveform Recording Firmware: Free firmware for waveform recording
Upgrades: Firmware can be upgraded via Optical Link or USB

SOFTWARE

Libraries: General purpose C and LabVIEW Libraries
Readout Software: CAEN WaveDump
Configuration Tools: CAEN Upgrader for Firmware upgrade Direct Register R/W Example codes

POWER CONSUMPTIONS

1.8 A @ 12 V (Typ.)

Compare

Compare with Digitizers.

Loading...

Accessories

A654
Cable assembly LEMO 00 male to MCX male – 1 m
A659
Cable assembly BNC male to MCX male – 1 m
AI2700
Optical Fiber Series
A318
Adapter for Clock signal FISCHER S101A004 male to 3-pin AMPMODU IV female – 10 cm
A317
Cable assembly for Clock distribution 3-pin AMPMODU IV female terminations – 18 cm / 25cm
A4818
USB 3.0 to CONET2 Adapter

Ordering Options

Code Description
WDT5761XAAAA DT5761 - 1 Ch. 10 bit 4 GS/s Digitizer: 7.2MS/ch,EP3C16, SE   RoHS
