AG561H
12 Channel 6 kV/20 µA Common Ground Board
Features
- 12 independently controllable High Voltage channels
- 6 kV / 20 µA output range
- Available with either positive, negative or mixed polarity
- SHV coaxial connectors
- Low ripple
- Under/over-voltage alert, overcurrent and max. voltage protection
- Interlock logic for unit enable
- Software Tool for easy channel management
Overview

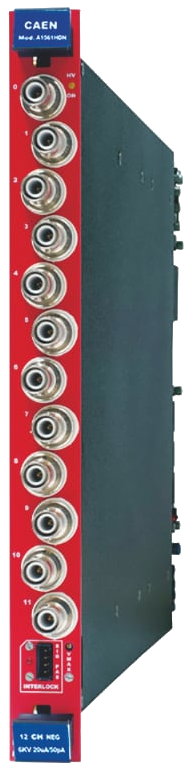

The CAEN Mod. AG561H is a double width board (5 TE wide) that houses 12 Independent high voltage channels. The board is available with positive, negative or mixed polarity. Channels are delivered through SHV connectors.
|
SHV connector
Single width (5 TE wide), 12 channels for Mod. AG561H |
Consult our connectors reference page for technical information.
The channels share a common ground and the output voltage range is 0 ÷ 6 kV with 10 mV monitor resolution. The Maximum output current is 20 μA with 50 pA monitor resolution.
Independently programmable for each channel:
| Output voltage | 0 ÷ 6 kV | step: 100 mV |
| Current limit (Iset) | 0 ÷ 20 μA | step: 500 pA |
| HV Ramp up/down | 1 ÷ 500 V/sec | step: 1 V/sec |
| TRIP parameter | 0 ÷ 999.9 s; 1000 s = Infinite | step: 0.1 s |
Safety features allows the module to perform as a current generator and includes:
| Channels | can be enabled or disabled through the Global Interlock logic. |
| Overvoltage and Undervoltage warning | when the output voltage differs from the programmed value. |
| Overcurrent detection | when a channel attempts to exceed the programmed current limit, it signalled to be in “overcurrent” and enter in a TRIP status. The output voltage is varied to keep the current below the programmed limit for a programmable TRIP time, then the channel is switched off. If TRIP is set to “constant current mode”, the channel behaves like a current generator. |
| Hardware VMAX | maximum output voltage can be set via front panel potentiometer, at the same common value for all the board channels. VMAX value can be read out via software. |
| Safety Board Interlock | this protection disables the HV generation when the HV outputs are not connected to their loads. |
Technical Specifications
- No. of Channels
12 (Common Ground)
- Output Voltage
0÷6 kV
- Polarity
Positive, Negative or Mixed depending on purchased version
- Max. Output Current
20 µA
- Voltage Set Resolution
100 mV
- Voltage Monitor Resolution
10 mV
- Current Set Resolution
500 pA
- Current Monitor Resolution
50 pA
- VMAX hardware
0÷6 kV common for all the board channels
- VMAX hardware accuracy
± 2% of FSR
- VMAX software
0÷6 kV settable for each channel
- VMAX software resolution
1 V
- Ramp Up/Down
- 1÷500 Volt/sec, 1 Volt/sec step
- Voltage Ripple
- 10 ÷ 1000 Hz: < 5 mVpp (typ); < 10 mVpp (max)
- 1 ÷ 20000 kHz: <3 mVpp (typ); < 5 mVpp (max)
- Voltage Monitor vs. Output Voltage Accuracy
± 0.02% ± 1.2 V
- Voltage Set vs. Voltage Monitor Accuracy
± 0.02% ± 1.2 V
- Current Monitor vs. Output Current Accuracy
± 0.2% ± 40 nA
- Current Set vs. Current Monitor Accuracy
± 0.2% ± 40 nA
Compare
Compare with High Voltage Power Supply.
Loading...
Accessories
- HV Cables
- High Voltage Cable Assemblies
Ordering Options
| Code | Description |
|---|---|
| WAG561HDMAAA | AG561HDM - SYx527 H.V. 6 ch channels +6 KV 20 µA + 6 ch channels -6 KV 20 µA - SHV - 50pA res. RoHS |
| WAG561HDNAAA | AG561HDN - SYx527 H.V. channels -6 KV 20 µA SHV (12 ch) - 50pA res. RoHS |
| WAG561HDPAAA | AG561HDP - SYx527 H.V. channels +6 KV 20 µA SHV (12 ch) - 50pA res. RoHS |
