AG523
6 Channel 12 kV/1 mA Common Ground Board
Features
- 6 independently controllable High Voltage channels
- 12 kV / 1 mA output range
- Available with either positive or negative polarity
- CPE HV coaxial connectors
- Low ripple
- Under/over-voltage alert, overcurrent and max. voltage protection
- Interlock logic for unit enable
- Software Tool for easy channel management
Overview

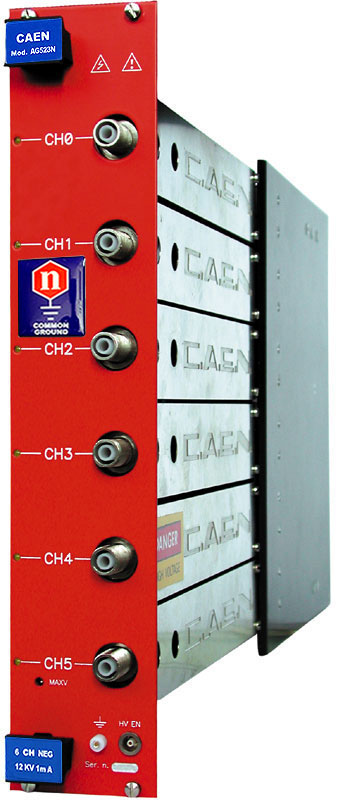

The CAEN Mod. AG523 is a double width board (10 TE wide) that houses 6 Independent high voltage channels available with either positive or negative polarity. The channels share a Common Ground.
|
CPE HV coaxial connector
Double width (10 TE wide), 6 channel for Mod. AG523 |
Consult our connectors reference page for technical information.
The output voltage can be programmed and monitored in the 0 ÷ 12 kV range with 1 V monitor resolution.
The Maximum current full scale is 100 μA, with 10 nA Iset/Imon monitor resolution.
The board features the CPE HV output connectors and the relevant coaxial cable connectors (Mod. A997) are also available.
Independently programmable for each channel:
| Output voltage: | 0 ÷ 12 kV | step: 1 V |
| Current limit | 0 ÷ 100 μA | step: 10 nA |
| V Ramp up/down: | 1 ÷ 500 V/sec | step: 1 V/sec |
| TRIP parameter | 0 ÷ 999.9 s; 1000 s = Infinite | step: 0.1 s |
Safety features allows the module to perform as a current generator and includes:
| Channels | can be enabled or disabled through the Global Interlock logic. |
| Overvoltage and Undervoltage warning | when the output voltage differs from the programmed value. |
| Overcurrent detection | when a channel attempts to exceed the programmed current limit, it signalled to be in “overcurrent” and enter in a TRIP status. The output voltage is varied to keep the current below the programmed limit for a programmable TRIP time, then the channel is switched off. If TRIP is set to “constant current mode”, the channel behaves like a current generator. |
| Hardware VMAX | maximum output voltage can be set, via front panel potentiometer, at the same common value for all the board channels. VMAX value can be read out via software. |
| Safety Board Interlock | this protection disables the HV generation when the HV outputs are not connected to their loads. |
Accessories available:
- HV coaxial cable connector (Mod. A997)
Technical Specifications
- No. of Channels
6 (Common Ground)
- Output Voltage
0÷12 kV
- Polarity
Positive / Negative depending on purchased version
- Max. Output Current
1 mA
- Voltage Set Resolution
1 V
- Voltage Monitor Resolution
1 V
- Current Set Resolution
100 nA
- Current Monitor Resolution
100 nA
- VMAX hardware
0÷12 kV common for all the board channels
- VMAX hardware accuracy
± 2% of FSR
- VMAX software
0÷12 kV settable for each channel
- VMAX software resolution
1 V
- Ramp Up/Down
1÷500 Volt/sec, 1 Volt/sec step
- Voltage Ripple
< 30 mVpp
- Voltage Monitor vs. Output Voltage Accuracy
± 0.3% ± 2 V
- Voltage Set vs. Voltage Monitor Accuracy
± 0.3% ± 1 V
- Current Monitor vs. Output Current Accuracy
± 2% ± 1 µA
- Current Set vs. Current Monitor Accuracy
± 2% ± 0.1 µA
Compare
Compare with High Voltage Power Supply.
Loading...
Ordering Options
| Code | Description |
|---|---|
| WAG523XAAAAA | AG523N - SYx527 H.V. channels -12 KV 1 mA - CPE Conn. common ground (6 ch 10TE wide) RoHS |
| WAG523XPAAAA | AG523P - SYx527 H.V. channels +12 KV 1 mA - CPE Conn. common ground (6 ch 10TE wide) RoHS |
