12/24 Channel, 3.5 kV, 3.5/0,35 mA (9W) Common Floating Return Dual Range Boards

Features

  • 12/24 independently controllable High Voltage channels
  • 3.5 kV output voltage (9 W)
  • Dual range current:
    • High Power: 3.5 mA (10 nA Current monitor resolution)
    • High resolution: 350 µA (1 nA Current monitor resolution)
  • Available with either positive or negative polarity
  • Radiall 52 pin or SHV coaxial connectors
  • Common floating return shared by all channels
  • Low ripple
  • Under/over-voltage alert, overcurrent and max. voltage protection
  • Interlock logic for unit enable
  • Software Tool for easy channel management

Overview

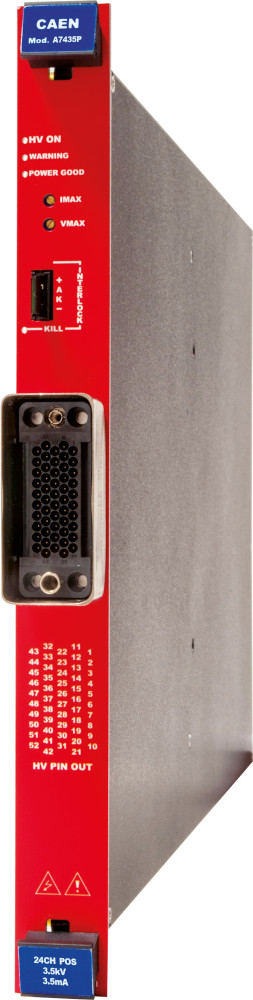

The power supplies of the A7435 family house 24 or 12 independent high voltage channels. The A7435 is available in different versions equipped with SHV or with Radiall Multipin connector.

blank Radiall multipin connector

Single width (5 TE wide), 24 channel for Mod.A7435N, A7435P

blank SHV connector

Single width (5 TE wide), 12 channel for Mod.A7435DP, A7435DN
Double width (10 TE wide), 24 channel for Mod.A7435SP, A7435SN

Consult our connectors reference page for technical information.

The channels share a Common Floating Return, which allows on-detector grounding, reducing the noise level. The board is available with either positive or negative output polarity.

The output voltage range is 0 ÷ 3.5 kV, with 5 mV of set and monitor resolution. The output channels offer dual current ranges (software selectable):

High Power: 0 ÷ 3.5 mA I set resolution: 10 nA I mon resolution: 10 nA
High Resolution: 0 ÷ 350 μA I set resolution: 10 nA I mon resolution: 1 nA

Independently programmable for each channel:

Output voltage 0 ÷ 3.5 kV step: 5 mV
Current limit (Iset) 0 ÷ 3.5 mA step: 10 nA
V Ramp up/down: 1 ÷ 500 V/sec step: 1 V/sec
TRIP parameter 0 ÷ 999.9 s; 1000 s = Infinite step: 0.1 s

Safety features allows the module to perform as a current generator and includes:

Channels can be enabled or disabled through the Global Interlock logic.
Overvoltage and Undervoltage warning when the output voltage differs from the programmed value.
Overcurrent detection when a channel attempts to exceed the programmed current limit, it signalled to be in “overcurrent” and enter in a TRIP status. The output voltage is varied to keep the current below the programmed limit for a programmable TRIP time, then the channel is switched off. If TRIP is set to “constant current mode”, the channel behaves like a current generator.
Hardware VMAX and IMAX maximum output voltage and maximum current value can be fixed, via front panel potentiometer, at the same common value for all the board channels. IMAX and VMAX values can be read out via software.
Safety Board Interlock this protection disables the HV generation when the HV outputs are not connected to their loads (only for Multipin Connector versions).

For boards with Radiall 52 pin connector are available the following accessories:

Technical Specifications

No. of Channels

12 or 24 (Common Floating Return)

Output Voltage

0÷3.5 kV

Polarity

Positive / Negative depending on purchased version

Max. Output Current

Dual range:

  • High Power: 3.5 mA
  • High Resolution: 350 µA
Voltage Set Resolution

5 mV

Voltage Monitor Resolution

5 mV

Current Set Resolution

10 nA

Current Monitor Resolution

High Power: 10 nA
High Resolution: 1 nA

VMAX hardware

0÷3.5 kV common for all the board channels

VMAX hardware accuracy

± 1% of FSR

VMAX software

0÷3.5 kV settable for each channel

VMAX software resolution

1 V

IMAX hardware

0÷3.5 mA common for all the board channels

IMAX hardware accuracy

± 1% of FSR

Ramp Up/Down

1÷500 Volt/sec, 1 Volt/sec step settable for each channel

Voltage Ripple

10 ÷ 1000 Hz: < 7 mVpp (typ); < 15 mVpp (max)
1 ÷ 20000 kHz: <7 mVpp (typ); < 10 mVpp (max)

Voltage Monitor vs. Output Voltage Accuracy

±0.01% of reading ± 0.03% of Max Output Voltage

Voltage Set vs. Output Voltage Accuracy

±0.01% of setting ± 0.03% of Max Output Voltage

Current Monitor vs. Output Current Accuracy

High Power:  ± 0.02% ± 5 µA
High Resolution:  ± 0.02% ± 1 µA

Current Set vs. Output Current Accuracy
  • High Power:  ± 0.02% ± 5 µA
  • High Resolution:  ± 0.02% ± 1 µA
Maximum output power

9 W per channel (software safety limit)

Consumption @ full power

24 channels (A7435, A7435S): 300 W
12 channels (A7435D): 155 W

Compare

Compare with High Voltage Power Supply.
