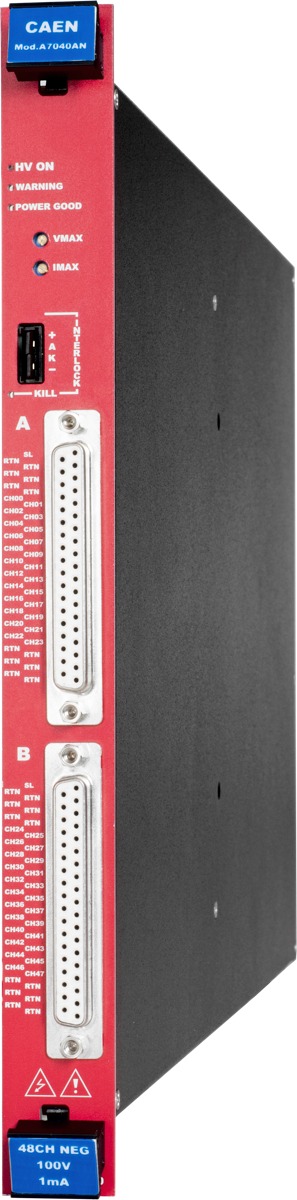

A7040

48 Channel 100V / 1mA Common Floating Return Board

Features

  • 48 independently controllable High Voltage channels
  • 100 V / 1 mA output range
  • Available with either positive or negative polarity
  • DB37 Multipin connectors
  • Common floating return shared by all channels
  • Low ripple
  • Under/over-voltage alert, overcurrent and max. voltage protection
  • Interlock logic for unit enable
  • Software Tool for easy channel management

Overview

The CAEN Mod. A7040 is the new high density general purpose power supply offering you all the safety, performance and control of a completely independent channel technology at the cost effective price of a distributor!

Well suited for large Silicon detectors arrays, this single width board (5 TE wide) family houses 48 independent High Voltage channels available with either positive or negative polarity, equipped with DB37 connector. The maximum output current is 1 mA, with 2 nA monitor resolution. The maximum output voltage can be set through a potentiometer to a value which is common to all channels and can be read out via software.

The A7040 channels share a Common Floating Return, which allows on-detector grounding reducing the noise level; the floating return is insulated from the crate earth up to ±50 V. Channels are delivered through DB37 connectors.

blank DB37 connector

Single width (5 TE wide), 48 channels for Mod. A7040AN, A7040AP

Consult our connectors reference page for technical information.

The output voltage range is 0 ÷ 100V, with 0.2 mV monitor resolution. The maximum output current is 1 mA with 2 nA monitor resolution.

Independently programmable for each channel:

Output voltage 0 ÷ 100 V step: 2 mV
Current limit (Iset) 0 ÷ 1 mA step: 20 nA
V Ramp up/down
1 ÷ 50 V/range step: 1 V/sec
TRIP parameter 0 ÷ 999.9 s; 1000 s = Infinite step: 0.1 s

Safety features allows the module to perform as a current generator and includes:

Channels
can be enabled or disabled through the Global Interlock logic.
Overvoltage and Undervoltage warning when the output voltage differs from the programmed value.
Overcurrent detection when a channel attempts to exceed the programmed current limit, it signalled to be in “overcurrent” and enter in a TRIP status. The output voltage is varied to keep the current below the programmed limit for a programmable TRIP time, then the channel is switched off. If TRIP is set to “constant current mode”, the channel behaves like a current generator.
Hardware VMAX
maximum output voltage can be set, via front panel potentiometer, at the same common value for all the board channels. VMAX value can be read out via software.
Safety Board Interlock this protection disables the HV generation when the HV outputs are not connected to their loads.

Technical Specifications

Output Connector

DB37

Polarity

Pos. / Neg. depending on purchased version; common floating RTN ±30V

Output Voltage

0 ÷ 100 V

Max. Output Current

1 mA

VSet Resolution

2 mV

VMon Resolution

0.2 mV

Current Set Resolution

20 nA

Current Monitor Resolution

2 nA

IMAX hardware

0÷1 mA

IMAX hardware resolution

1 µA

IMAX hardware accuracy

< 2% of FSR

VMAX hardware

0 ÷ 100 V common for all channels

VMAX hardware resolution

1 V

VMAX hardware accuracy

<± 1% of FSR

VMAX software

0 ÷ 100 V settable for each channel

Ramp Up / Ramp Down

Max. time an “overcurrent” is allowed to last (seconds); common to all channels. A channel in “overcurrent” works as a current generator; output voltage varies in order to keep output current lower than the programmed value. “Overcurrent” lasting more than set value, causes the channel to “trip”. Output voltage will drop to zero either at Rampdown rate or at the fastest available rate, depending on Power Down setting; in both cases the channel is put in the off state. If trip= INFINITE, “overcurrent” lasts indefinitely. TRIP range: 0 ÷ 999.9 s; 1000 s = Infinite. Step = 0.1 s

Voltage Ripple
  • 20 ÷ 1000 Hz <3 mVpp typical; 5 mVpp max
  • 1 ÷ 20000 kHz <3 mVpp typical; 5 mVpp max
Accuracy
VMon vs. VOut

  • typical: ± 0.1% ± 10 mV
  • max: ± 0.1% ± 50 mV
IMon vs. IOut

  • typical: ±0.5% ±10nA
  • max: ± 0.1% ± 50 mV
VSet vs. VOut

  • typical: ± 0.1% ± 10 mV
  • max: ± 0.1% ± 50 mV
IOut vs. ISet

  • typical: ±0,5% ±100nA
  • max: ±0.5% ±1µA
Channel maximum output power

0.1 W

Max power consumption

60 W

Load regulation

<0.01% (VSet = 90V, IOut 90 µA ÷900 µA)

Operating temperature

0 ÷ 45°C

Storage temperature

-10 ÷ 70°C

Humidity

0 – 80% non-condensing

Altitude

2000m

Safety Standard– ROHS – Halogen free

ROHS

MTBF

Base: 120000 hours; Channel: 2400000 hours; TOT: 35000 hours

EMC qualification

CE Standards

Compare

Compare with High Voltage Power Supply.

Loading...

Accessories

HV Cables
High Voltage Cable Assemblies

Ordering Options

Code Description
WA7040ANXAA4 A7040AN - SYx527 H.V. channels -100V/1mA - DB37 Conn. common floating (48 ch)   RoHS
WA7040APXAA4 A7040AP - SYx527 H.V. channels +100V/1mA - DB37 Conn. common floating (48 ch)   RoHS
