A7030

12/24/36/48 Channel 3 kV/1 mA (1.5W) Common Floating Return Boards

Features

  • 12/24/36/48 independently controllable High Voltage channels
  • 3 kV / 1 mA (1.5 W) output range
  • Available with either positive or negative polarity
  • Radiall 52 pin or SHV coaxial connectors
  • Common floating return shared by all channels
  • Low ripple
  • Under/over-voltage alert, overcurrent and max. voltage protection
  • Interlock logic for unit enable
  • Software Tool for easy channel management

Overview

The CAEN Mod.A7030 board is the line of power supply that offers you all the safety, performance and control of a completely independent channel technology at the cost effective price of a distributor! You will never have to compromise!

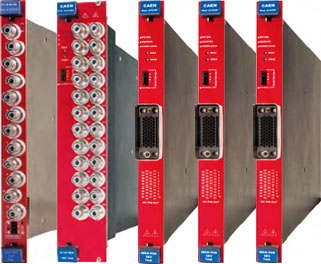

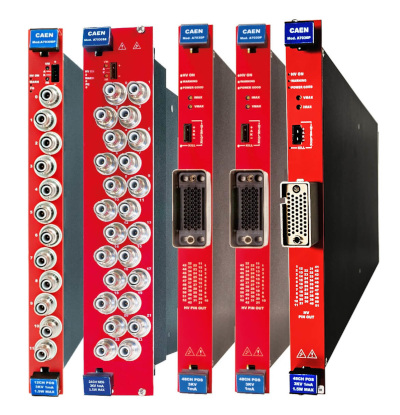

Well suited for large PMT arrays, this family houses 48, 36, 24 or 12 independent high voltage channels available with either positive or negative polarity. The output voltage range is 0 ÷ 3 kV, with 5 mV monitor resolution. The maximum output current is 1 mA (1.5 W max. output power), with 2 nA monitor resolution. The A7030 is supplied in different versions equipped with SHV or with Radiall multipin connector.

Two A7030 versions are designed for higher altitudes (operating altitude: up to 5000 m): A7030Y – 48 channel Radiall multipin connector and A7030YS – 24 channel SHV connectors.

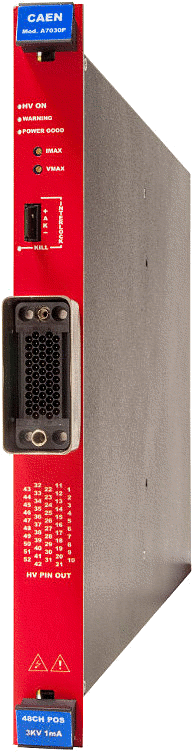

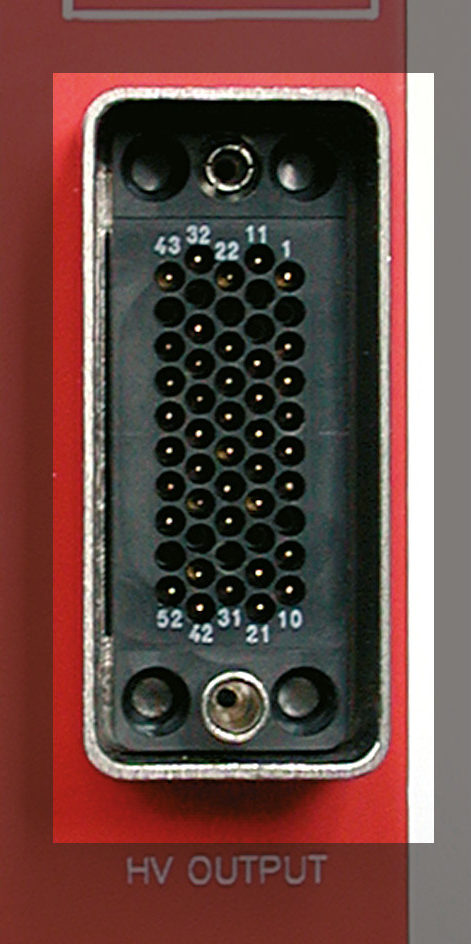

blank Radiall multipin connector

Single width (5 TE wide), 24 channel for Mod.A7030LP, A7030LN
Single width (5 TE wide), 36 channel for Mod.A7030TP, A7030TN
Single width (5 TE wide), 48 channel for Mod. A7030YN, A7030YP, A7030N, A7030P

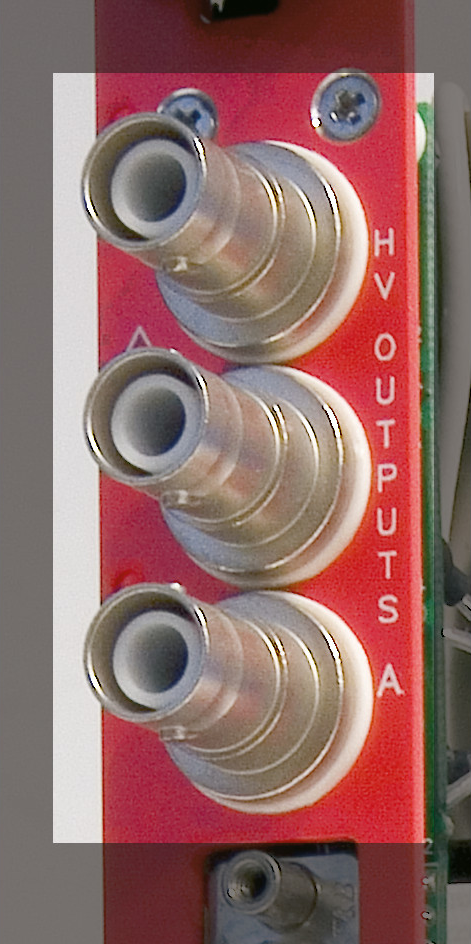

blank SHV connector

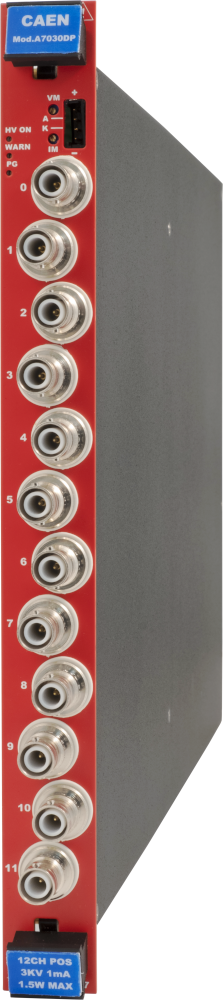

Single width (5 TE wide), 12 channel for Mod. A7030SN, A7030SP, A7030DP, A7030DN

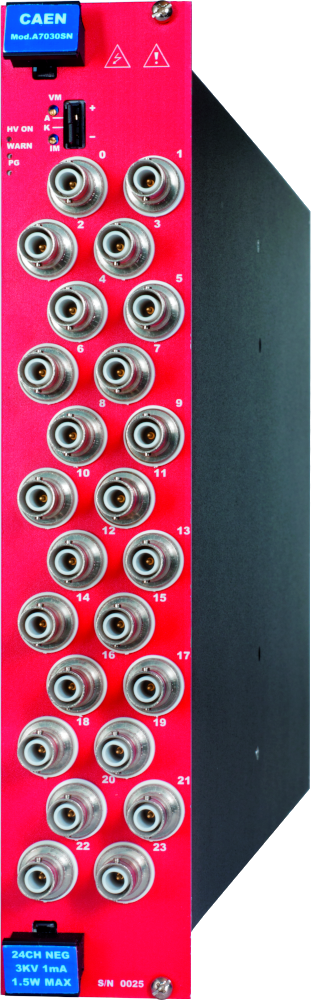

Double width (10 TE wide), 24 channel for Mod. A7030YSN, A7030YSP

Consult our connectors reference page for technical information.

Independently programmable for each channel:

Output voltage: 0 ÷ 3 kV step: 50 mV
Current limit 0 ÷ 1 mA step: 20 nA
V Ramp up/down: 1 ÷ 500 V/sec step: 1 V/sec
TRIP parameter 0 ÷ 999.9 s; 1000 s = Infinite step: 0.1 s

Available as option (Mod. A7031)  12 channe 2KV/1mA (2W) – SHV Connector  – common floating board

Safety features allows the module to perform as a current generator and includes:

Channels
can be enabled or disabled through the Global Interlock logic.
Overvoltage and Undervoltage warning when the output voltage differs from the programmed value.
Overcurrent detection when a channel attempts to exceed the programmed current limit (Iset), it signaled to be in “overcurrent” and enter in a TRIP status: the channel is switched off after a programmable TRIP time. The output current is permitted to exceed Iset value, the channel behaves like a current generator only if the IMAX current value is reached.
Hardware VMAX and IMAX
maximum output voltage and maximum current value can be fixed, via front panel potentiometer, at the same common value for all the board channels. IMAX and VMAX values can be read out via software.
Safety Board Interlock this protection disables the HV generation when the HV outputs are not connected to their loads (only for Multipin Connector versions).

For boards with Radiall 52 pin connector are available the following accessories:

  • Mate cable connector (Mod. A996) and relevant insertion/extraction tool (Mod. A995): for A7030L, A7030T, A7030, A7030Y
  • 48/36 Channel Multipin Radiall to SHV Adapter (Mod. A648R648): for A7030T, A7030, A7030Y
  • 24 Channel Multipin Radiall to SHV Adapter (Mod. A647R647): for A7030L

Technical Specifications

No. of Channels

12 / 24 / 32 / 48 – Common Floating Return
12 – Common Floating Return (A7031 Version)

Output Voltage

0÷3 kV
0÷2 kV (A7031 version)

Polarity

Positive / Negative depending on purchased version

Max. Output Current

1 mA

Voltage Set Resolution

50 mV

Voltage Monitor Resolution

10 mV

Current Set/Monitor Resolution

20 nA

Current Monitor Resolution

2nA

VMAX hardware

0÷3 kV common for all the board channels
0÷2 kV common for all the board channels (A7031 version)

VMAX hardware accuracy

< ± 1% of FSR

VMAX software

0÷3 kV settable for each channel
0÷2 kV settable for each channe (A7031 version)

VMAX software resolution

1 V

IMAX hardware

0÷1 mA common for all the board channels

IMAX software resolution

1 µA

IMAX hardware accuracy

< ± 1% of FSR

Ramp Up/Down

1÷500 Volt/sec, 1 Volt/sec step settable for each channel

Voltage Ripple
10 ÷ 1000 Hz:

  • Typ: < 15 mVpp / <10 mVpp (A7031)
  • Max: < 20 mVpp / <15 mVpp (A7031)
1 ÷ 20000 kHz:

  • < 10 mVpp (Typ)
  • < 15 mVpp (Max)
Voltage Monitor vs. Output Voltage Accuracy

± 0.3% ± 2 V
± 0.06% ± 1.2 V (A7031)

Voltage Set vs. Voltage Monitor Accuracy

± 0.3% ± 2 V
± 0.06% ± 1.2 V (A7031)

Current Monitor vs. Output Current Accuracy

± 1% ± 1 µA
± 0.1% ± 0.5 μA (A7031)

Maximum output power

1.5 W per channel (A7030 software safety limit)
2 W per channel (A7031 software safety limit)

Consumption @ full power
  • 48 channels (A7030): 160 W
  • 36 channels (A7030T): 120 W
  • 24 channels (A7030S, A7030L): 90 W
  • 12 channels (A7030D): 50 W

Compare

Compare with High Voltage Power Supply.

Loading...

Accessories

A995
Insertion/extraction tool for A996
A996
52 pin cable connector
A647
24 Channel Multipin Radiall to SHV connector Adapter (Max: 8 kV - Desktop)

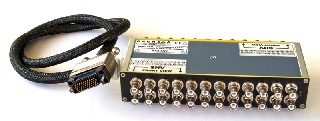

A648
36-48 Channel Multipin Radiall to SHV connector Adapter (Max: 3 kV - Desktop)
R647
24 Channel Multipin Radiall to SHV connector Adapter (Max: 8 kV - 19'' Rack)
R648
48 Channel Radiall to SHV connector Adapter (Max: 3 kV - 19' Rack)
HV Cables
High Voltage Cable Assemblies
A649B
32 Channel Multipin Radiall to SHV connector Adapter (Max: 8kV - Desktop)

Ordering Options

Code Description
WA7030NXAAA4 A7030N - SYx527 H.V. channels -3 KV 1 mA (1.5 W) - Multipin Conn. common floating (48 ch)   RoHS
WA7030PXAAA4 A7030P - SYx527 H.V. channels +3 KV 1 mA (1.5 W) - Multipin Conn. common floating (48 ch)   RoHS
WA7030DPXAA1 A7030DP - SYx527 H.V. channels +3 KV 1 mA (1.5 W) - SHV Conn. common floating (12 ch)   RoHS
WA7030DNXAA1 A7030DN - SYx527 H.V. channels -3 KV 1 mA (1.5 W) - SHV Conn. common floating (12 ch)   RoHS
WA7030TNXAA3 A7030TN - SYx527 H.V. channels -3 KV 1 mA (1.5 W) - Multipin Conn. common floating (36 ch)   RoHS
WA7030SNXAA2 A7030SN - SYx527 H.V. channels -3 KV 1 mA (1.5 W) - SHV Conn. common floating (24 ch)   RoHS
WA7030SPXAA2 A7030SP - SYx527 H.V. channels +3 KV 1 mA (1.5 W) - SHV Conn. common floating (24 ch)   RoHS
WA7030TPXAA3 A7030TP - SYx527 H.V. channels +3 KV 1 mA (1.5 W) - Multipin Conn. common floating (36 ch)   RoHS
WA7030YNXAA4 A7030YN - SYx527 H.V. channels -3 KV 1 mA (1.5 W) - Multipin Conn. common floating (48 ch) High Alt   RoHS
WA7030YPXAA4 A7030YP - SYx527 H.V. channels +3 KV 1 mA (1.5 W) - Multipin Conn. common floating (48 ch) High Alt   RoHS
WA7030YSNXA2 A7030YSN - SYx527 H.V. channels -3 KV 1 mA (1.5 W) - SHV Conn. common floating (24 ch) High Altitude   RoHS
WA7030YSPXA2 A7030YSP - SYx527 H.V. channels +3 KV 1 mA (1.5 W) - SHV Conn. common floating (24 ch) High Altitude   RoHS
WA7030LNXAA2 A7030LN - SYx527 H.V. channels -3 KV 1 mA (1.5 W) - Multipin Conn. common floating (24 ch)   RoHS
WA7030LPXAA2 A7030LP - SYx527 H.V. channels +3 KV 1 mA (1.5 W) - Multipin Conn. common floating (24 ch)   RoHS

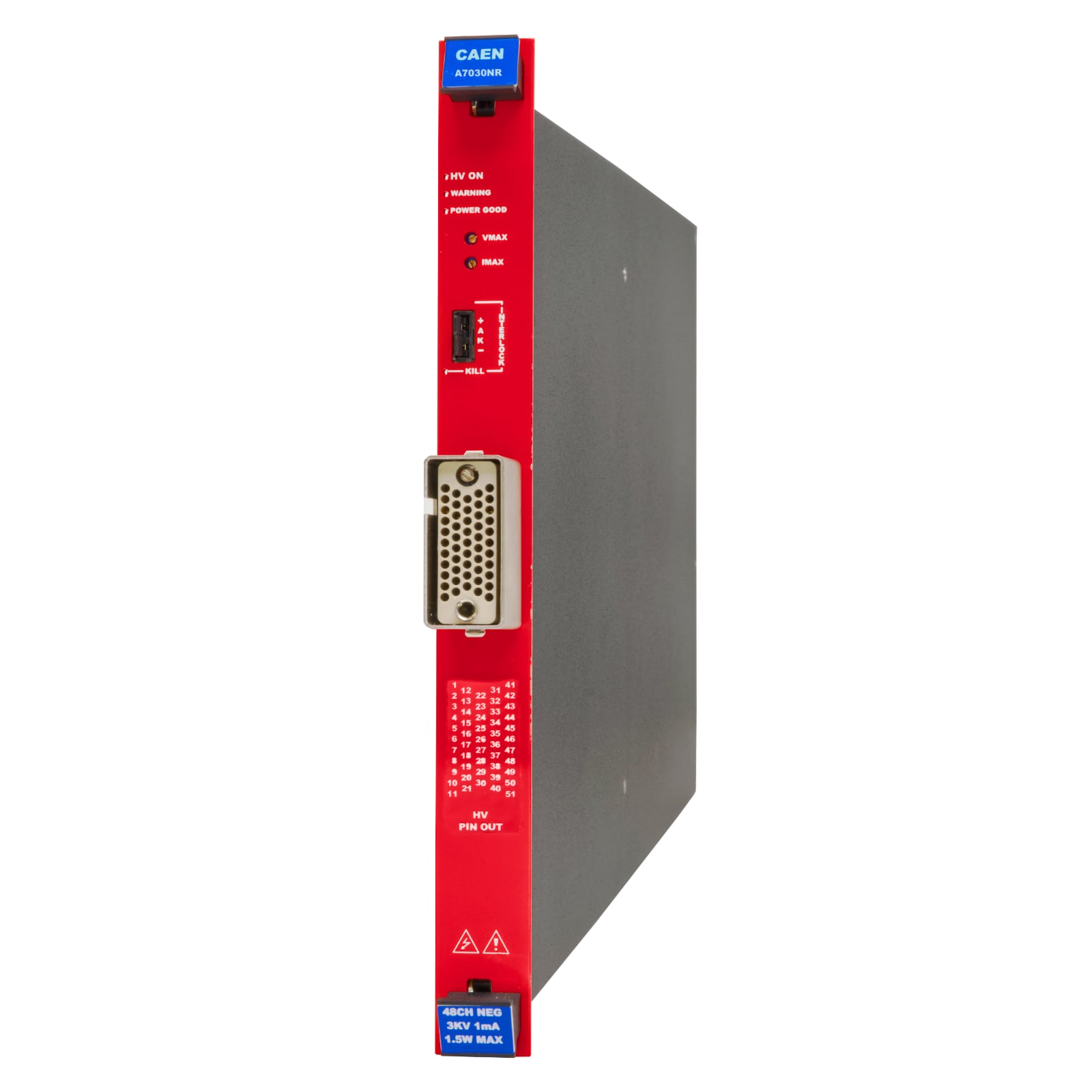

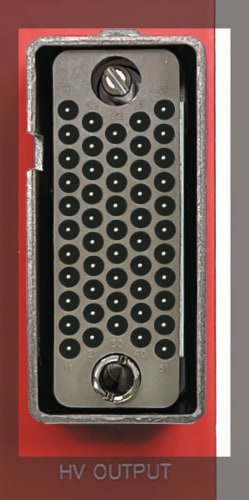

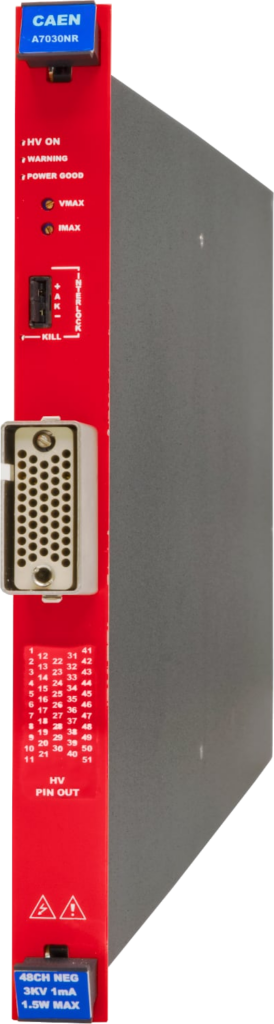

WA7030NXAAR4 A7030NR - SYx527 H.V. channels -3 KV 1 mA (1.5 W) - Redel Conn. common floating (48 ch)   RoHS
WA7030PXAAR4 A7030PR - SYx527 H.V. channels +3 KV 1 mA (1.5 W) - Redel Conn. common floating (48 ch)   RoHS
WA7030LNXAR2 A7030LNR - SYx527 H.V. channels -3 KV 1 mA (1.5 W) - Redel Conn. common floating (24 ch)   RoHS
WA7030LPXAR2 A7030LPR - SYx527 H.V. channels +3 KV 1 mA (1.5 W) - Redel Conn. common floating (24 ch)   RoHS
WA7030TNXAR3 A7030TNR - SYx527 H.V. channels -3 KV 1 mA (1.5 W) - Redel Conn. common floating (36 ch)   RoHS
WA7030TPXAR3 A7030TPR - SYx527 H.V. channels +3 KV 1 mA (1.5 W) - Redel Conn. common floating (36 ch)   RoHS
WA7030YNXAR4 A7030YNR - SYx527 H.V. channels -3 KV 1 mA (1.5 W) - Redel Conn. common floating (48 ch) High Alt   RoHS
WA7030YPXAR4 A7030YPR - SYx527 H.V. channels +3 KV 1 mA (1.5 W) - Redel Conn. common floating (48 ch) High Alt   RoHS
