8 Channel 9 kV/200-20 µA Individual Floating Channel Dual Range Board
Features
- 8 independently controllable High Voltage channels
- Maximum output voltage: 9 kV
- Dual range current:
- High Power: 200 µA (1 nA monitor resolution)
- High resolution: 20 µA (50 pA monitor resolution)
- Available with Negative / Positive Polarity
- CPE HV coaxial connectors
- Floating Type: Individual Floating Channel
- Low ripple
- Under/over-voltage alert, overcurrent and max. voltage protection
- Interlock logic for unit enable
- Software Tool for easy channel management
Overview

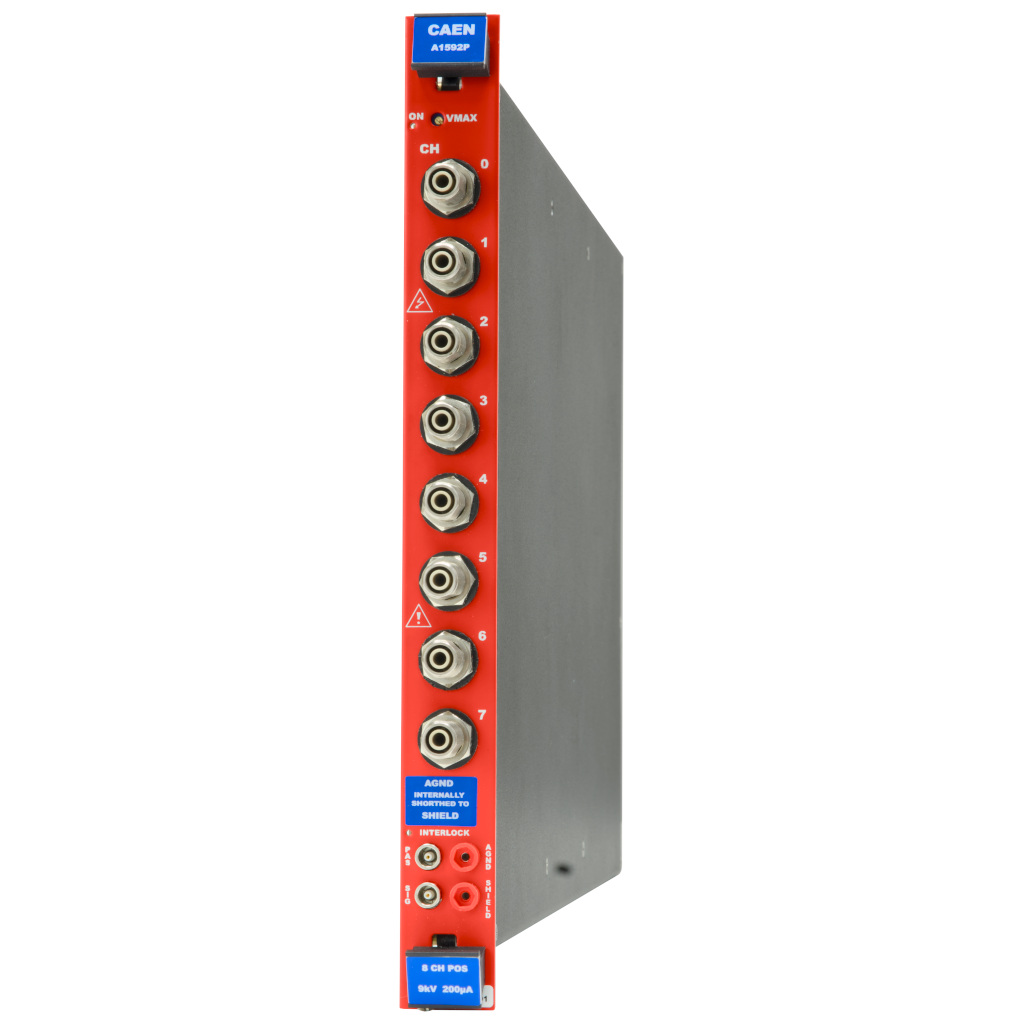

The CAEN Mod A1592 is a single width board (5 TE wide) that houses 8 independent high voltage channels.
All channels have independent floating returns, isolated up to 50 V from each other and from chassis/crate ground (Individual Floating channel) The board is available with positive or negative output polarity Channels are delivered with CPE HV coaxial connectors.
|
CPE HV coaxial connector
Single width (5 TE wide), 8 channel for Mod.A1592N, A1592P |
Consult our connectors reference page for technical information.
The output voltage range is 0 ÷ 9000 V, with 200 mV monitor resolution. The output channels offer dual current ranges (software selectable):
| High Power: | 0 ÷ 200 µA | I set resolution: 4 nA | I mon resolution: 1 nA |
| High Resolution: | 0 ÷ 20 μA | I set resolution: 4 nA | I mon resolution: 50 pA |
Independently programmable for each channel:
| Output voltage |
0 ÷ 9 kV | step: 200 mV |
| Current limit | 0 ÷ 200 / 20 µA selectable | step: 4 nA |
| V Ramp up/down |
1 ÷ 500 V/sec | step: 1 V/sec |
| TRIP parameter | 0 ÷ 999.9 s; 1000 s = Infinite | step: 0.1 s |
Safety features allows the module to perform as a current generator and includes:
| Channels | can be enabled or disabled through the Global Interlock logic. |
| Overvoltage and Undervoltage warning | when the output voltage differs from the programmed value. |
| Overcurrent detection | when a channel attempts to exceed the programmed current limit, it signalled to be in “overcurrent” and enter in a TRIP status. The output voltage is varied to keep the current below the programmed limit for a programmable TRIP time, then the channel is switched off. If TRIP is set to “constant current mode”, the channel behaves like a current generator. |
| Hardware VMAX | maximum output voltage can be set, via front panel potentiometer, at the same common value for all the board channels. VMAX value can be read out via software. |
Technical Specifications
- No. of Channels
8 (Common Floating Return)
- Output Voltage
0÷9 kV
- Polarity
Positive, Negative or Mixed depending on purchased version
- Max. Output Current
Dual range:
- High Power: 200 µA
- High Resolution: 20 µA
- Voltage Set Resolution
200 mV
- Voltage Monitor Resolution
200 mV
- Current Set Resolution
4 nA
- Current Monitor Resolution
- High Power: 1 nA
- High Resolution: 50 pA
- VMAX hardware
0÷9 kV common for all the board channels
- VMAX hardware accuracy
± 2% of FSR
- VMAX software
0÷9 kV settable for each channel
- VMAX software resolution
1 V
- Ramp Up/Down
1÷500 Volt/sec, 1 Volt/sec step
- Maximum output power
1.8 W per channel
- Voltage Ripple
20 ÷ 1000 Hz: Typ <5 mVpp; Max <10 mVpp
1 ÷ 20000 kHz: Typ <3 mVpp; Max <5 mVpp
- Voltage Monitor vs. Output Voltage Accuracy
± 0.3% ± 0.5 V typical
- Voltage Set vs. Output Voltage Accuracy
± 0.3% ± 0.5 V typical
- Current Monitor vs. Output Current Accuracy
- High Power: ± 1% ± 20 nA typical
- High Resolution: ± 1% ± 2 nA typical
- Current Set vs. Output Current Accuracy
- High Power: ± 1% ± 20 nA typical
- High Resolution: ± 1% ± 2 nA typical
