A1590
Obsolete
16 Channel 9 kV / 50 µA Common Floating Return Board
Features
- 16 independently controllable High Voltage channels
- 9 kV / 50 µA output range
- Available with either positive or negative polarity
- Radiall 52 pin connector
- Common floating return shared by all channels
- Low ripple
- Under/over-voltage alert, overcurrent and max. voltage protection
- Interlock logic for unit enable
- Software Tool for easy channel management
Overview

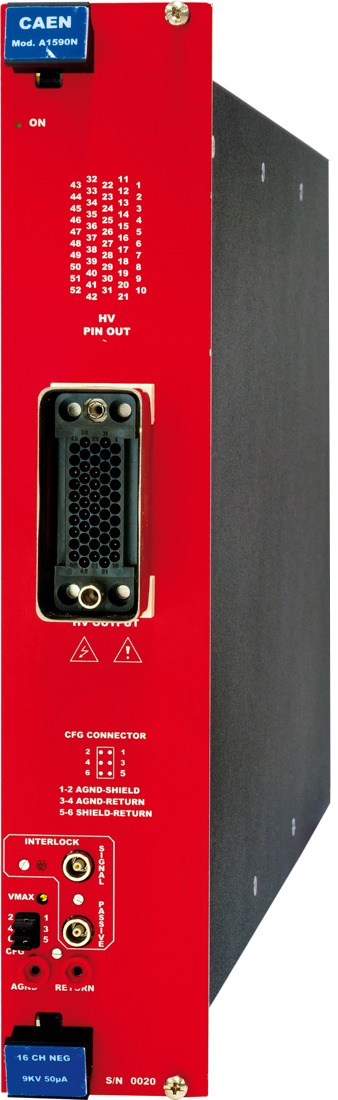

The CAEN Mod. A1590 board is a double width board (10 TE wide) that houses 16 Independent high voltage channels delivered through Radiall 52 pin HV connectors. The board is available with either positive or negative output polarity.
|
Radiall 52 pin connector
Single width (5 TE wide), 16 channels for Mod. A1590 |
Consult our connectors reference page for technical information.
The channels share a Common Floating Return, which allows on-detector grounding reducing the noise level. The floating return is insulated from the crate earth up to ±50 V (with a 65 V hardware limit). The output voltage range is 0 ÷ 9 kV with 10 mV set and monitor resolution while the Maximum output current is 50 μA with 100 pA monitor resolution.
Independently programmable for each channel:
| Output voltage: | 0 ÷ 9 kV | step: 200 mV |
| Current limit | 0 ÷ 50 μA | step: 1 nA |
| V Ramp up/down: | 1 ÷ 500 V/sec | step: 1 V/sec |
| TRIP parameter: | 0 ÷ 999.9 s; 1000 s = Infinite | step: 0.1 s |
Safety features allows the module to perform as a current generator and includes:
| Channels | can be enabled or disabled through the Global Interlock logic. |
| Overvoltage and Undervoltage warning | when the output voltage differs from the programmed value. |
| Overcurrent detection | when a channel attempts to exceed the programmed current limit, it signalled to be in “overcurrent” and enter in a TRIP status. The output voltage is varied to keep the current below the programmed limit for a programmable TRIP time, then the channel is switched off. If TRIP is set to “constant current mode”, the channel behaves like a current generator. |
| Hardware VMAX | maximum output voltage can be set, via front panel potentiometer, at the same common value for all the board channels. VMAX value can be read out via software. |
| Safety Board Interlock | this protection disables the HV generation when the HV outputs are not connected to their loads. |
Accessories available:
Technical Specifications
- No. of Channels
16 (Common Floating Return)
- Output Voltage
0÷9 kV
- Polarity
Positive / Negative depending on purchased version
- Max. Output Current
50 µA
- Voltage Set Resolution
200 mV
- Voltage Monitor Resolution
10 mV
- Current Set Resolution
1 nA
- Current Monitor Resolution
100 pA
- VMAX hardware
0÷9 kV common for all the board channels
- VMAX hardware accuracy
± 2% of FSR
- VMAX software
0÷9 kV settable for each channel
- VMAX software resolution
1 V
- Ramp Up/Down
1÷500 Volt/sec, 1 Volt/sec step settable for each channel
- Trip
Max. time an “overcurrent” can last (seconds); common to all channels. A channel in “overcurrent” works as a current generator; output voltage varies in order to keep output current lower than the programmed value. “Overcurrent” lasting more than set value, causes the channel to “trip”. Output voltage will drop to zero either at Ramp-down rate or at the fastest available rate, depending on Power Down setting; in both cases the channel is put in the off state. If trip= INFINITE, “overcurrent” lasts indefinitely. TRIP range: 0 ÷ 999.9 s; 1000 s = Infinite. Step = 0.1 s
- Voltage Ripple
- < 10 mVpp typical
- < 20 mVpp maximum
- Voltage Monitor vs. Output Voltage Accuracy
± 0.3% ± 1 V
- Voltage Set vs Voltage Monitor Accuracy
± 0.3% ± 1V
- Current Monitor vs. Output Current Accuracy
± 2% ± 2 nA
- Current Set vs. Current Monitor Accuracy
± 2% ± 20 nA
Compare
Compare with High Voltage Power Supply.
Loading...
Ordering Options
| Code | Description |
|---|---|

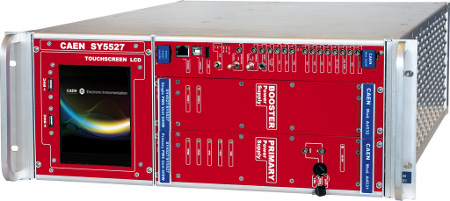

| WA1590NAAAAA | A1590N - SYx527 H.V. channels -9 KV 50 µA - Multipin Conn. comm float (16 ch) (Obsolete) RoHS |
| WA1590PAAAAA | A1590P - SYx527 H.V. channels +9 KV 50 µA - Multipin Conn. comm float (16 ch) (Obsolete) RoHS |
