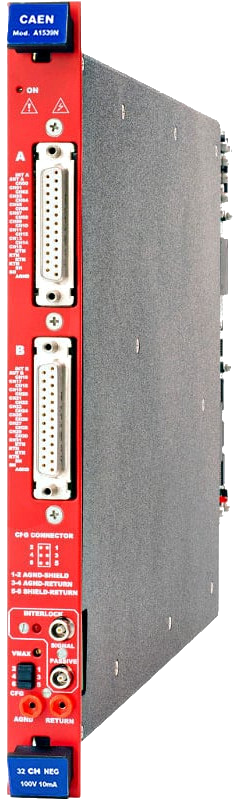

A1539B

32 Channel 100 V/20 mA Common Floating Return Board

Features

  • 32 independently controllable High Voltage channels
  • 100 V / 20 mA output range
  • Available with either positive or negative polarity
  • DB25 Multipin connectors
  • Common floating return shared by all channels
  • Low ripple
  • Under/over-voltage alert, overcurrent and max. voltage protection
  • Interlock logic for unit enable
  • Software Tool for easy channel management

Overview

The power supply A1539B houses 32 independent high voltage channels. A1539B is equipped with DB25 connector:

blank DB25 connector

Single width (5 TE wide), 32 channels for Mod. A1539

Consult our connectors reference page for technical information.

The channels share a Common Floating Return, which allows on-detector grounding, reducing the noise level. The output voltage range is 0 ÷100 V, (10 mV step) with 1 mV monitor resolution. The maximum output current is 20 mA, (200 nA step) with 20 nA monitor resolution.

A1539B is provided with both current and voltage protections. If overcurrent occurs, the relevant channel can be programmed either to turn off after a programmable trip time or to keep on providing the maximum allowed current: this particular feature allows the modules to work as current generator. The maximum output voltage can be set through a potentiometer to a value which is common to all channels and can be read out via software. Channel can be enabled or disabled through the Interlock logic. The HV RAMP-UP and RAMP-DOWN rates may be selected independently for each channel in the 1 ÷ 50 V/s range (1 V/s step).

Safety features allows the module to perform as a current generator and includes:

Channels
can be enabled or disabled through the Global Interlock logic.
Overvoltage and Undervoltage warning when the output voltage differs from the programmed value.
Overcurrent detection When a channel attempts to exceed the programmed current limit, it signalled to be in “overcurrent” and enter in a TRIP status. The output voltage is varied to keep the current below the programmed limit for a programmable TRIP time, then the channel is switched off. If TRIP is set to “constant current mode”, the channel behaves like a current generator.
Hardware VMAX
Maximum output voltage can be set, via front panel potentiometer, at the same common value for all the board channels. VMAX value can be read out via software.
Safety Board Interlock This protection allows to disable the primary HV generation when the HV outputs are not connected to their loads.

Technical Specifications

No. of Channels

32 (Common Floating Return)

Output Voltage

0÷100 V

Polarity

Positive / Negative depending on purchased version

Max. Output Current

20 mA

Voltage Set Resolution

10 mV

Voltage Monitor Resolution

1 mV

Current Set Resolution

200 nA

Current Monitor Resolution

20 nA

VMAX hardware

0÷100 V common for all the board channels

VMAX hardware accuracy

1 V

VMAX software

0÷100 V settable for each channel

VMAX software resolution

1 V

Ramp Up/Down

1÷50 Volt/sec, 1 Volt/sec step

Voltage Ripple

< 10 mVpp (Typ)

Vmon vs. Vout accuracy

±0.05 % ±50 mV

Vset Vs. Vout accuracy

±0.05 % ±50 mV

Imon vs. Iout accuracy

±2 % ±20 µA

Iset vs. Iout accuracy

±2 % ±20 µA

Maximum output power

1 W per channel

Power consumption

64 W @ full power

Compare

Compare with High Voltage Power Supply.

Loading...

Ordering Options

Code Description
WA1539BXAAAA A1539BN - SYx527 H.V. channel -100 V 20 mA - Multipin Conn. common floating (32 ch)   RoHS
WA1539BXPAAA A1539BP - SYx527 H.V. channel +100 V 20 mA - Multipin Conn. common floating (32 ch)   RoHS
