A1538D

12 Channel 1.5 kV/10 mA (12W) Common Floating Return Board

Features

  • 12 independently controllable High Voltage channels
  • 1.5 kV / 10 mA output range
  • Available with either positive or negative polarity
  • SHV coaxial connectors
  • Common floating return shared by all channels
  • Low ripple
  • Under/over-voltage alert, overcurrent and max. voltage protection
  • Interlock logic for unit enable
  • Software Tool for easy channel management

Overview

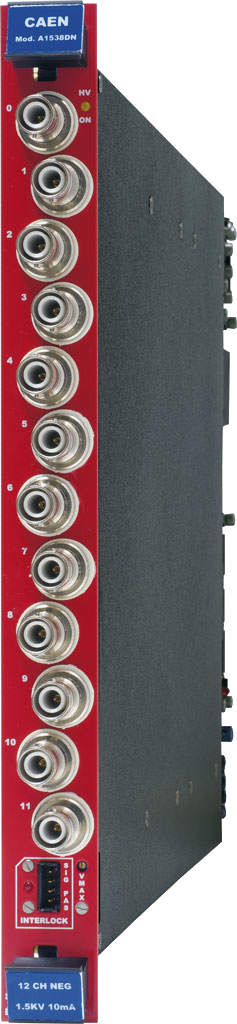

The CAEN Mod. A1538D is a single width (5TE wide) board housing 12 independent high-power channels. The board is available with either positive or negative output polarity and equipped with SHV coaxial connector.

blank SHV connector

Single width (5 TE wide), 12 channels for Mod. A1538D

Consult our connectors reference page for technical information.

The channels share a common floating return, which allows on-detector grounding reducing the noise level; the floating return is insulated from the crate earth up to ±50 V (with a 65 V hardware limit).

The output voltage range is 0 ÷ 1.5 kV, with 10 mA maximum output current (12W channel max output power) and 50 mV set and monitor resolution. The board is available with either positive or negative output polarity and equipped with SHV coaxial connector. The board channels can be enabled according to the interlock logic. The HV RAMP-UP and RAMP-DOWN rates may be selected independently for each channel in the 1 ÷ 500 V/s range (1 V/s step).

Safety features allows the module to perform as a current generator and includes:

Channels
can be enabled or disabled through the Global Interlock logic.
Overvoltage and Undervoltage warning when the output voltage differs from the programmed value.
Overcurrent detection when a channel attempts to exceed the programmed current limit, it signaled to be in “overcurrent” and enter in a TRIP status. The output voltage is varied to keep the current below the programmed limit for a programmable TRIP time, then the channel is switched off. If TRIP is set to “constant current mode”, the channel behaves like a current generator.
Hardware VMAX maximum output voltage can be set, via front panel potentiometer, at the same common value for all the board channels. VMAX value can be read out via software.

Technical Specifications

Polarity

Negative or Positive

Output Voltage

0÷1.5 kV

Max. Output Current

10 mA

No. of Channels

12 (Common Floating Return)

Maximum Output Power

12 W per channel (software safety limit)

Voltage Set / Monitor Resolution

50 mV

Current Set/Monitor Resolution

200 nA

VMAX hardware

0÷1.5 kV common for all the board channels

VMAX hardware accuracy

± 2% of FSR

VMAX software

0÷1.5 kV settable for each channel

VMAX software resolution

1 V

Ramp Up/Down

1÷500 Volt/sec, 1 Volt/sec step

Voltage Ripple

20 ÷ 1000 Hz:

<23 mVpp (typ); <30 mVpp (max)

1 ÷ 20000 kHz:

<15 mVpp (typ); <20 mVpp (max)

Voltage Monitor vs. Output Voltage Accuracy *
  • typical: ± 0.3% ± 0.2 V
  • max: ± 0.3% ± 1 V

* During operation in Overcurrent or when VMAX Hardware is reached (and/or exceeded), VMON values have to be assumed as
“indication”; possible monitor drifts are caused by the different regulation mode.

Voltage Set vs. Voltage Monitor Accuracy
  • typical: ± 0.3% ± 0.2 V
  • max: ± 0.3% ± 1 V
Current Monitor vs. Output Current Accuracy
  • typical: ± 2% ± 3 µA
  • max: ± 2% ± 15 µA
Current Set vs. Current Monitor Accuracy
  • typical: ± 3% ± 3 µA
  • max: ± 3% ± 15 µA
Power Consumption

240 W @ full power

Compare

Compare with High Voltage Power Supply.

Loading...

Accessories

HV Cables
High Voltage Cable Assemblies

Ordering Options

Code Description
WA1538DXAAAA A1538DN - SYx527 negative H.V. -1.5 KV 10 mA 12W -SHV Connector common floating (12 ch)   RoHS
WA1538DXPAAA A1538DP - SYx527 positive H.V. +1.5 KV 10 mA 12W -SHV Connector common floating (12 ch)   RoHS
