A1619
New
16 Channel 250 V/1 mA - 100µA Full Floating Channel Dual Range Board
Features
- 16 independently controllable full floating channels with dual current range
- 250 V (1 mA / 100 µA) output ranges
- 1mV voltage monitor resolution
- Current monitor resolution:
- high range: 1 nA
- low range: 100 pA
- Programmable voltage ramp up / down rates
- Typical voltage ripple smaller than 3 mVpp (1 KHz ÷ 20 MHz)
- Overcurrent programmable protections
- Programmable TRIP parameter
- DB37 connector
- Current generator operation in overcurrent condition
Overview

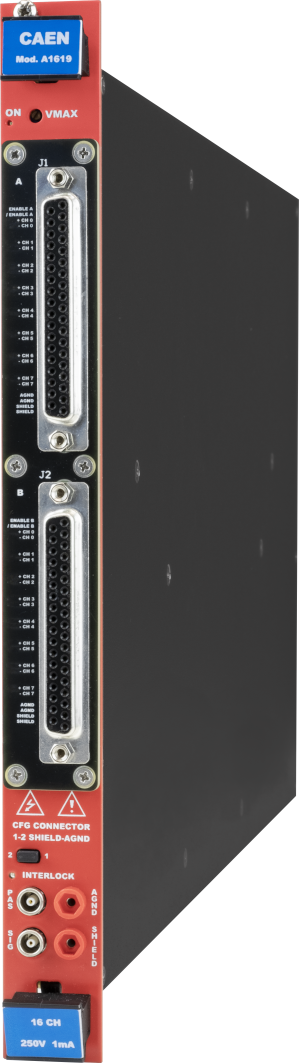

The CAEN Mod.A1619 is a single width board (5TE wide) that houses 16 individual floating HV channels, delivered through DB37 connector. The out output voltage is 0 ÷ 250 V with 10mV set/monitor resolution. The maximum current value is 1 mA with a 100 nA setting resolution (low range: 100μA; 10nA setting resolution).
|
DB37 connector
Single width (5 TE wide), 16 channels for Mod. A1619 |
Consult our connectors reference page for technical information.
The channels share a Individual Floating Channels, which allows on-detector grounding, reducing the noise level. A global enable/disable connector allows to disable the channels. The voltage ramp rates may be set independently for each channel and offer dual current ranges (software selectable).
Safety features allows the module to perform as a current generator and includes:
| Channels | can be enabled or disabled through the Global Interlock logic. |
| Overvoltage and Undervoltage warning | when the output voltage differs from the programmed value. |
| Overcurrent detection | when a channel attempts to exceed the programmed current limit, it signalled to be in “overcurrent” and enter in a TRIP status. The output voltage is varied to keep the current below the programmed limit for a programmable TRIP time, then the channel is switched off. If TRIP is set to “constant current mode”, the channel behaves like a current generator. |
| Hardware VMAX | maximum output voltage can be set, via front panel potentiometer, at the same common value for all the board channels. VMAX value can be read out via software. |
Technical Specifications
- No. of Channels
16 Individual Floating (±500V isolation)
- Output Voltage
0 ÷ 250 V
- Max Current
- Low range: 100 µA
- High range: 1 mA
- Voltage Monitor Resolution
10 mV
- Current Set Resolution
20 nA
- Current Monitor Resolution
- Low range: 100 pA
- High range: 1 nA
- VMAX hardware
0÷250 V common for all the board channels
- VMAX hardware accuracy
± 2% of FSR
- VMAX software
0÷250 V settable for each channel
- VMAX software resolution
1V
- Ramp Up/Down
1÷50 Volt/sec, 1 Volt/sec step
- Ripple (@ max load with 10nf)
1 KHz ÷ 20 MHz - maximum: <5 mV pp
- typical: <3 mV pp
10 Hz ÷ 1KHz - maximum: <6 mV pp
- typical: <4 mV pp
- Voltage Monitor vs. Output Voltage
- typical: ±0.03 % ±0.05 V
- maximum: ±0.05 % ±0.1 V
- Voltage Set vs. Output Voltage
- typical: ±0.03 % ±0.05 V
- maximum: ±0.05 % ±0.1 V
- Accuracy Current Monitor vs. Output Current
- high range typical: ±0.5 % ±0.5 µA
- high range maximum: ±1% ±1 µA
- low range typical: ±0.5% ±0.05 µA
- low range maximum: ±1% ±0.1 µA
- Accuracy Current Set vs. Output Current
- high range typical: ±0.5 % ±0.5 µA
- high range maximum: ±1% ±1 µA
- low range typical: ±0.5% ±0.05 µA
- low range maximum: ±1% ±0.1 µA
- Output Connector
DB37 Multipin
Compare
Compare with High Voltage Power Supply.
Loading...
Ordering Options
| Code | Description |
|---|---|
| WA1619XAAAAA | A1619 - SYx527 H.V. Channels 250V 1mA - individual Floating (16CH) RoHS |
