Up to 12 kV Power Supply Boxes

Single Channel High Reliability, High Voltage Power Supply Boxes

Features

  • Single channel HV DC/DC converter in a compact box
  • Up to 12 kV output Voltage
  • Available with positive or negative polarity
  • SHV or LEMO HV output connectors
  • Remote control (Analog or Digital)
  • High efficency

Models

  • A7501B / A7505B
    • Temperature working range: -10°C ÷ 70°C
    • Designed for long working life in harsh environment
    • Assembly optimized for easy maintenance operation
  • A7512DB / A7526DB
    • Digital output voltage control
    • Internal memory for permanent storage of calibration and configuration
    • RS485 digital control
    • LEMO 00 connector for preamplifier power supply (A7512DB only)

Overview

This family is a line of low noise, single channel High Voltage DC/DC converters (up to 12 kV)  in a compact and easily mountable form factor.
In the astroparticle research field, in which large area experiment composed by detectors spread over a very large area are involved, the traditional multichannel approach become unfeasible and the necessity of a distributed solution become unavoidable.

This familiy provides a solution to these kind of needs without giving up to high performances and to the reliability of a remote control (analog or digital). With their high efficiency in a compact form factor these modules are suitable for large area experiments or embedded application.

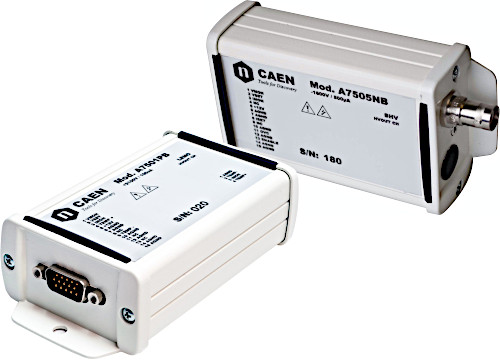

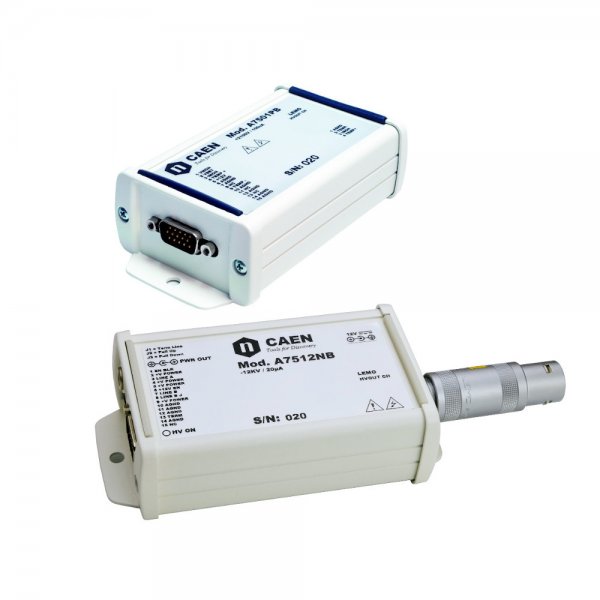

A7501B / A7505B  are solution designed for operating in challenging environmental conditions and high thermal excursions. They rely on the high efficiency PCB High Voltage power supply A7501 / A7505  embedded in a custom carrier.

In order to assure its functionality for long working periods under severe environmental conditions, several dedicated technical and electrical precautions have been implemented such as stress relief techniques on cabling and soldering points, electrical redundancies, PCB layout design, and use of specific materials to minimize the thermal expansion on PCB and housing mechanics.

These features make A7501B / A7505B  boxes ideal for Large Area experiments where the possibility of a prompt maintenance intervention is reduced.

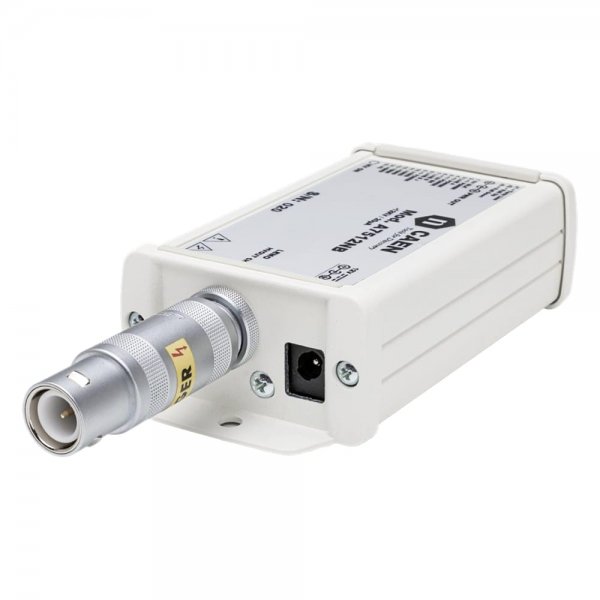

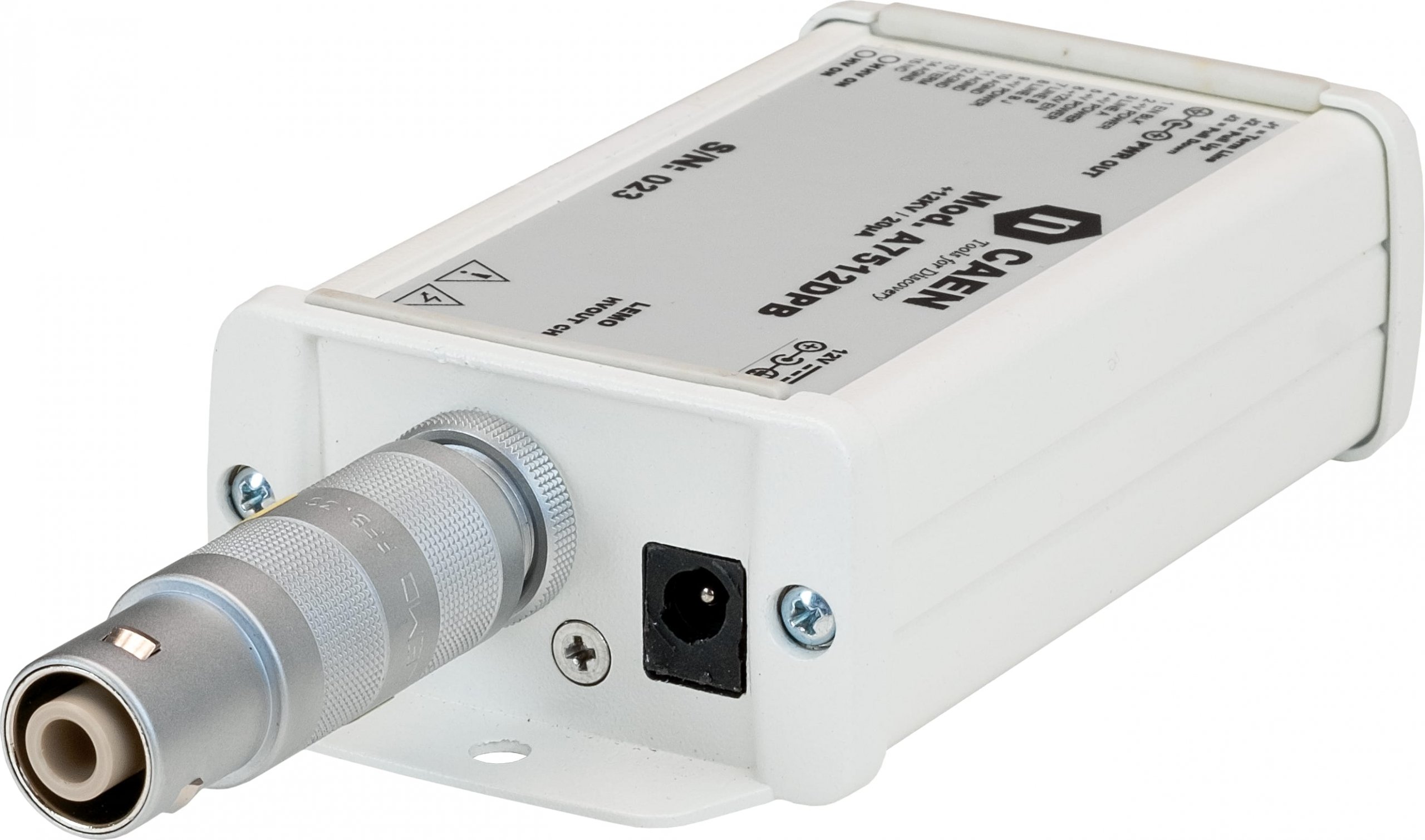

The A7512DB Power Supply Module is a compact solution to provide stable and noiseless power supply for single and multi-gap Resistive Plate Chamber (RPC) detectors.

The module houses a digital controlled high voltage channel that provides  a 12 kV maximum voltage and  20 μA maximum current. It is available with either positive or negative output voltage. HV output is delivered through LEMO HV connector.

Power supply control can be performed remotely, via RS485, that allows to build a daisy chain network of A75xxDB modules.
A7512DB houses also bias output through LEMO 00 connector for preamplifiers power supply. Three different options are available: 2.8 V / 3.3 V / 5 V (maximum output power: 3 W).

Models

Model Image Max Output V Max Output I Vout Control Operating temperature Ripple Typ. Connectors Features Actions

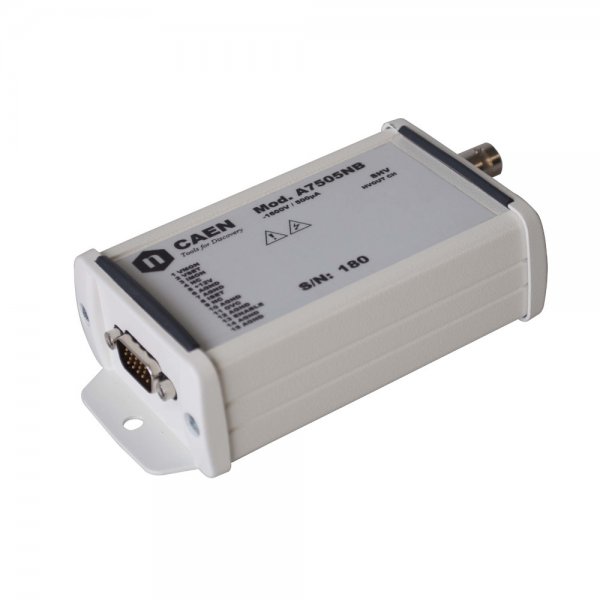

A7505B A7505B 1600 V 500 µA Regulated providing external Low voltage -10°C ÷ 70°C 5 mVpp SHV QUOTE

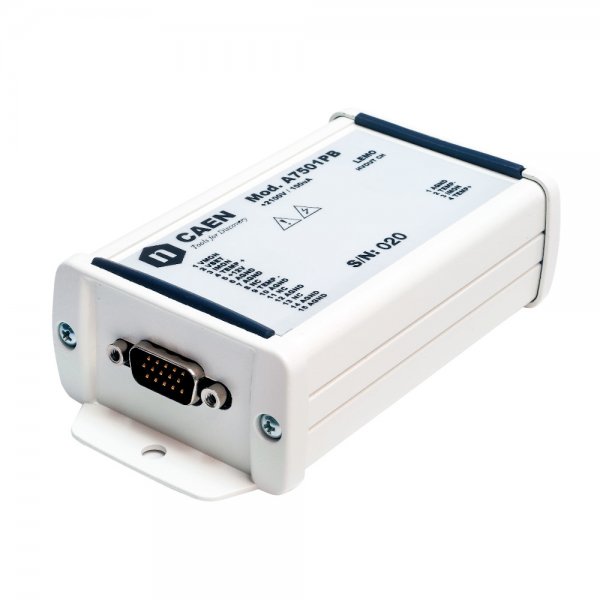

A7501B A7501B 2100 V 100 µA Regulated providing external low voltage -10°C ÷ 70°C 5 mVpp LEMO HV
(ERA.0S.250.CTL)
Imon /Temperature
remote inputs
QUOTE
A7512DB A7512DB 12000 V 20 µA Digital control / permanent calibration storage -20° C ÷ +45° C 30 mVpp @ 10 kV
50 mVpp @ 12 kV
LEMO HV
(FFB.3S.415.CPAC10W)
RS485 interface
bias output for preamplifiers
QUOTE

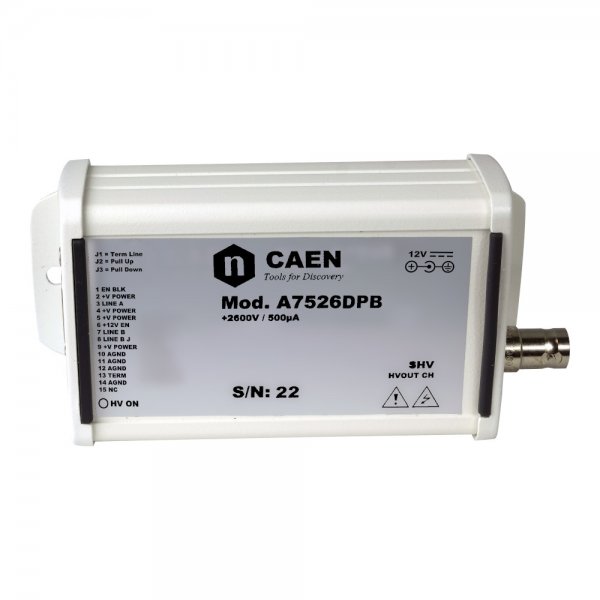

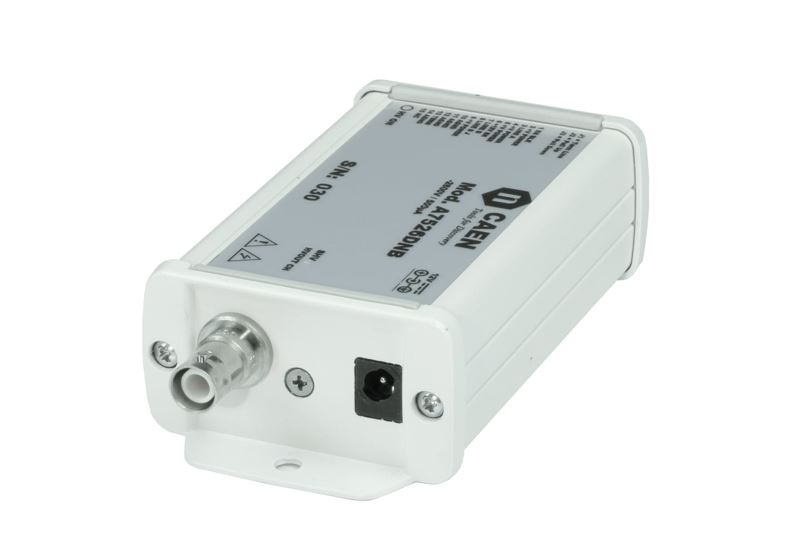

A7526DB A7526DB 2600 V 500 µA Digital control / permanent calibration storage -35° C ÷ +75° C 5 mVpp SHV RS485 interface QUOTE
