CPU Modules and Power Supply Units

A4528x CPU Modules - A453x Power Supply Units

Features CPU Basic Version

  • Communication interfaces
  • RESET control
  • INTERLOCK control
  • Status LEDs

Features Primary PSU – 600 W

  • Basic building block of the SY4527, SY5527, and
    SY4527LC
  • 400W version included with SY5527LC

Overview

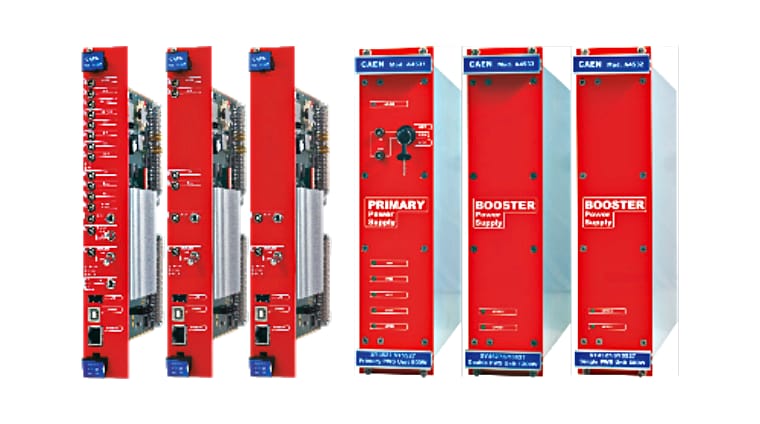

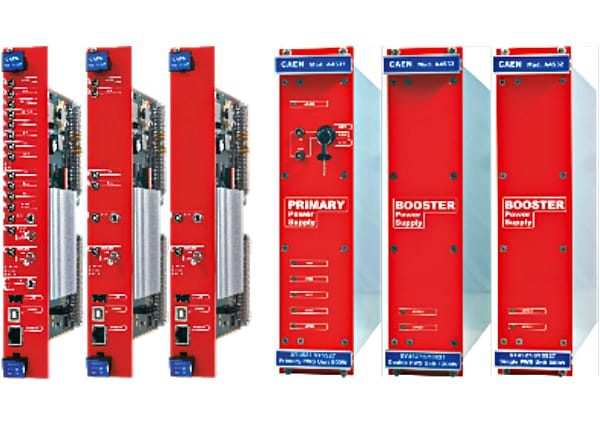

3 Different CPU Modules for SYx527: Basic, Advanced, Full.

Basic version

  • Communication interfaces
  • RESET control
  • INTERLOCK control
  • Status LEDs

Advanced version

  • Communication interfaces
  • RESET control
  • INTERLOCK control
  • Status LEDs
  • Beam handshake management connectors (CH-ON, GEN, VSEL, ISEL)

Full version

  • Communication interfaces
  • RESET control
  • INTERLOCK control
  • Status LEDs
  • Beam handshake management connectors (CH-ON, GEN, VSEL, ISEL)
  • CHK PASS, RST FLAG, OVV, UNV, OVC, TRIP, KILL and HV SYNC connectors
  • ENABLE control section
  • Front panel Fan speed control

3 Different Powe Supplies for SYx527: Primary, Optional Single, Optional Double.

Primary PSU – 600 W

  • This is the basic building block of the SY4527, SY5527, and SY4527LC
  • 400W version included with SY5527LC

Optional Single PSU – 600 W

  • This booster power supply adds 600W of power in a single slot module to either the SY4527 or SY5527 Mainframe System
  • This is an optional item which may be ordered separately

Optional Double PSU – 1200 W

  • This booster power supply adds 1200W of power in a single slot module to either the SY4527 or SY5527 Mainframe System
  • This is an optional item which may be ordered separately



Note: In SY4527 the max number of PSU which can be installed is 4 (1 Primary and 3 Optional). In case the SY4527 is equipped with LCD display the max number is 2 (1 Primary and 1 Optional). In SY5527 the max number of PSU which can be installed is 2 (1 Primary and 1 Optional).

Universal Multichannel System - Mainframes

Modularity, Compatibility, Connectivity, Usability and Solidity are the keywords of the system design. The Mainframes have been specifically designed to power all detector technologies found in modern Physics Experiments, such as photomultipliers, wire chambers, streamers tubes, silicon detectors and others.

The systems are modular, flexible and match not only the requirements of major experiments with large number of channels but also the practical needs of test laboratories, where simple manual operations on a limited number of channels are often desired.

Mainframes

Immagine esplicativa

Software

A complete set of Software Tools is available (free download) to control CAEN Universal Multichannel Power Supply Systems, from low level libraries to graphical application software:

CAEN, in collaboration with CERN, has developed an OPC server which allows control of its power supply systems by any OPC compliant client application.
HiVoCS HiVoCS is a Web Interface available on any SY4527-SY5527 CPU. This Interface can be accessed directly via browser without installing any additional software.
EPICS IOC Mainframes CPUs integrates an EPICS Input / Output Controller (IOC) that provides access to the Process Variables using the Channel Access Protocol.
CAEN HV Wrapper Library It is a set of ANSI C functions bundled in a library, providing the software developer an unified software interface for the control of all the CAEN Power Supply products
GECO2020 CAEN General Control SW for High Voltage Boards and Systems. it can manage and control CAEN HV power supplies in any form factor as if they were an unique device.
