V538A

8 Channel NIM-ECL/ECL-NIM Translator

Features

  • 8 independent NIM to ECL/NIM and ECL to NIM/ECL channels
  • NIM and ECL fan-out of 2
  • 300 MHz maximum operating frequency
  • COMMON IN input with a fan-out of 16 (both NIM and ECL)
  • I/O delay <5 ns

Overview

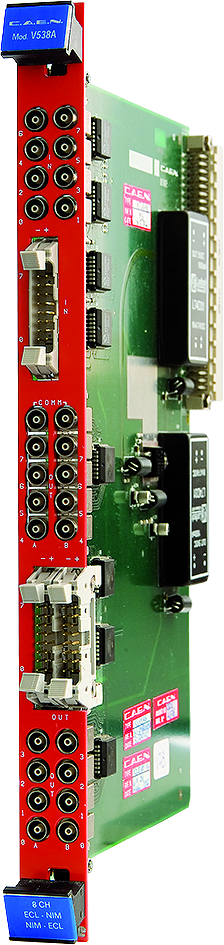

The CAEN Mod. V538A is a 1-unit wide VME module housing 8 independent logic level translators.
Each of the 8 channels accepts a NIM or ECL signal and provides two NIM and two ECL outputs (OUT 0÷7 A, B). The NIM and ECL inputs of each channel are ORed prior to fan-out.
The maximum operating frequency is 300 MHz.
Two front panel input bridged connectors accept a COMMON IN NIM signal, which allows the use of the module as a fan-out of 16 NIM and 16 ECL signals.

Technical Specifications

Packaging

1-unit wide 6U VME module

Inputs
  • IN 0-7 NIM: NIM logic level, 50 Ω impedance, Reflections < 3%, for input risetimes > 2 ns
  • IN 0-7 ECL: Std. ECL logic levels, 110 Ω impedance
  • Reflections < 10%, for input risetimes > 2 ns
  • COMM: Std. NIM Level, high impedance, Reflections < 10%, for input risetimes > 2 ns
Outputs

OUT 0-7 A, B NIM: Std. NIM levels on 50 Ω impedance, Risetime: < 2 ns; OUT 0-7 A, B ECL: Differential ECL levels on 110 Ω impedance, Risetime: < 2 ns

Max. frequency
  • NIM input: 300 MHz (50% duty cycle)
  • ECL input: 250 MHz (50% duty cycle)
Min. signal FWHM

3 ns for NIM/ECL input/output

I/O delay
  • ECL IN to NIM OUT: 2.5 ns;
  • ECL IN to ECL OUT: 2.5 ns;
  • NIM IN to ECL OUT: 3.5 ns;
  • NIM IN to NIM OUT: 3.5 ns COMMON IN to NIM OUT: 4 ns;
  • COMMON IN to ECL OUT: 4 ns

Compare

Compare with Translators.

Loading...

Accessories

A954
Cable assembly 2.54mm 34 pin female to two 2.54mm 16 pin female - 50 cm

Ordering Options

Code Description
WV538XBAAAAA V538AB - 8 Channel NIM-ECL/ECL-NIM Translator (noJAUX)   RoHS
