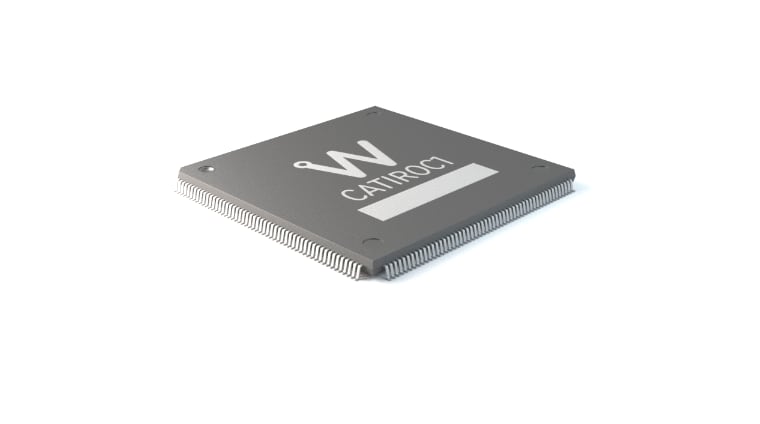

CATIROC 1

Large-Photomultiplier-Arrays Read-Out Chip

Features

    • Optimized for PMT, PMT arrays
    • Number of channels: 16
    • Type of measurement: Self triggered, Charge, Time
    • Outputs: 16 trigger outputs, 16 shaper output, 1 or of the 16 trigger output, 1 serialized digital data output (50bits/channel)
    • Input Polarity : Negative
    • Main performances : Energy measurement, Time stamping, Full system-on-chip, No dead time
3 Years Warranty
placeholder
placeholder

Overview

CATIROC IS DEPRECATED – NOT RECOMMENDED FOR NEW DESIGN Please consider Poproc for new design

Catiroc 1 is a 16-channel front-end ASIC designed to readout photomultiplier tubes (PMTs) in large scale applications such as water Cerenkov experiments. The concept of the ASIC is to combine an auto-trigger chip to 16 PMTs to obtain an autonomous macro-cell for large area of detection.
An adjustment of the gain of each channel compensates for the gain variation of the PMTs and allows using only one HV cable for the 16 PMTs. In the ASIC, the 16 channels are totally independent. In each channel, the auto-trigger starts the charge and time measurements which are then converted and stored. Only the hit channels are read out by one serialized output. The time measurement is done by a 26-bit counter at 40 MHz for the coarse time and a Time to Amplitude Converter (TAC) for the fine time, giving a resolution of 200ps RMS. The charge measurement is done by a dual gain preamplifier followed by a shaper with variable shaping times (25 ns, 50 ns or 100 ns). Charge and fine time values are converted by a 10 bit ADC.
Moreover Catiroc 1 can be used as an analogue front-end ASIC for PMTs. The 16 triggers and 16 shapers output can be used in an application specific optimized front-end board.

Technical Specifications

Detector Read-Out

PMT, PMT array

Number of Channels

16

Signal Polarity

Negative

Sensitivity

Trigger on one third of photo-electron on each channel

Timing Resolution

200 ps RMS on single photo-electron

Dynamic Range
  • 400 photo-electrons (106 PMT gain)
  • Integral Non Linearity 1% up to 400 p-e
Packaging & Dimension

TQFP 208 28x28mm

Power Consumption Power supply: 3.3V

21 mW / channel – supply voltage 3.3V

Inputs

16 voltage inputs

Outputs
  • 16 trigger outputs
  • 16 shaper output
  • 1 or of the 16 trigger output
  • 1 serialized digital data output (50bits/channel)
Internal Programmable Features
  • 16 channel gain adjustment (16x8bits)
  • trigger and gain threshold adjustment (2x10bits)
  • charge measurement tuning
  • 16 trigger masks
  • channel by channel trigger output enable
Evaluation systems

Evaluation board : Available

Compare

Compare with Weeroc chip.

Loading...

Ordering Options

Code Description
WWCATIROC1QA CATIROC 1 - Large photomultiplier arrays read out chip - QFP (Quad Flat Pack)
