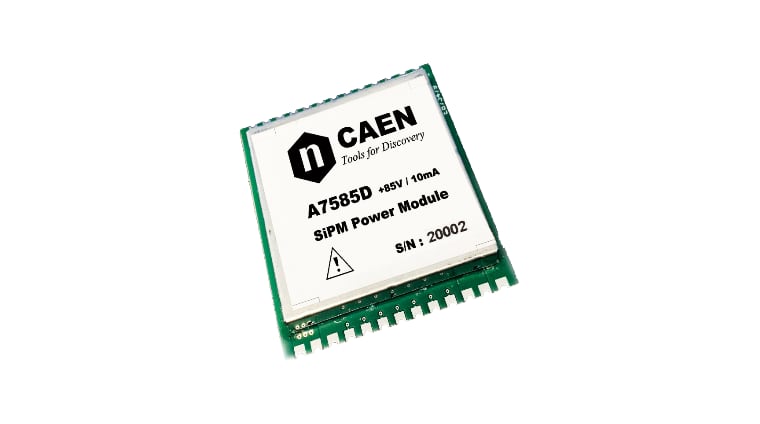

A7585D/DU
1 Ch. 85 V/10 mA Digital Controlled SiPM Power Supply (with USB) - PCB Mount
Features
- Single channel PCB mount High Voltage Power Supply
- A7585D: SMD version
- A7585DU: Through-Hole version
- 20÷85 V (10 mA) output range
- Suitable for large SiPM matrix
- Analog and Digital Control (UART and I2C)
- Very low ripple (<0.2 mVpp typical)
- High resolution on voltage and current monitor
- Built-in Temperature Compensation with programmable
coefficients - ZEUS Control Software for easy management of the module
- Open-source C library for I2C interfacing of multiple devices available on GitHub repository
- Python Library available on GitHub repository
- Interfaces: UART, I2C, USB (A7585DU Only)
Overview
The A7585D/A7585DU are high voltage regulators specifically designed for SiPM bias. Each has a built in temperature compensation controller with programmable coefficient. The module can be digitally controlled by UART and I2C. A7585DU moreover integrates a USB to UART bridge and it could be powered from USB. Output voltage could be also controlled proportionally to an analog input.
A7585D/A7585DU can provide up to 10 mA and the output voltage could be regulated between 20V and 85V with a resolution of 1 mV. Moreover, the ZEUS control software is provided for free; ZEUS allows to monitor and control multiple modules at same time.
Zeus Software
ZEUS is a Windows compatible software that allows to control multiple A7585DU modules using USB connection. The software is based on a user friendly GUI that allows the parameters configuration and the data logging on file. It integrates real-time plot capabilities (voltage, current and temperature) with the possibility to superimpose measurements from several modules.
ZEUS software is the simplest way to program temperature LUT compensation.
Moreover, a Python Library is available as well.
The Unit is developed in close collaboration with NUCLEAR INSTRUMENTS SRL.
Technical Specifications
- Package
A7585D: SMD
A7585DU: Through-hole
- Dimensions
35.6 x 42.1 x 5.4 mm3
44 x 44.5 x 13.3 mm3
- No.of channels
1
- Output Voltage
20÷85 V
- Output Current
0÷10 mA (Max.: 500 mW)
- Max Output power
0.5W ± 10%
- Vset resolution
1 mV
- Vout vs. Vset precision
0.05%+30 mV
- V monitor
0÷85 V
- Vmon vs. Vout precision
0.1%+20 mV
- Imon resolution
High range: 650 nA
Low range: 100 nA
- Imon vs. Iout accuracy
High range: ±0.4% ±4μA
Low range: ±0.2%±2μA
- Ramp up/down
0.1-10000 V/s (step: 1 mVs)
- Ripple
0.2 mVpp (DT5485PB – Vout = 70V, no load, 10 μs integration time, USB disconnected)
- USB interface (A7585DU)
USB connection and power supply input / Micro USB;
- Supply Voltage
A7585D: 6÷28 V (pin 24,25 Vs)
A7585DU:
USB disconnected: 6÷28 V (pin 16 Vs)
USB connected: Vs > 6V module powered from Vs, otherwise USB powered.
Compare
Compare with PCB HV Power Supplies.
Loading...
Ordering Options
| Code | Description |
|---|---|
| WA7585DUXAAA | A7585DU - USB Controlled Power Supply for SiPM +85V 10mA RoHS |
| WA7585DXAAAA | A7585D - Digital Controlled Power Supply for Sipm +85V 10mA RoHS |
Related Products

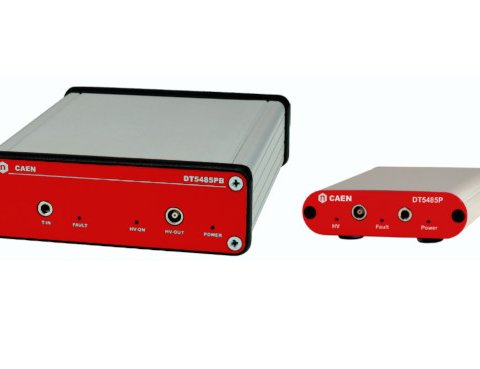

DT5485P/PB
Desktop +85 V/10 mA Digital Controlled SiPM Power Supply with USB
