Hexagon Family

Single and Dual 32k Digital MCA & Pulse Processor

  • Single and Dual 32k Digital MCA & Pulse Processor
  • Fully supported by Quantus High Performance Quantitative Spectrometry Software
  • Provides Pulse Height Analysis (PHA with MSS* and coinc/antocoinc), Time-stamped Lists and Multichannel Scaling (MCS*) modes
  • Ideally suited for high resolution spectroscopy applications utilizing HPGe, CZT, Silicon, and scintillation detectors such as NaI and LaBr3
  • Supports Resistive Feedback and Transistor Reset preamplifiers as well as PMT anode signals
  • On-board SSD memory supports List and Spectrum data storage capability (up to 200,000+ spectra)
  • Web interface for quick retrieval of board details, firmware upgrading, and output data file browsing

(*) Coming Soon

Overview

Hexagon is a high precision 32k MCA available in single and dual input channel versions. This compact, high performance desktop MCA includes features such as an integrating input stage for signal conditioning, a fast analog-to-digital converter (ADC), digital signal processing algorithms, High Voltage and Preamplifier outputs for detector bias and preamp power.

Hexagon is ideally suited for applications using high energy resolution semiconductor detectors such as HPGe, Silicon, CZT as well as scintillation detectors such as NaI and LaBr3. It can manage both positive and negative signals from resistive feedback or transistor reset preamplifier detectors as well as signals coming from PMT anodes

Operating Modes

Hexagon can be configured to operate in Pulse Height Analysis (PHA) acquisition mode, in Multichannel Scaling (MCS) acquisition mode, or in both PHA and MCS modes simultaneously. Multiple PHA spectra can be collected using Multispectral Scaling (MSS) mode with no data loss when switching to a new spectrum. The Time-Stamped List mode permits time and energy events to be saved either to on-board memory or to the host PC for offline analysis and post-processing. Analog input signals and internal digital filter outputs can be inspected via the Signal Inspector mode. Additionally, Compton/AntiCompton data acquisition is supported by taking advantage of the 2-input channel version.

Immagine esplicativa
Immagine esplicativa
Immagine esplicativa
Immagine esplicativa
Immagine esplicativa
Immagine esplicativa

HV and LV Power Supply

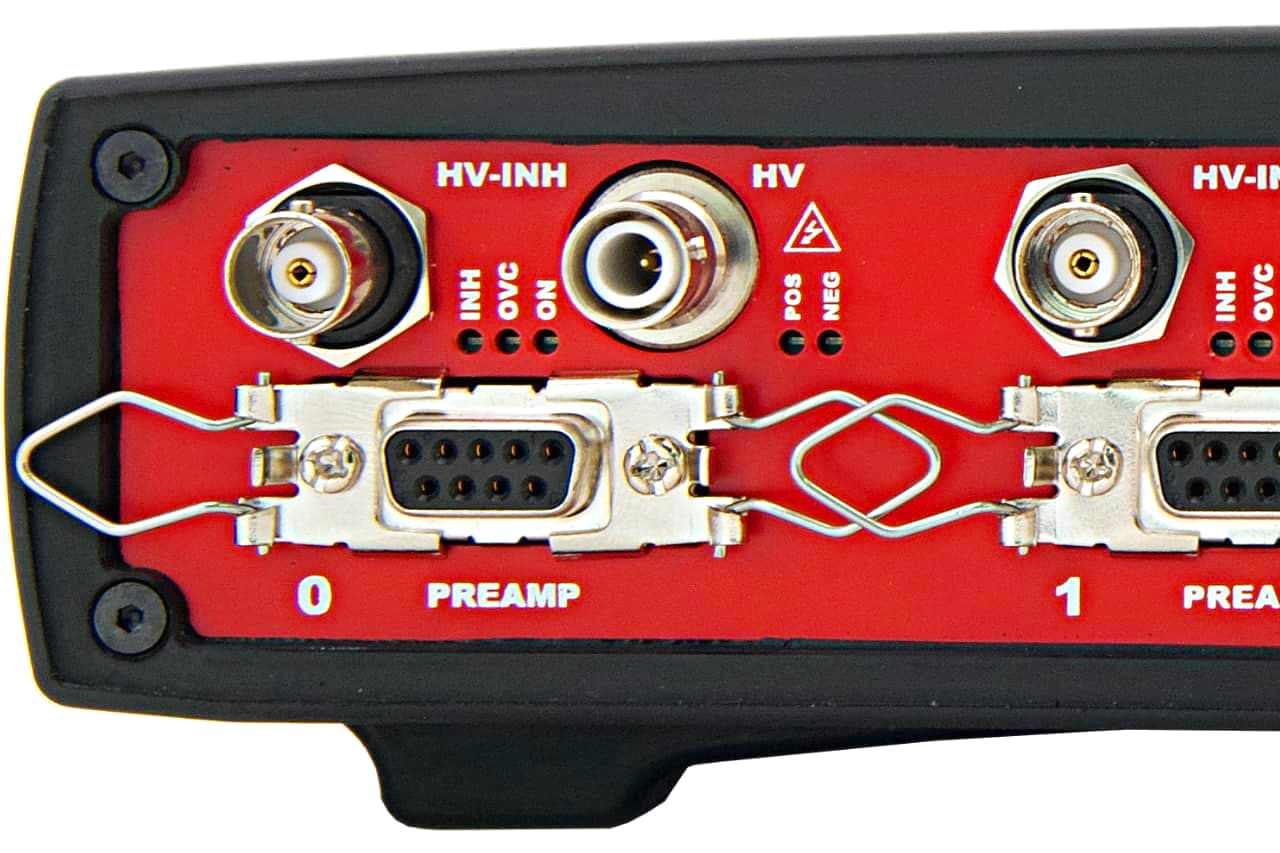

Hexagon can provide HV bias for up to two detectors. Three ranges of bias voltage and current, which are software controlled and hardware protected, allow the user to tailor the output V/I to specific detector types such as PMT (2 kV / 1 mA), HPGe (5 kV / 30 μA), and Silicon (500 V / 50 μA). The 2-input channel version of Hexagon allows the user to select the polarity configuration upon ordering; Positive-Positive, Negative- Negative, or Mixed (Positive-Negative). The 1-input channel version of Hexagon is provided with an HVPS configuration which includes 1-channel Positive Polarity and 1- channel Negative Polarity. HV inhibit is supported with both positive and negative polarity. Hexagon also integrates low voltage outputs (±12 V / 100 mA and ±24 V / 50 mA) to power preamplifiers. Detector Temperature and Nitrogen Levels may be monitored via external sensor interface.

I/O Equipment and Additional Features

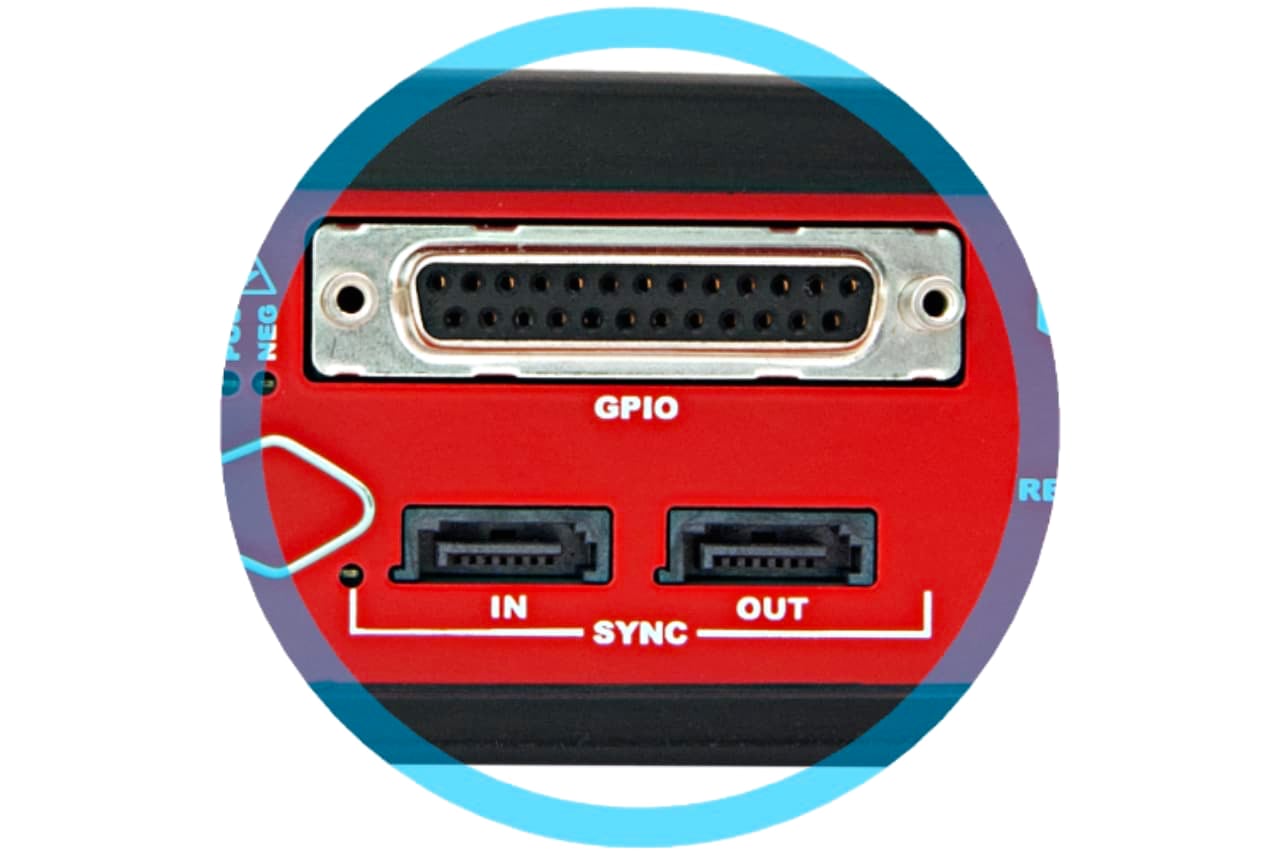

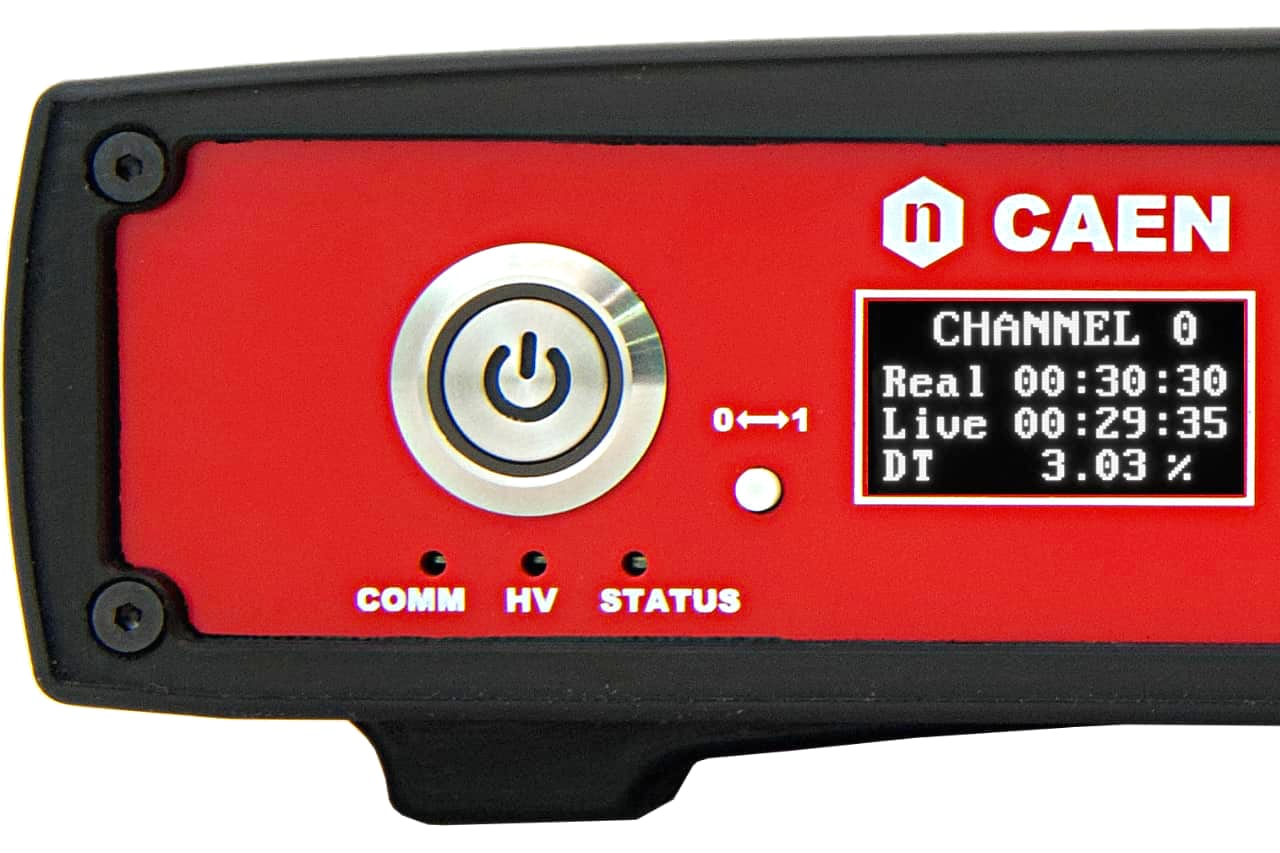

Hexagon is equipped with I/O connectors which support several features beyond the standard MCA functionality. A DB25 I/O connector supports PHA Start/Stop, SCA, MCS, Coincidence/AntiCoincidence, Acquisition Start/Stop, ICR, Run Status, Sample Changer, and Sample Ready signals. The BNC connectors are reserved for Transistor Reset Preamp (TRP) inhibit, where the inhibit takes place on an external digital signal and can be extended in time via programming. Two SATA connectors allow for very precise multi-board synchronization, time stamp alignment, and system building via a simple daisy chain. Front Panel LED indicators inform the user as to board and I/O status, polarity of the power supply, and multi-board sync status. An OLED display provides real-time statistics on ICR, OCR, Real/Live/Dead Time, as well as details on the HVPS channel output.

Immagine esplicativa
Immagine esplicativa

Connectivity

Hexagon may be controlled with a point-to-point direct connection through the USB2.0 link and with a remote network connection by the Ethernet 10/100T port. The module also features a web interface that supports basic operations (sans spectroscopy software) by simply opening a web browser. The web browser is a quick and useful tool for finding basic board information (e.g. model type, serial number, firmware version, CPU load averages, real memory occupancy), for retrieving files saved on the onboard memory, for setting operational functions for each run (e.g. order, cut, copy/paste files, create and delete directories, user rights, etc.), and for managing network settings and upgrading firmware.

Quantus Software

Quantus is CAEN high performance software to make Quantitative Spectrometry with Hexagon digital MCA. It is powerful and flexible enough to support an enormous range of sample types and detector geometries, and can analyze any recorded gamma-ray spectrum for radionuclide identification and quantification.

Thanks to its multi-document design, Quantus can manage simultaneous multi-spectrum analyzation as well as multi-detector data acquisition.

More info

Immagine esplicativa
Immagine esplicativa
Immagine esplicativa
Immagine esplicativa

Models

Model Image Inputs Coupling Channels No. of LV Preamp. Outputs No. of HV Outputs HV Power Output Acquisition Modes Actions
Hexagon Hexagon 2/1 DC/AC 32 K 2 2 ±5 kV/30 μA,
±2 kV/1 mA,
±500 V/50 μA,
selectable
Signal Inspector, List Mode, PHA, Coincidence, (Coming Soon: MSS, MCS, SCA) QUOTE
