Mainframe CPU Modules

A4528x CPU Modules

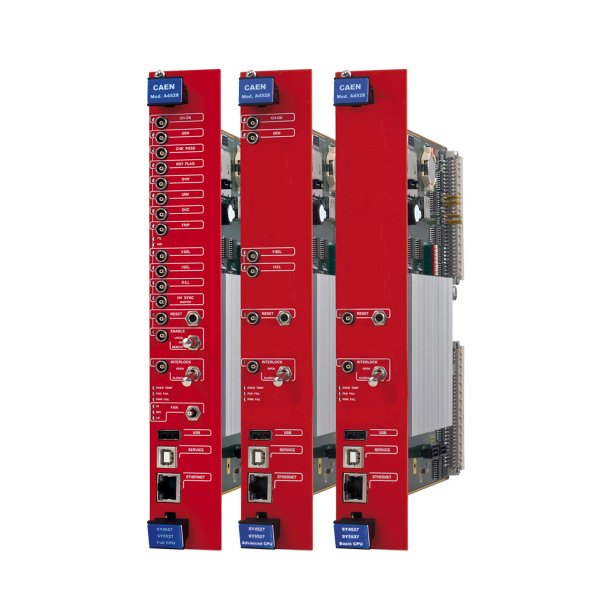

The CPU controller is offered in three versions: BASIC, ADVANCED and FULL:

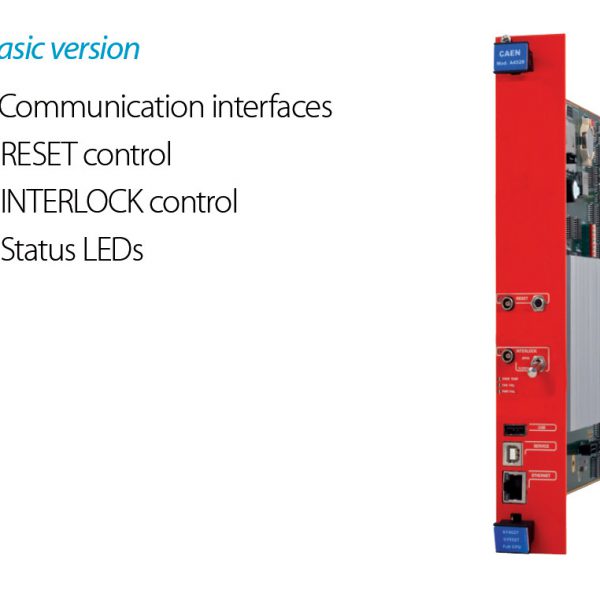

  • The BASIC version provides communication interface, RESET control, INTERLOCK control, and STATUS LED indicators.

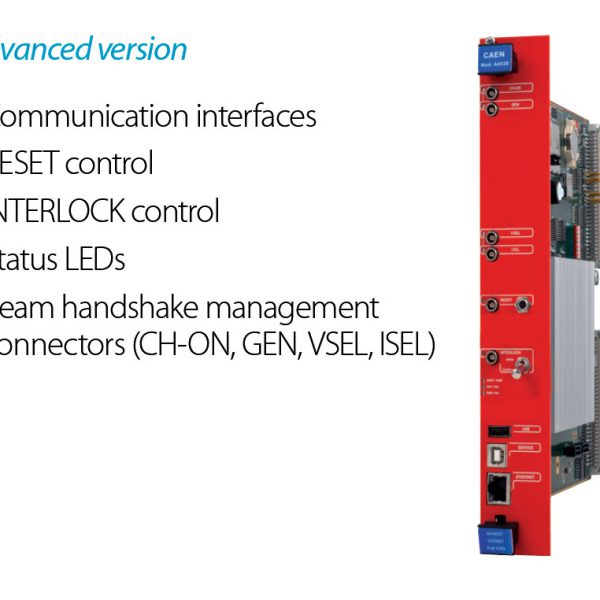

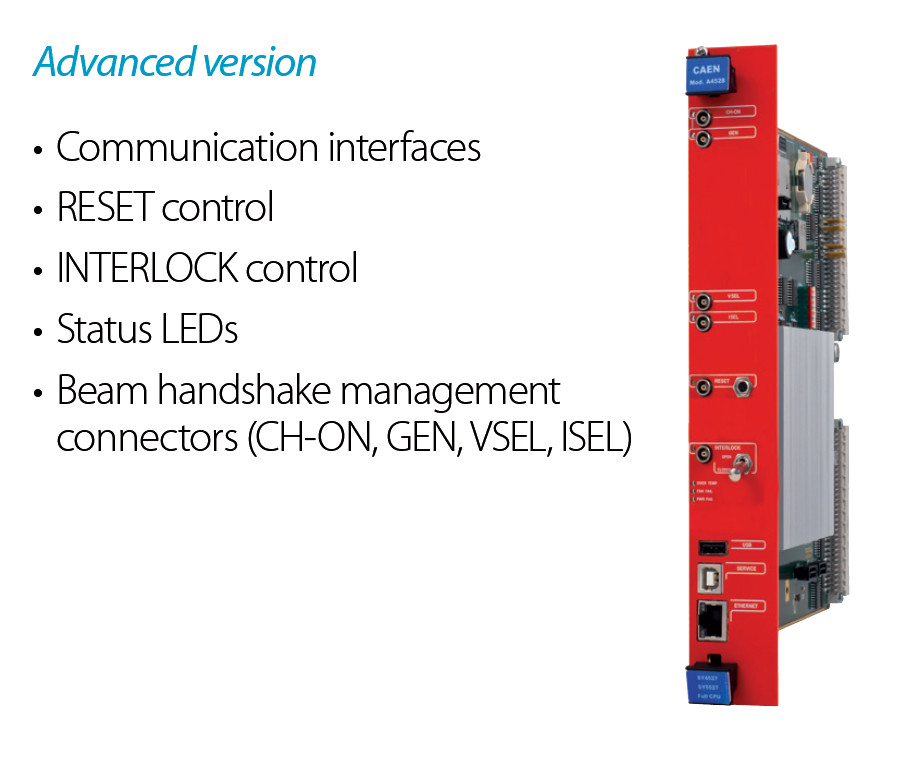

  • The ADVANCED builds upon the above by adding beam handshake management connectors (CH-ON, GEN, VSEL, ISEL).

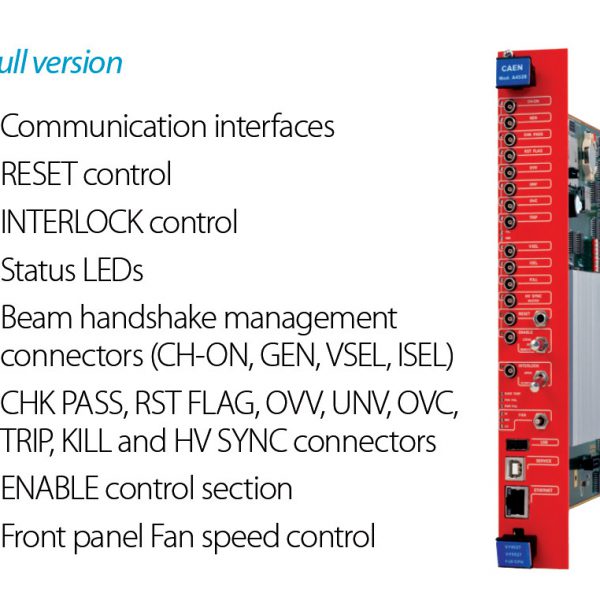

  • The FULL version provides a complete array of panel connectors, an ENABLE control section, and fan speed control.

Overview

The CPU controller offered in three versions: Basic, Advanced and Full.

The Basic version provides communication interface, RESET control, INTERLOCK control, and STATUS LED indicators; the Advanced builds upon the above by adding beam handshake management connectors (CH-ON, GEN, VSEL, ISEL). The Full version provides a complete array of panel connectors, and ENABLE control section, and fan speed control.

Full Version Advanced Version Basic Version
Communication Interfaces ✔️ ✔️ ✔️
Reset Control ✔️ ✔️ ✔️
INTERLOCK control ✔️ ✔️ ✔️
Beam handshake management connectors (CH-ON, GEN, VSEL, ISEL) ✔️ ✔️
Status LEDs ✔️ ✔️ ✔️

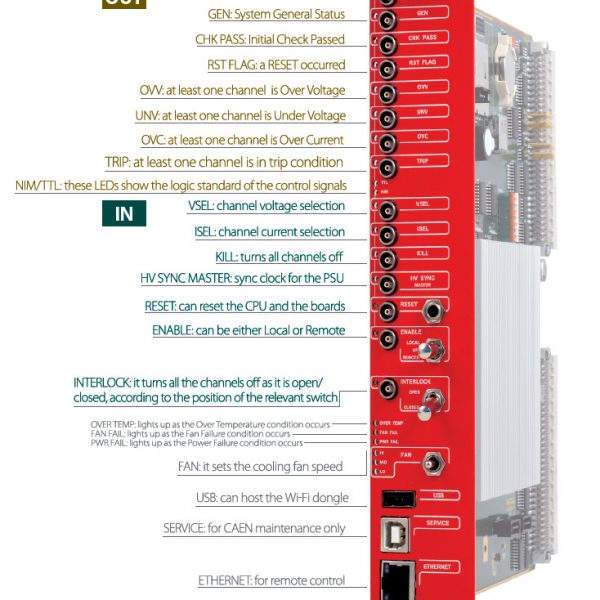

CHK PASS, RST FLAG, OVV, UNV, OVC, TRIP, KILL and HV SYNC connectors ✔️
ENABLE control section ✔️
Front Panel Fan speed control ✔️

Universal Multichannel System - Mainframes

Modularity, Compatibility, Connectivity, Usability and Solidity are the keywords of the system design. The Mainframes have been specifically designed to power all detector technologies found in modern Physics Experiments, such as photomultipliers, wire chambers, streamers tubes, silicon detectors and others.

The systems are modular, flexible and match not only the requirements of major experiments with large number of channels but also the practical needs of test laboratories, where simple manual operations on a limited number of channels are often desired.

Mainframes

blank

Software

A complete set of Software Tools is available (free download) to control CAEN Universal Multichannel Power Supply Systems, from low level libraries to graphical application software:

blank
CAEN, in collaboration with CERN, has developed an OPC server which allows control of its power supply systems by any OPC compliant client application.
blankHiVoCS HiVoCS is a Web Interface available on any SY4527-SY5527 CPU. This Interface can be accessed directly via browser without installing any additional software.
blankEPICS IOC Mainframes CPUs integrates an EPICS Input / Output Controller (IOC) that provides access to the Process Variables using the Channel Access Protocol.
blankCAEN HV Wrapper Library It is a set of ANSI C functions bundled in a library, providing the software developer an unified software interface for the control of all the CAEN Power Supply products
blankGECO2020 CAEN General Control SW for High Voltage Boards and Systems. it can manage and control CAEN HV power supplies in any form factor as if they were an unique device.
