781 MCA Family

Dual / Quad Digital Multichannel Analyzer

Features

  • Dual or Quad independent 16k digital MCA available in desktop and NIM form factors
  • Dedicated to high resolution gamma ray spectroscopy with HPGe detectors
  • Digital oscilloscope function for an easy setup and signal monitoring
  • Software adjustable coarse and fine gain
  • Features Digital Pulse Processing for PHA, providing energy and time stamp in list mode
  • Software adjustable digital shaping filter, baseline restoration
  • On-line pile-up rejection and software dead time evaluation
  • Suited for high count rate applications
  • Configurable coincidence or anti-coincidence of signals in the analog inputs
  • USB 2.0 and Optical Link communication interfaces
  • Drivers, libraries and API for Windows and Linux 32/64-bit
  • MC2Analyzer software to manage the acquisition and perform basic spectrum analysis

Overview

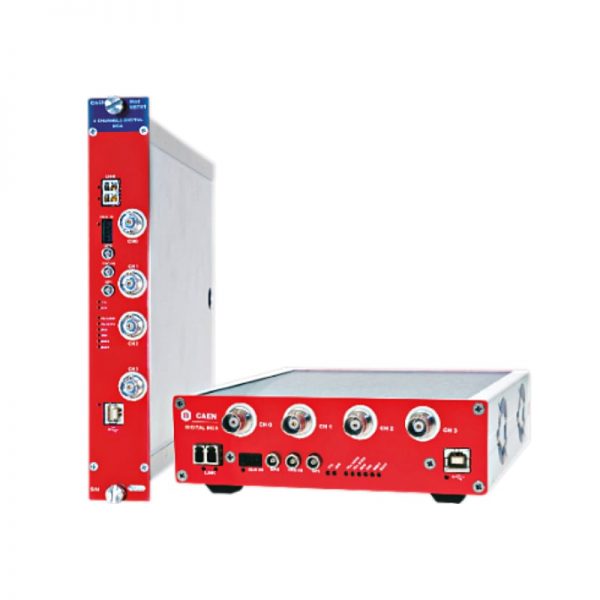

The 781 MCA family is composed by compact, stand-alone Dual or Quad independent 16k digital MCA, available in Desktop and NIM form factors.

They are designed for high energy resolution semiconductor detectors, like HPGe and Silicon detectors with resistive feedback Charge Sensitive Preamplifiers.

The 781 MCA family integrates advanced firmware algorithms operating Digital Pulse Processing for Pulse Height Analysis (PHA). The processing algorithms can be easily adapted to different detectors and application ensuring effective data analysis even at high count rates. It provides advanced tools for configuring baseline restoration and pile-up rejection. Thanks to the multiple input simultaneous acquisition, the module is able to manage coincidence and anti-coincidence logic between detectors, allowing the user, for example, to easily take advantage of background rejection or anti-Compton techniques.

These MCAs can provide at the same time energy, time stamp and the digitized pulse in a configurable time window (e.g. including the rising edge region) in order to perform further oine analysis. Acquisition settings and basic mathematical analysis are performed through the new MCAnalyzer software, providing energy spectra with up to 16k channels, which can be exported and imported in ASCII or N42.42 compliant files. CAEN provides moreover drivers for the supported communication interfaces, configuration software tools, C and LabVIEW libraries (CAENComm, CAENDigitizer, CAENDPP), demo applications and utilities.

Models

Model Image Inputs Coupling Channels Ports Actions

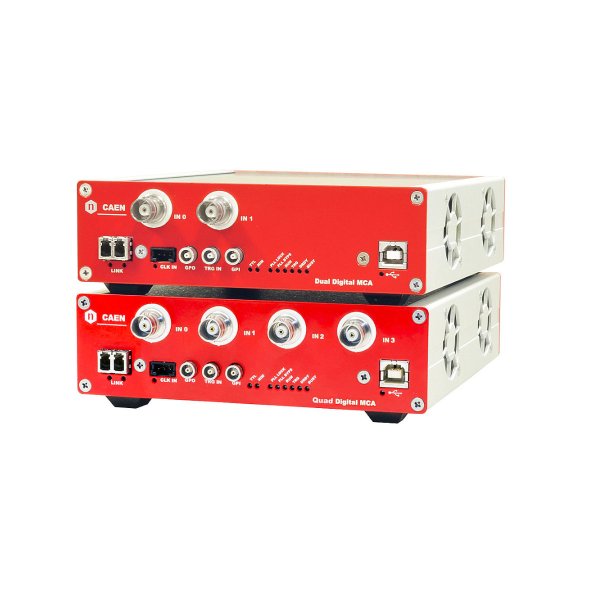

DT5781 DT5781 4/2 DC 16 K USB 2.0, Optical Link QUOTE

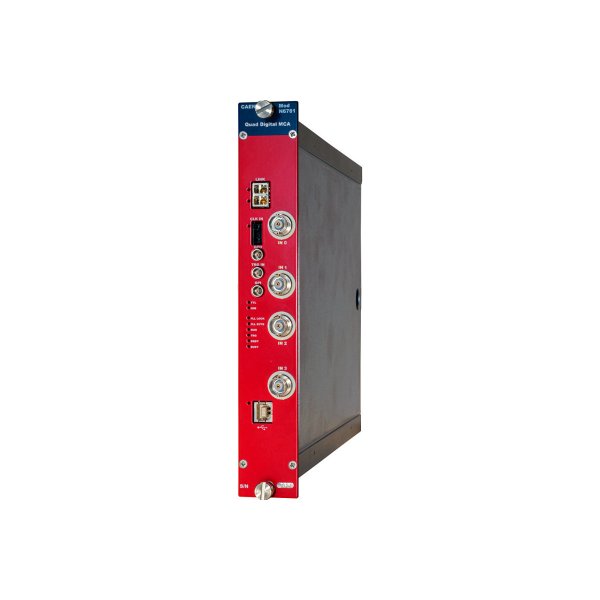

N6781 N6781 4/2 DC 16 K USB 2.0, Optical Link QUOTE
